Transaxles

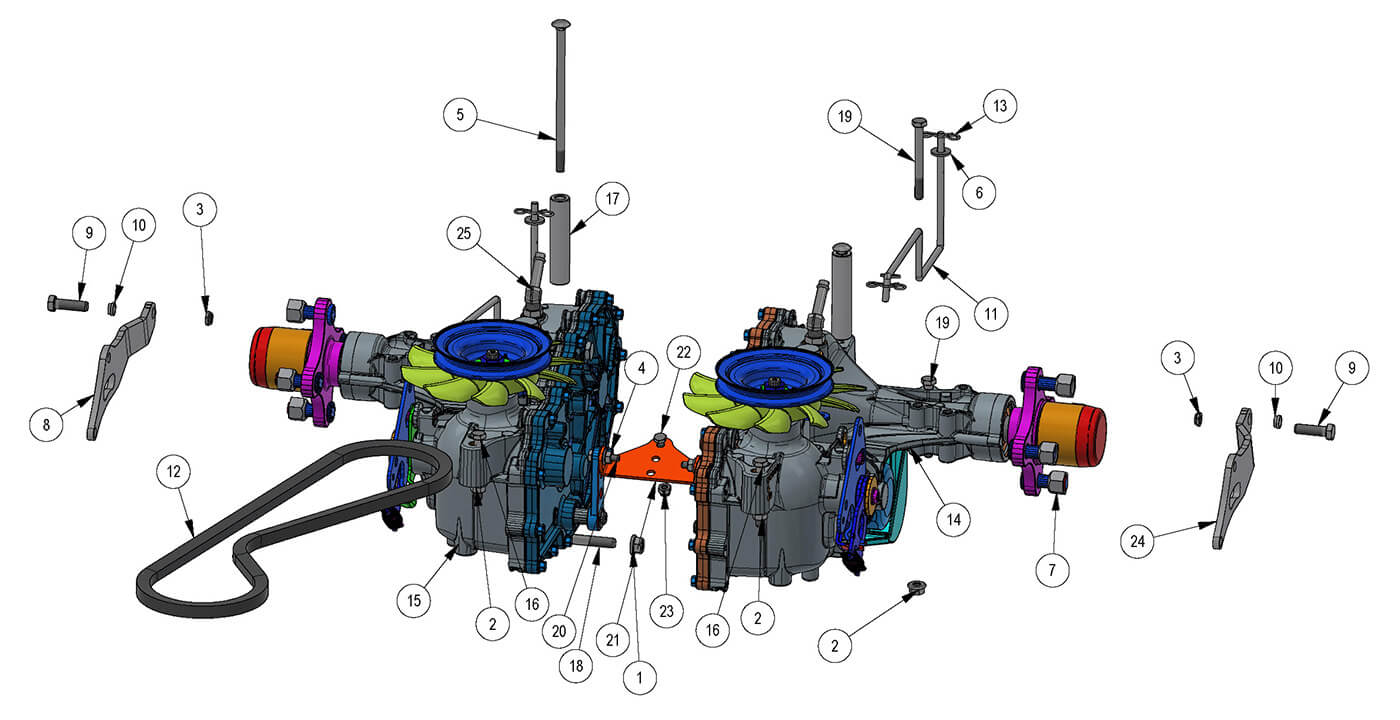

Parts Index
- 1 3/8 Nylock Flange Nut (Qty 2)
- 2 5/16-18 Nylon Flange Nut (Qty 8)
- 3 5/16-18 Nylock Jam Nut (Qty 2)
- 4 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 5 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 6 1/4 USS Flat Washer Zinc (Qty 4)
- 7 Acorn Lug Nut (Qty 8)
- 10 Drive Arm Transaxle Spacer (Qty 2)
- 11 2019 Stand On Neutral Release Rod (Qty 2)
- 12 2020 Renegade Pump Belt (Qty 1)
- 13 Bow Pin (Qty 4)
- 14 2023 Revolt SD LH Transaxle (Qty 1)
- 16 5/16 x 2 1/2 Bolt (Qty 2)
- 17 2017 Transaxle Spacer (Qty 2)
- 18 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 19 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 20 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 21 2020 36" Brake Bracket--Orange (Qty 1)
- 22 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 23 1/4-20 Nylon Insert Locknut Zi (Qty 1)
- 25 ZT Fitting, 3/8 x 3/8 45 Degree (Qty 2)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
3#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
4#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
5#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
6#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
7#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
10#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
11#028-0071-00
2019 Stand On Neutral Release Rod
Qty Used: 2Regular price $24.99 USDRegular priceUnit price per
-
12#041-8001-00
2020 Renegade Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
-
14#050-6002-02
2023 Revolt SD Left
Qty Used: 1Regular price $819.99 USDRegular priceUnit price per
-
16#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
17#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
18#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
19#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
20#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
No sequence found for SKU:
2020 36" Brake Bracket--Orange
Regular price $0.00 USDRegular priceUnit price per
-
22#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
23#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
25#024-1200-00
ZT Fitting, 3/8 x 3/8 45 Degree
Qty Used: 2Regular price $18.63 USDRegular priceUnit price per
