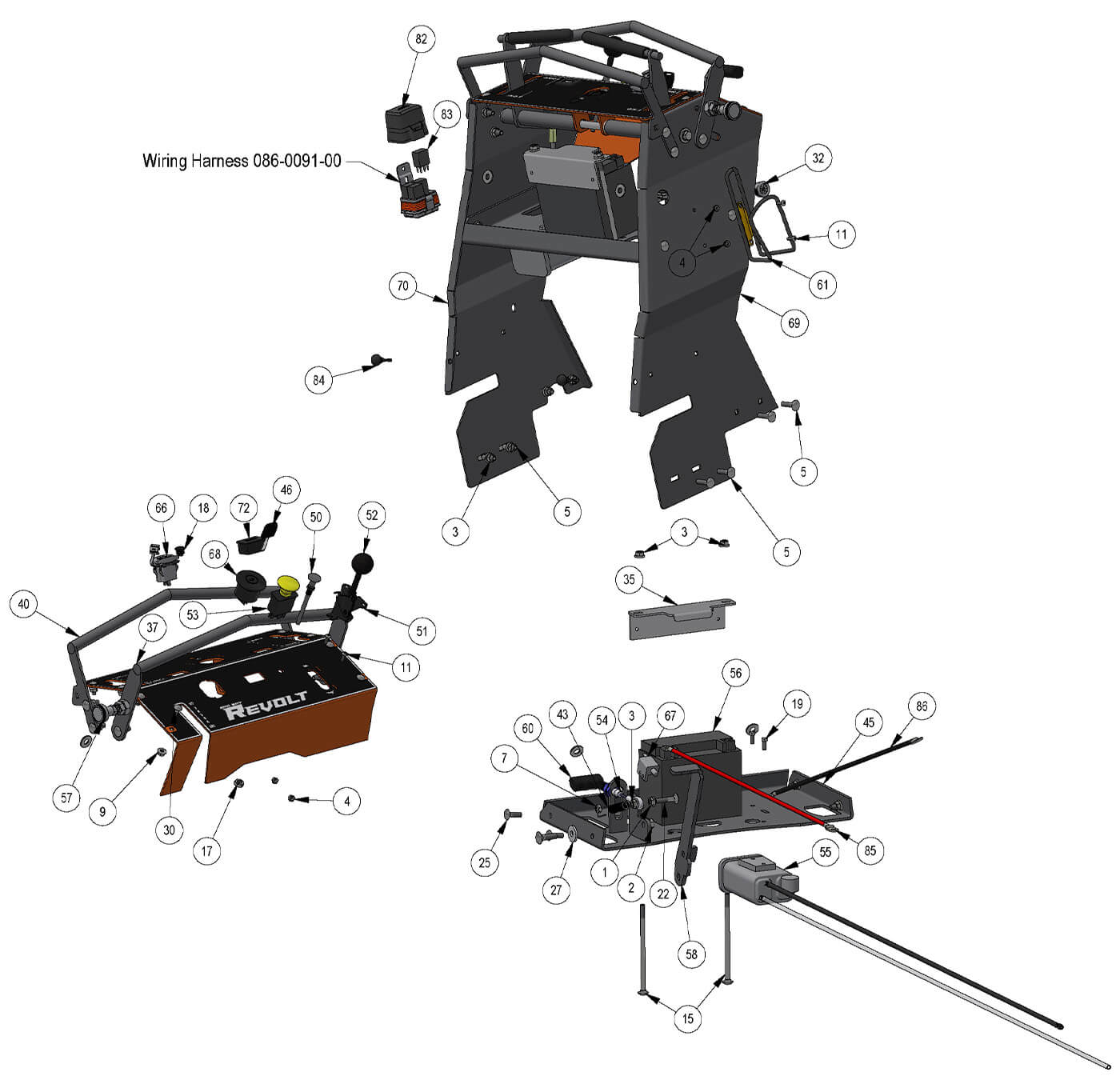

Podium 2
Parts Index
- 1 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 2 3/8 Nylock Flange Nut (Qty 1)
- 3 5/16-18 Nylon Flange Nut (Qty 21)
- 4 10-24 Nylon Insert Locknut Zin (Qty 4)
- 5 5/16-18 X 1-1/4 Carriage Bolt (Qty 10)
- 7 5/16-18 Nylock Jam Nut (Qty 3)
- 9 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 11 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 15 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 17 3/8-24 Hex Nut Zinc (Qty 1)
- 18 5/8 Round Insert - Deck (Qty 1)
- 19 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 22 5/16-18 X 1-1/2 Carriage Bolt (Qty 1)
- 25 5/16-18 X 1 Carriage Bolt Zinc (Qty 10)
- 27 .390 ID Plastic Washer (Qty 1)
- 30 1/4 x 3/4 Carriage Bolt (Qty 12)
- 37 36" Front Control Arm Stop Weldment--Black (Qty 1)
- 40 36-SD Control Arm Stop Weldment--Black (Qty 1)
- 43 Brake Spring (Qty 1)
- 46 Ignition Key (Qty 1)
- 50 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 51 Universal Throttle Head - 2012 (Qty 1)
- 52 Throttle / Brake Head Ball (Qty 1)
- 53 PTO Engager-Switch for Blades (Qty 1)
- 54 Brake Cable Walk Behind/Revolt (Qty 1)
- 55 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 56 Revolt Battery (Qty 1)
- 57 Plunger 5/8-11 All Stainless Steel (Qty 1)
- 58 2019 Stand On Brake Handle--Black (Qty 1)
- 60 Rubber Brake Grip-cZT/ZT 2013 (Qty 1)
- 61 2019 Stand-On Cup Holder (Qty 1)
- 66 USB Port (Qty 1)
- 67 Safety Switch (Qty 1)
- 68 Ignition Switch (Qty 1)
- 72 Tachometer-N310-0100-1018 (Qty 1)
- 82 2019 Relay Cap Kit (Qty 2)
- 83 2019 Relay Terminal (Qty 8)
- 84 2023 Floor Board Rubber Bumpers (Qty 2)
- 85 24 Red Battery Cable (Qty 1)
- 86 24 inch Black Cable - MZ/ZT (Qty 1)
-
1#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 21Regular price $0.79 USDRegular priceUnit price per
-
4#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
5#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 10Regular price $0.69 USDRegular priceUnit price per
-
7#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 3Regular price $2.69 USDRegular priceUnit price per
-
9#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
11#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
15#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
17#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
18#014-3010-00
5/8 Round Insert - Deck
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
19#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
22#018-5020-00
5/16-18 X 1-1/2 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
25#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
27#019-2073-00
.390 ID Plastic Washer
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
30#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
37#031-0034-00
36" Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
43#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
46#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
50#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
51#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
52#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
53#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
54#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
55#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
56#068-8051-00
2019 Stand-On Battery
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
57#069-0002-00
Plunger 5/8-11 All Stainless Steel
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
58#069-2013-00
2019 Stand On Brake Handle--Black
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
60#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
61#071-6005-00
2019 Stand-On Cup Holder
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
-
67#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
68#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
72#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
82#086-1202-01
2019 Relay Cap Kit
Qty Used: 2Regular price $17.24 USDRegular priceUnit price per
-
83#086-1202-19
2019 Relay Terminal
Qty Used: 8Regular price $23.34 USDRegular priceUnit price per
-
84#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
85#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
86#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
