Podium

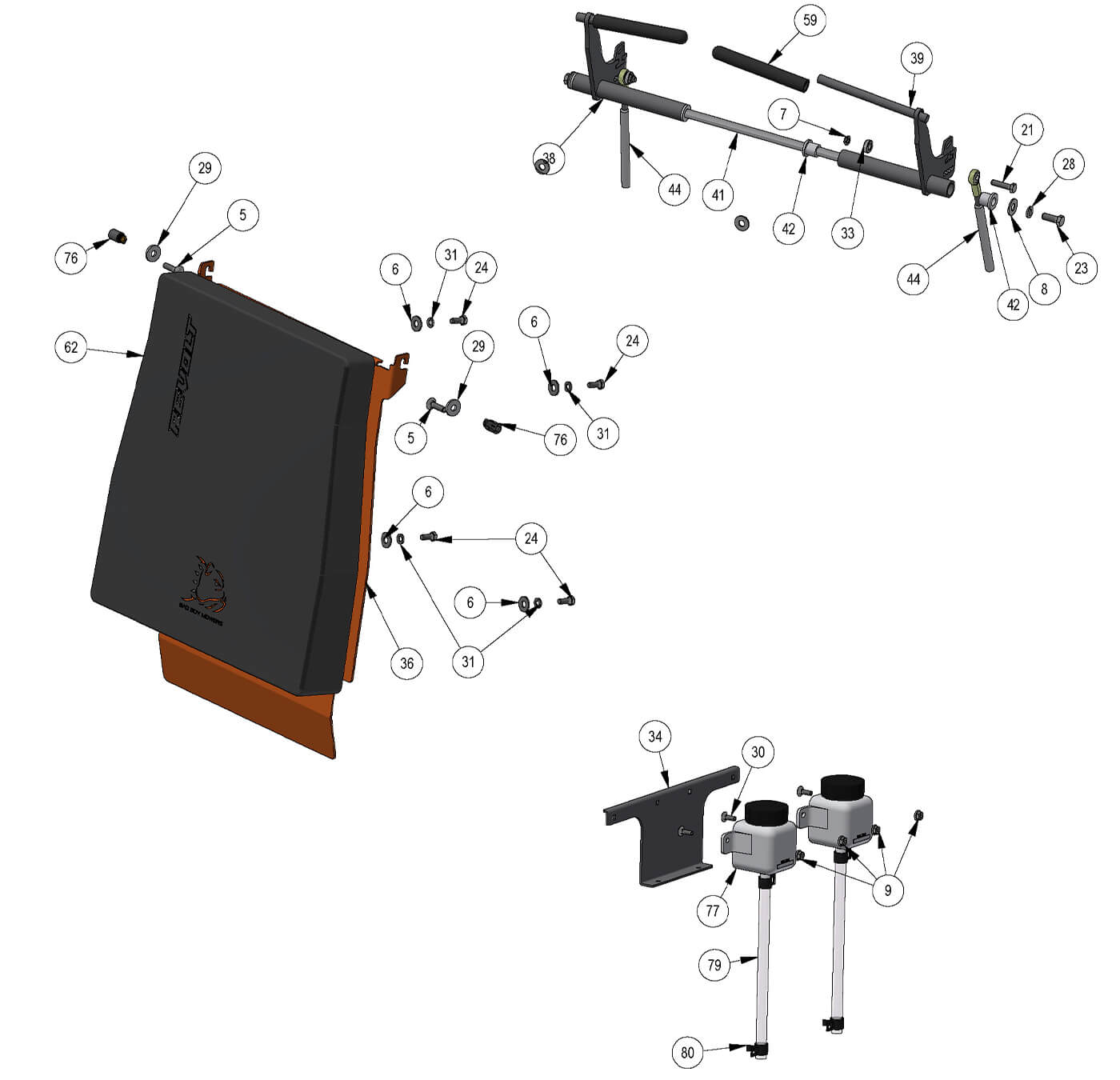

Parts Index
- 5 5/16-18 X 1-1/4 Carriage Bolt (Qty 10)
- 6 5/16 USS Flat Washer Zinc (Qty 4)
- 7 5/16-18 Nylock Jam Nut (Qty 3)
- 8 3/8 USS Flat Washer Zinc (Qty 2)
- 9 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 21 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 23 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 24 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 4)
- 28 3/8 Lockwasher Zinc (Qty 2)
- 29 .360 ID Plastic Washer (Qty 2)
- 30 1/4 x 3/4 Carriage Bolt (Qty 1)
- 31 5/16 Lock washer Zinc (Qty 4)
- 33 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 36 2023 36-SD Pad Plate--Orange (Qty 1)
- 41 2020 36" Stand On Drive Pivot Bar (Qty 1)
- 42 2023 Revolt Drive Arm Bushings (Qty 4)
- 44 2019 Stand On Push Rod Assembly (Qty 2)
- 59 2019 Revolt Cushioned hand Grip (Qty 2)
- 62 2023 Revolt SD Pad (Qty 1)
- 76 2023 Revolt Platform adjustable handles (Qty 2)
- 77 71328-Expansion Tank CZT/ZT (Qty 2)
- 79 2017 ZT/ Maverick Hydro Tank Hose (Qty 2)
- 80 3/8 Hose Clamp - CTB-16-STFS (Qty 2)
-
5#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 10Regular price $0.69 USDRegular priceUnit price per
-
6#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
7#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 3Regular price $2.69 USDRegular priceUnit price per
-
8#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
9#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
21#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
23#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
24#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
28#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
29#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
30#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
31#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
33#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
41#031-0094-00
2020 36" Stand On Drive Pivot Bar
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
42#032-0005-00
2023 Revolt Drive Arm Bushings
Qty Used: 4Regular price $1.89 USDRegular priceUnit price per
-
44#035-0006-19
2019 Stand On Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
59#069-2014-00
2019 Revolt Cushioned hand Grip
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
62#071-6017-00
2023 Revolt SD Pad
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
76#045-0001-00
2023 Revolt Platform adjustable handles
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
77#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
79#051-0016-00
2017 ZT/ Maverick Hydro Tank Hose
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
80#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
