Engine FS600

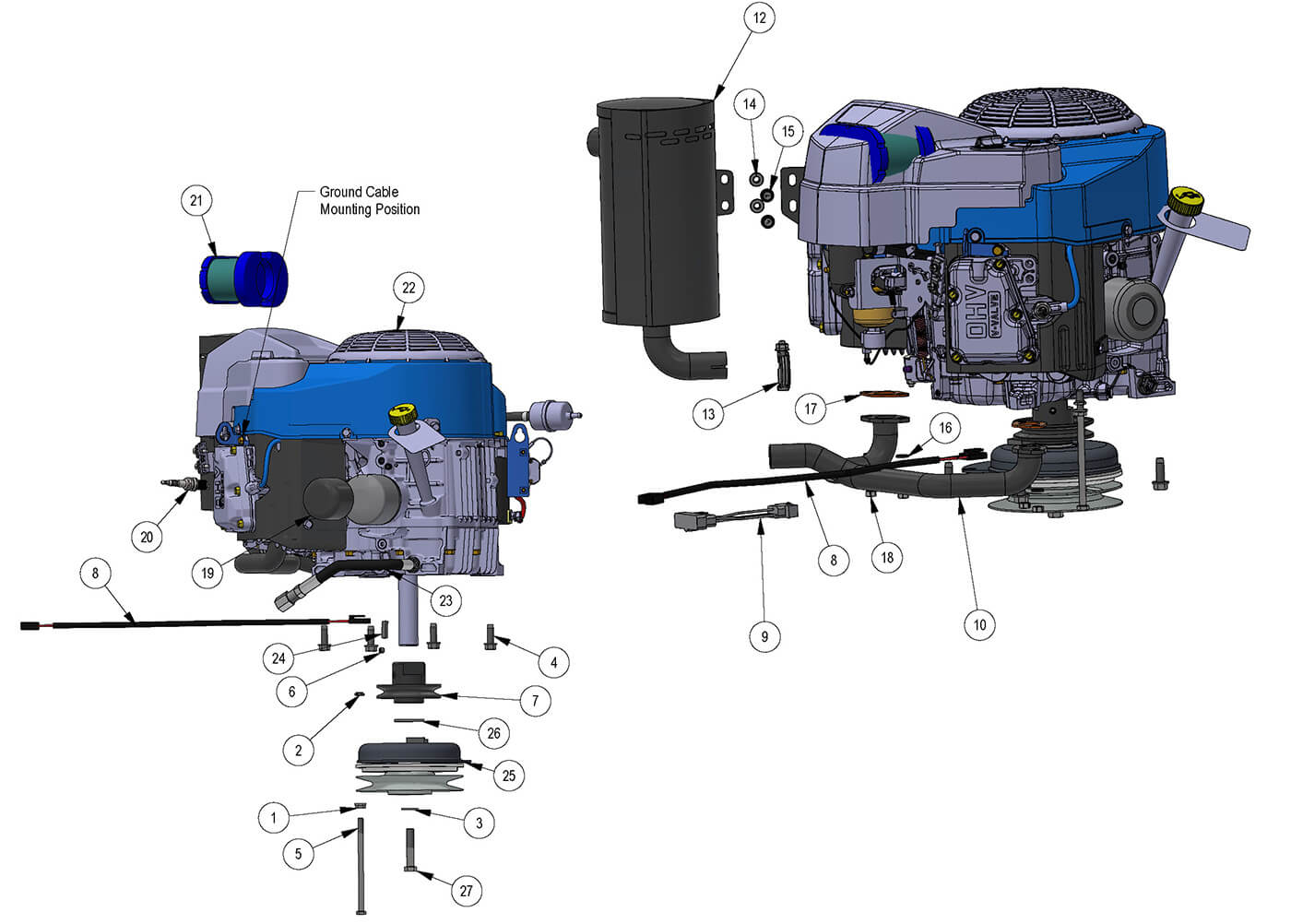

Parts Index
- 1 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 2 5/16-18 Nylock Jam Nut (Qty 1)
- 3 3/8 USS Flat Washer Zinc (Qty 1)
- 4 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 5 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 6 5/16-24 x 1/4 Set Screw (Qty 1)
- 8 Clutch Pigtail (Qty 1)
- 9 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
- 10 Exhaust Pipe for 2018 Kawasaki Walk Behind (Qty 1)
- 11 Exhaust Bracket for 2018 Kawasaki Walk Behind (Qty 1)
- 12 Exhaust Only for 2018 Kawasaki Walk Behind (Qty 1)
- 13 Exhaust Band for 2018 Kawasaki Walk Behind (Qty 1)
- 14 Exhaust Nut for 2018 Kawasaki Walk Behind (Qty 2)
- 15 Exhaust Flanged Bolt for 2018 Kawasaki Walk Behind (Qty 4)
- 16 Exhaust Washer Spring / Muffler Mount Lock Washer (Qty 4)
- 17 Exhaust Gasket for 2018 Kawasaki Walk Behind (Qty 2)
- 18 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 19 Kawasaki Oil Filter (Qty 1)
- 20 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 21 22-26 Kaw Air Filter FR / FS (Qty 1)
- 23 Kawasaki Oil Drain (Qty 1)
- 24 1/4 x 1 Square Key (Qty 1)
- 25 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 26 1.140x1.750x .132 Flat Washer (Qty 1)
- 27 7/16-20 x 2 ¼’’ Hex Cap Screw GR 8 with Patch (Qty 1)
-
1#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
2#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
3#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
4#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
5#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
6#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
8#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
9#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
-
10#015-0543-02
Exhaust Pipe for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
11#015-0543-03
Exhaust Bracket for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
12#015-0543-01
Exhaust Only for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
13#015-0543-08
Exhaust Band for 2018 Kawasaki Walk Behind
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
14#015-0543-06
Exhaust Nut for 2018 Kawasaki Walk Behind
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
15#015-0543-04
Exhaust Flanged Bolt for 2018 Kawasaki Walk Behind
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
16#015-0543-05
Exhaust Washer Spring / Muffler Mount Lock Washer
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
17#015-0543-07
Exhaust Gasket for 2018 Kawasaki Walk Behind
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
18#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
19#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
20#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
21#063-2097-00
22-26 Kaw Air Filter FR / FS
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
23#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
24#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
-
26#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
27#018-0118-00
7/16-20 x 2 ¼’’ Hex Cap Screw GR 8 with Patch
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
