42" Deck

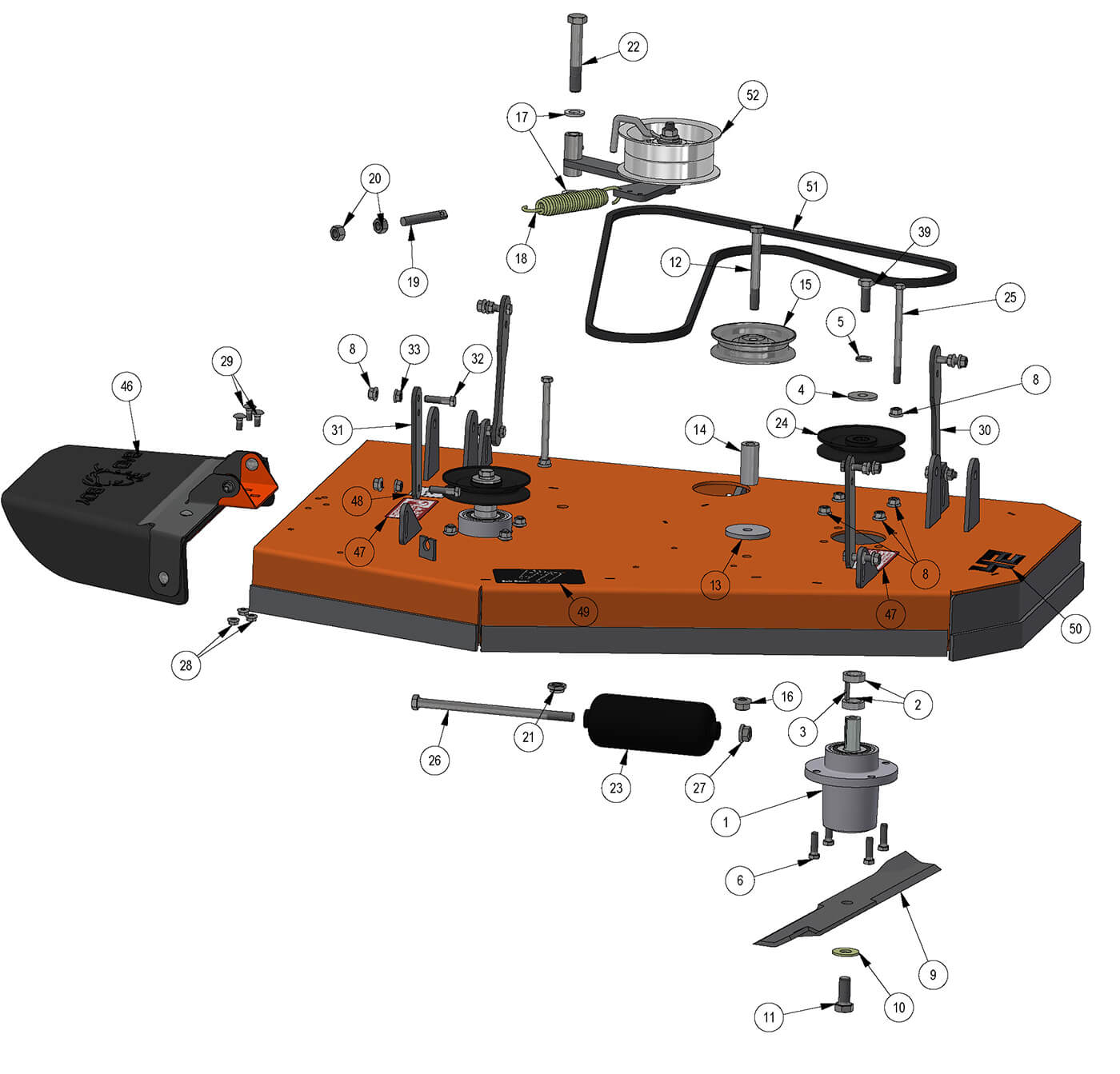

Parts Index
- 1 Revolt 36" Spindle (Qty 2)
- 2 36" Stand On Deck Spacer (Qty 4)
- 3 3/16 X 1 Square Machine Key (Qty 2)
- 4 1/2 Belleville Washer #K2000-G (Qty 2)
- 5 1/2 Lockwasher Zinc (Qty 2)
- 6 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 8)
- 8 3/8 Nylock Flange Nut (Qty 20)
- 9 60" High Lift Blade (Qty 2)
- 10 5/8 Flat Washer (Qty 2)
- 11 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 2)
- 12 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 1)
- 13 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 14 2019 Stand On Stationary Idler Spacer (Qty 1)
- 15 5 V Idler Pulley w/1/2" Bore- (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 17 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 18 2015 Deck Idler Spring (Qty 1)
- 19 All Thread (Qty 1)
- 20 1/2-13 Hex Nuts Zinc (Qty 2)
- 21 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 22 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 23 Deck Roller Belly Mower (Qty 1)
- 24 60" MZ Deck Pulley (Qty 2)
- 25 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 26 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 1)
- 27 1/2-13 Mechanical Lock Nut Grade F (Qty 1)
- 28 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 29 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 3)
- 30 2019 Stand On Deck Hanger Rear--Black (Qty 2)
- 31 2019 Stand On Deck Hanger Front--Black (Qty 2)
- 32 3/8 x 1 1/2 Bolt (Qty 8)
- 33 3/8-16 Hex Flange Nuts Zinc w/ (Qty 8)
- 39 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 2)
- 46 MZ Discharge Chute Assembly (Qty 1)
- 47 Danger Decal-Spindle/Discharge (Qty 2)
- 48 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 49 36" Revolt Deck Belt Route Decal (Qty 1)
- 51 2020 36" Revolt / 2020 36" Walk Behind Deck Belt (Qty 1)
- 52 SD Deck Idler Assembly (Qty 1)
-
1#037-2002-00
Revolt 36" Spindle
Qty Used: 2Regular price $212.29 USDRegular priceUnit price per
-
2#025-0060-00
36" Stand On Deck Spacer
Qty Used: 4Regular price $5.99 USDRegular priceUnit price per
-
3#042-0010-00
3/16 X 1 Square Machine Key
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
4#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 2Regular price $4.69 USDRegular priceUnit price per
-
5#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
6#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
8#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 20Regular price $1.49 USDRegular priceUnit price per
-
9#038-6060-00
60\" High Lift Blade
Qty Used: 2Regular price $21.16 USDRegular priceUnit price per
-
10#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
11#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
12#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 1Regular price $2.39 USDRegular priceUnit price per
-
13#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
14#025-0032-00
2019 Stand On Stationary Idler Spacer
Qty Used: 1Regular price $7.69 USDRegular priceUnit price per
-
15#033-7026-00
5 V Idler Pulley w/1/2\" Bore-
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
17#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
19#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
20#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
21#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
22#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
23#822-2055-00
Deck Roller Belly Mower
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
24#033-4301-00
60" MZ Deck Pulley
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
25#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
26#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $5.29 USDRegular priceUnit price per
-
27#013-0010-00
1/2-13 Mechanical Lock Nut Grade F
Qty Used: 1Regular price $1.00 USDRegular priceUnit price per
-
28#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
29#018-8062-00
5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5)
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
30#039-2128-00
2019 Stand On Deck Hanger Rear--Black
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
31#039-2129-00
2019 Stand On Deck Hanger Front--Black
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
32#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
33#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
39#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
46#210-6015-98
MZ Discharge Chute Assembly
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
47#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
48#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
49#091-4058-00
36\" Revolt Deck Belt Route Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
51#041-8054-00
2020 36" Revolt / 2020 36" Walk Behind Deck Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
