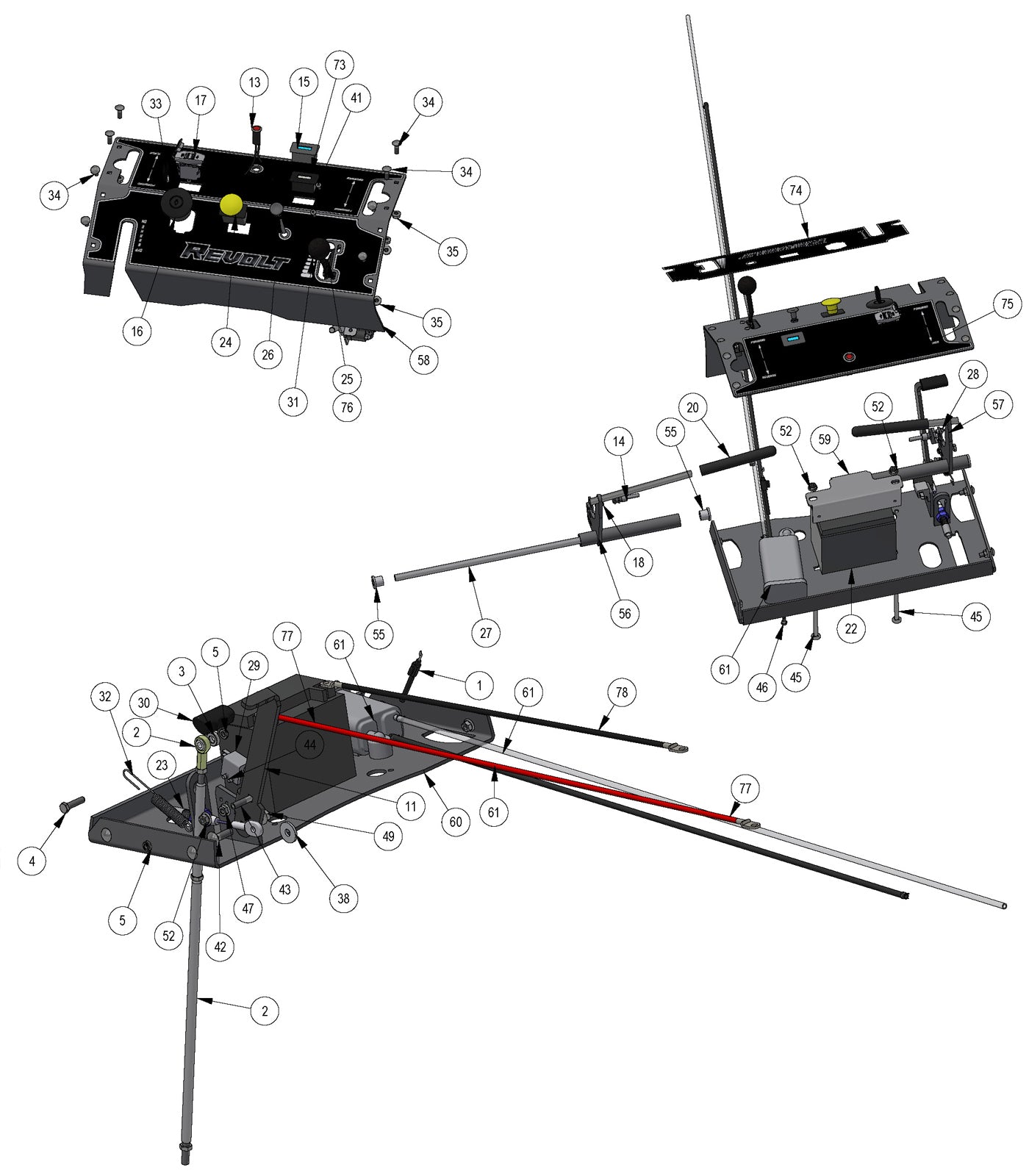

Podium Assembly 2
Parts Index
- 1 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 2 2019 Stand On Push Rod Assembly (Qty 2)
- 3 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 4 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 5 5/16-18 Nylock Jam Nut (Qty 3)
- 11 2019 Stand On Brake Handle--Black (Qty 1)
- 13 Oil Light (Qty 1)
- 14 Safety Switch Harness (Qty 2)
- 15 Tachometer-N310-0100-1018 (Qty 1)
- 16 Ignition Switch (Qty 1)
- 17 USB Port (Qty 1)
- 18 Magnet-Steering Arm-Stand ON (Qty 2)
- 20 2019 Revolt Cushioned hand Grip (Qty 2)
- 22 Revolt Battery (Qty 1)
- 23 Brake Cable Walk Behind/Revolt (Qty 1)
- 24 PTO Engager-Switch for Blades (Qty 1)
- 25 Universal Throttle Head - 2012 (Qty 1)
- 26 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 27 2019 Stand On Drive Pivot Bar (Qty 1)
- 28 8-32 Hex M/S Nut (Qty 2)
- 29 Safety Switch (Qty 1)
- 30 Rubber Brake Grip-cZT/ZT 2013 (Qty 1)
- 31 Throttle / Brake Head Ball (Qty 1)
- 32 Brake Spring (Qty 1)
- 33 Ignition Key (Qty 1)
- 34 1/4 x 3/4 Carriage Bolt (Qty 12)
- 35 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 38 .390 ID Plastic Washer (Qty 1)
- 41 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 42 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 43 5/16-18 X 1-1/2 Carriage Bolt (Qty 1)
- 45 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 46 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 47 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 49 3/8 Nylock Flange Nut (Qty 1)
- 44 12-24 x 1/2 HWH Bolt (Qty 2)
- 52 5/16-18 Nylon Flange Nut (Qty 13)
- 45 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 55 2023 Revolt Drive Arm Bushings (Qty 4)
- 60 2023 Stand On Drive Arm Plate (Qty 1)
- 61 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 73 Tachometer-Kohler/Yamaha EFI (Qty 1)
- 74 48,54, & 61 Revolt Lower Control Panel Decal (Qty 1)
- 77 36 Red Battery Cable (Qty 1)
- 78 24 inch Black Cable - MZ/ZT (Qty 1)
- 76 Kawasaki \ Kohler Drive by Wire Throttle (Qty 1)
-
1#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
2#035-0006-19
2019 Stand On Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
3#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
4#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 3Regular price $2.69 USDRegular priceUnit price per
-
11#069-2013-00
2019 Stand On Brake Handle--Black
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
-
14#086-0015-00
Safety Switch Harness
Qty Used: 2Regular price $65.67 USDRegular priceUnit price per
-
15#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
16#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
-
18#077-1000-00
Magnet-Steering Arm-Stand ON
Qty Used: 2Regular price $13.85 USDRegular priceUnit price per
-
20#069-2014-00
2019 Revolt Cushioned hand Grip
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
22#068-8051-00
2019 Stand-On Battery
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
23#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
24#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
25#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
26#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
27#031-0091-00
2019 Stand On Drive Pivot Bar
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-

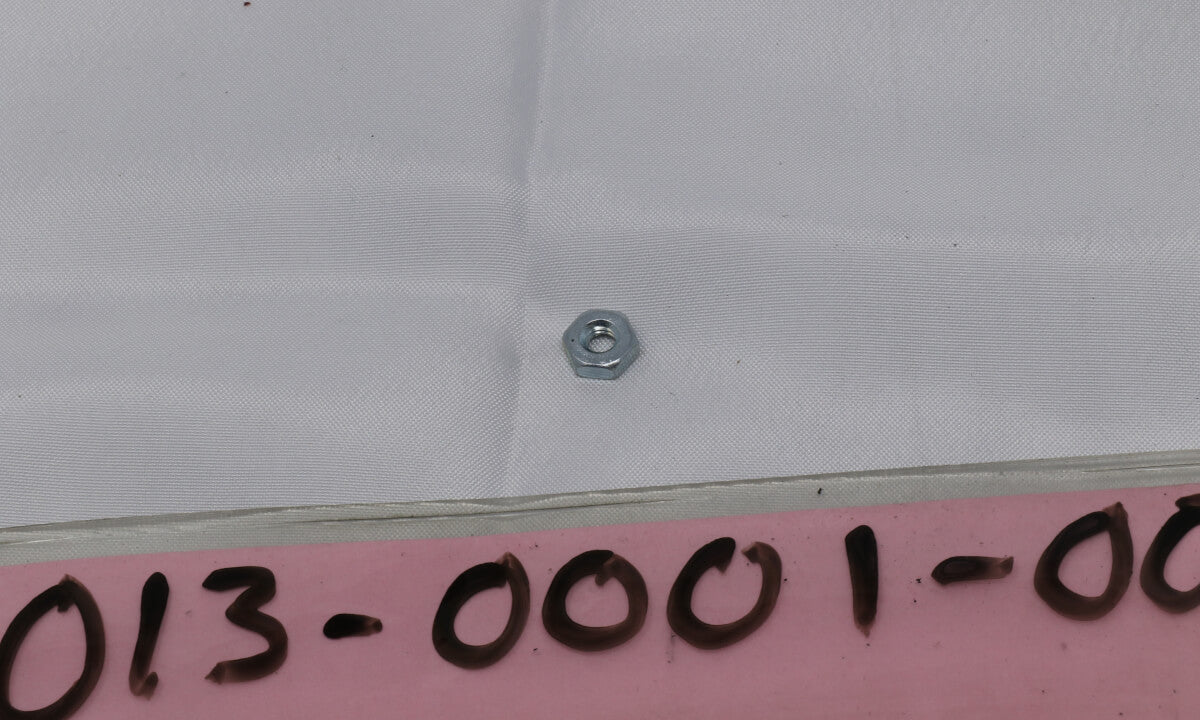

28#013-0001-00
8-32 Hex M/S Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
29#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
30#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
31#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
32#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
33#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
34#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
35#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
38#019-2073-00
.390 ID Plastic Washer
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
41#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
42#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
43#018-5020-00
5/16-18 X 1-1/2 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
4545#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
46#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
47#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
49#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
44#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
52#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 13Regular price $0.79 USDRegular priceUnit price per
