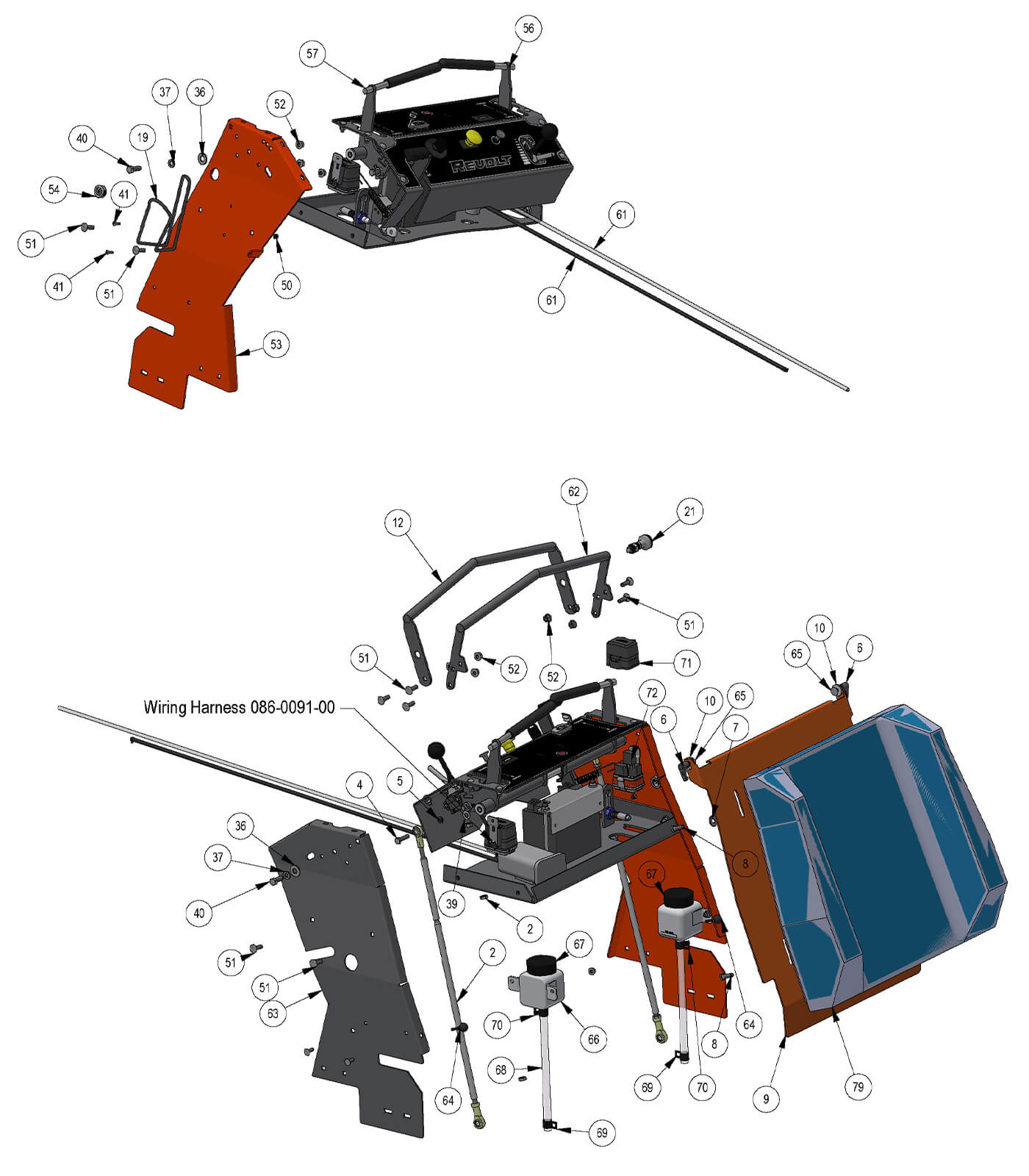

Podium Assembly
Parts Index
- 2 2019 Stand On Push Rod Assembly (Qty 2)
- 4 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 5 5/16-18 Nylock Jam Nut (Qty 3)
- 6 2023 Revolt Platform adjustable handles (Qty 2)
- 7 5/16 USS Flat Washer Zinc (Qty 4)
- 8 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 9 2023 Pad Plate--Orange (Qty 1)
- 10 .360 ID Plastic Washer (Qty 2)
- 12 Revolt Front Control Arm Stop Weldment--Black (Qty 1)
- 19 2019 Stand-On Cup Holder (Qty 1)
- 21 Plunger 5/8-11 All Stainless Steel (Qty 1)
- 36 3/8 USS Flat Washer Zinc (Qty 2)
- 37 3/8 Lockwasher Zinc (Qty 2)
- 39 .390x.750x.062 Nylon Washer (Qty 2)
- 40 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 41 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 50 10-24 Nylon Insert Locknut Zin (Qty 4)
- 51 5/16-18 X 1 Carriage Bolt Zinc (Qty 10)
- 52 5/16-18 Nylon Flange Nut (Qty 13)
- 53 2023 Podium Panel Right--Orange (Qty 1)
- 61 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 64 2023 Floor Board Rubber Bumpers (Qty 2)
- 65 5/16-18 X 1-1/4 Carriage Bolt (Qty 2)
- 66 71328-Expansion Tank CZT/ZT (Qty 2)
- 67 ZT Hydraulic Tank Cap (Qty 2)
- 68 2017 ZT/ Maverick Hydro Tank Hose (Qty 2)
- 69 3/8 Hose Clamp - CTB-16-STFS (Qty 2)
- 70 1/2 Hose Clamp (Qty 2)
- 71 2019 Relay Cap Kit (Qty 2)
- 72 2019 Relay Terminal (Qty 8)
- 79 2025 3-Piece Revolt Pad (Qty 1)
- 63 2023 Podium Panel Left--Orange (Qty 1)
-
2#035-0006-19
2019 Stand On Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
4#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 3Regular price $2.69 USDRegular priceUnit price per
-
6#045-0001-00
2023 Revolt Platform adjustable handles
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
7#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
8#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
9#026-0273-00
2023 Pad Plate--Orange
Qty Used: 1Regular price $106.99 USDRegular priceUnit price per
-
10#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
12#031-0026-00
Revolt Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $57.09 USDRegular priceUnit price per
-
19#071-6005-00
2019 Stand-On Cup Holder
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
21#069-0002-00
Plunger 5/8-11 All Stainless Steel
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
36#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
37#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
39#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
40#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
41#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
50#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
51#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
52#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 13Regular price $0.79 USDRegular priceUnit price per
-
53#026-0270-00
2023 Podium Panel Right--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
61#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
64#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
65#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
66#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
67#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
68#051-0016-00
2017 ZT/ Maverick Hydro Tank Hose
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
69#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
70#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
71#086-1202-01
2019 Relay Cap Kit
Qty Used: 2Regular price $17.24 USDRegular priceUnit price per
-
72#086-1202-19
2019 Relay Terminal
Qty Used: 8Regular price $23.34 USDRegular priceUnit price per
-
63#026-0280-00
2023 Podium Panel Left--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
