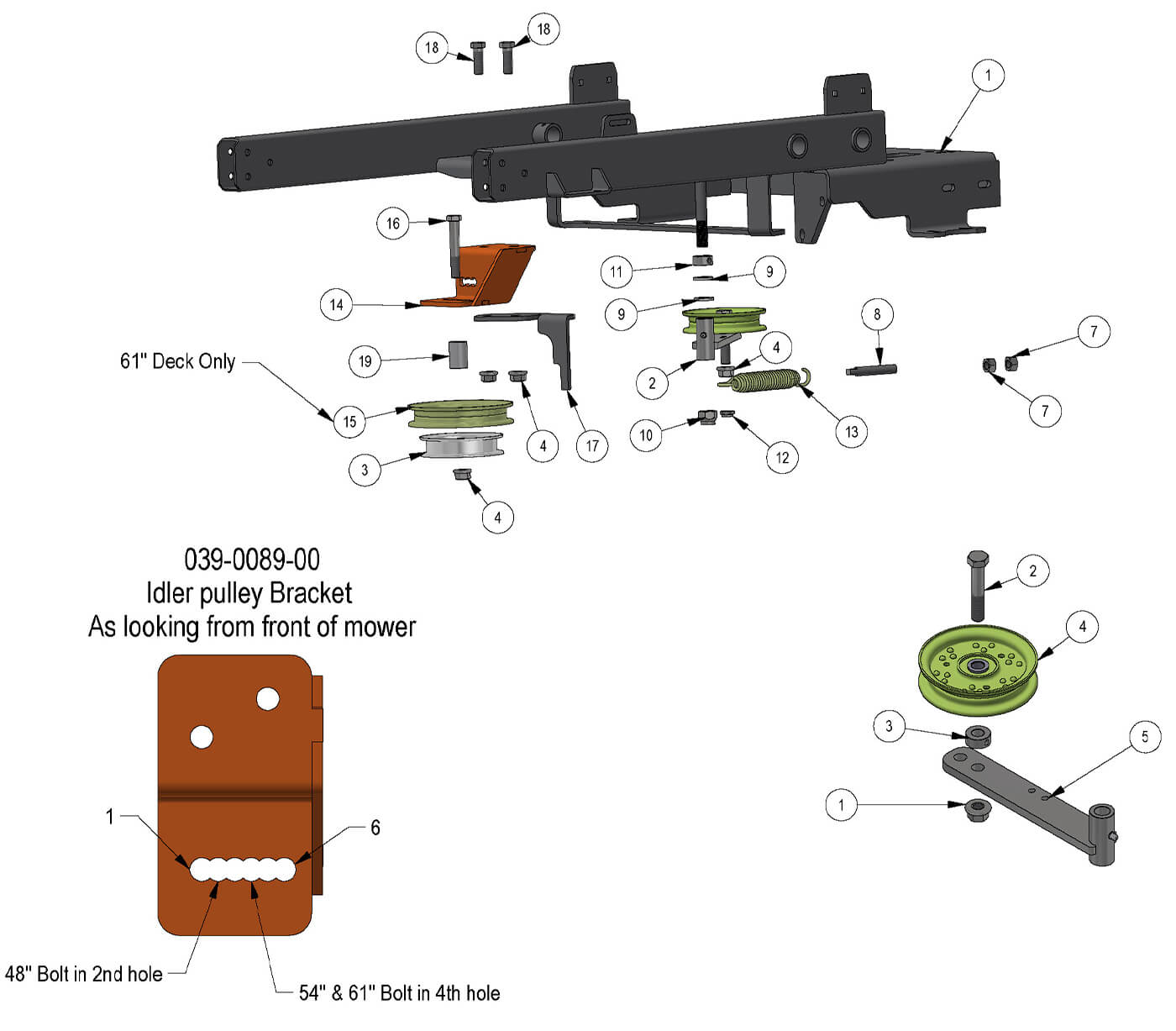

Idler Arm Mount
Parts Index
- 1 2019 Stand On Frame--Orange (Qty 1)
- 2 Idler Bracket (Qty 1)
- 3 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 5 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 6 1/2 Set Collar w/set collar (Qty 1)
- 7 1/2-13 Hex Nuts Zinc (Qty 2)
- 8 All Thread (Qty 1)
- 9 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 10 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 11 5/8 Set Collar W/One Set Screw (Qty 2)
- 12 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 13 2015 Deck Idler Spring (Qty 1)
- 14 Idler Pulley Bracket Weldment--Orange (Qty 1)
- 15 5 3/4 Idler Pulley-Capitol (Qty 1)
- 16 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 17 Clutch Stop Bracket--Plated Rev B (Qty 1)
- 18 1/2-13 X 1-1/2 GR 5 Hex Bolt (Qty 2)
- 19 .502 ID X 1.000 0D X 1.500 (Qty 1)
- 1-1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 2-1 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 3-1 1/2 Set Collar w/set collar (Qty 1)
- 4-1 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 5-1 Idler Bracket (Qty 1)
-
1#070-5220-19
2019 Stand On Frame--Orange
Qty Used: 1Regular price $749.99 USDRegular priceUnit price per
-
25-1#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
34-1#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
41-1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
52-1#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
63-1#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
7#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
8#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
9#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
10#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
11#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
12#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
13#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
14#039-0089-00
Idler Pulley Bracket Weldment--Orange
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
15#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
16#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
17#039-0119-00
Clutch Stop Bracket--Plated
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
18#018-5006-00
1/2-13 X 1-1/2 GR 5 Hex Bolt
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
19#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
