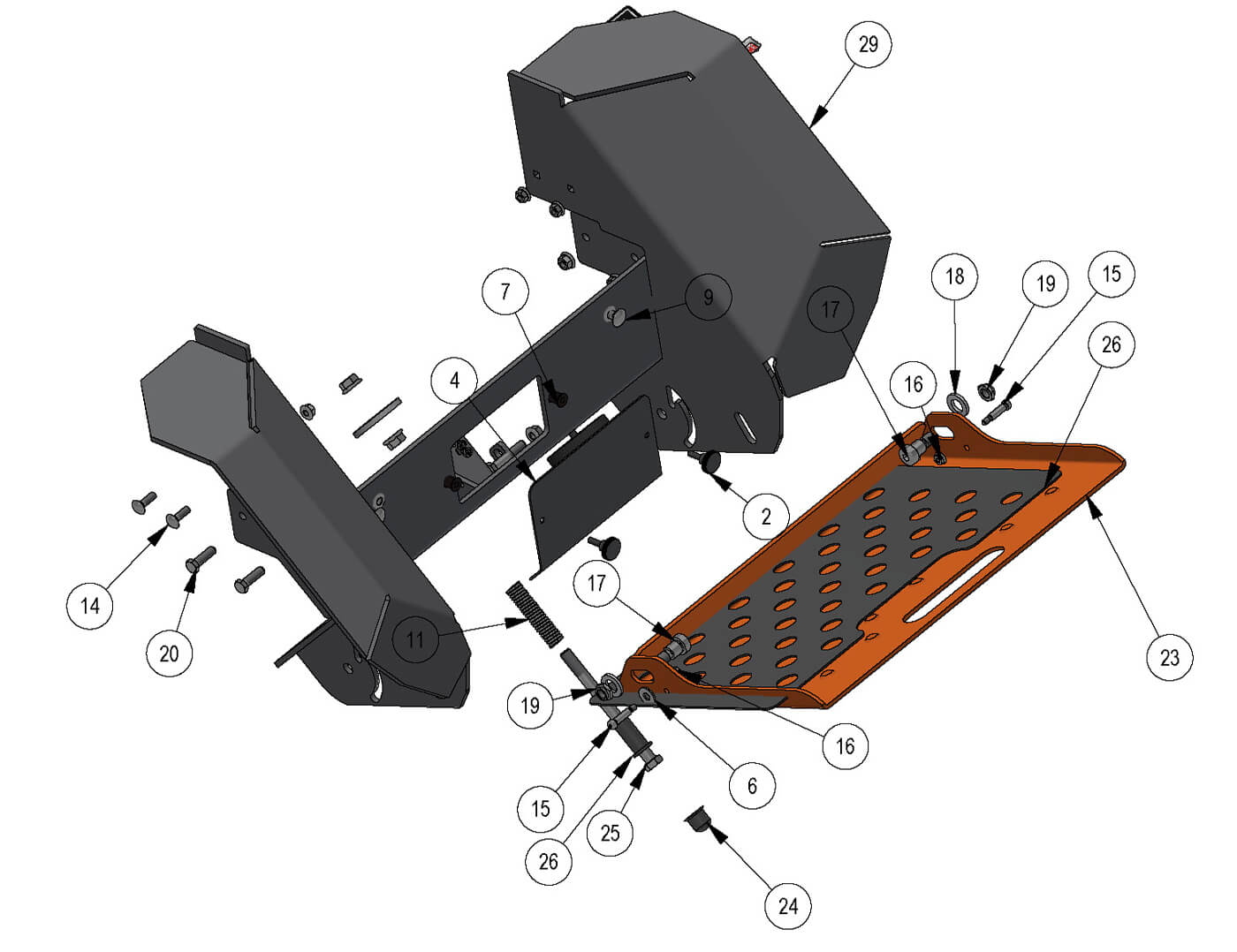

Fender Assembly 2
Parts Index
- 2 1/4-20 x 3/4 Knurled Thumb Screw (Qty 2)
- 4 2019 Stand On Access Panel Plate--Black (Qty 1)
- 6 5/16 USS Flat Washer Zinc (Qty 4)
- 7 Wellnut 1/4-20 x 5/8 (Qty 2)
- 9 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 11 3-1/8" x 0.75 OD x 0.568 ID Compression Spring (Qty 1)
- 14 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 15 Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16" (Qty 2)
- 16 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 17 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 18 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 19 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 23 2023 Revolt Platform--Orange (Qty 1)
- 24 Hex Nut Cap (Qty 1)
- 25 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
- 26 Nylon 6 6 Sleeve Washer/Bushing (Qty 1)
- 29 2024 48-61" Stand On Platform Support--Orange (Qty 1)
- 20 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 1)
-
2#030-0015-00
1/4-20 x 3/4 Knurled Thumb Screw
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
4#026-0063-00
2019 Stand On Access Panel Plate--Black
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
6#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
7#013-0057-00
Wellnut 1/4-20 x 5/8
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
9#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
11#034-1001-00
3-1/8" x 0.75 OD x 0.568 ID Compression Spring
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
14#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
15#018-0059-00
Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
16#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
18#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
23#026-0062-23
2023 Revolt Platform--Orange
Qty Used: 1Regular price $179.99 USDRegular priceUnit price per
-
24#013-0029-00
Hex Nut Cap
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
25#018-0062-00
1/2-13 X 6" Hex Head Bolt Gr5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
26#032-0006-00
Nylon 6 6 Sleeve Washer
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
20#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
