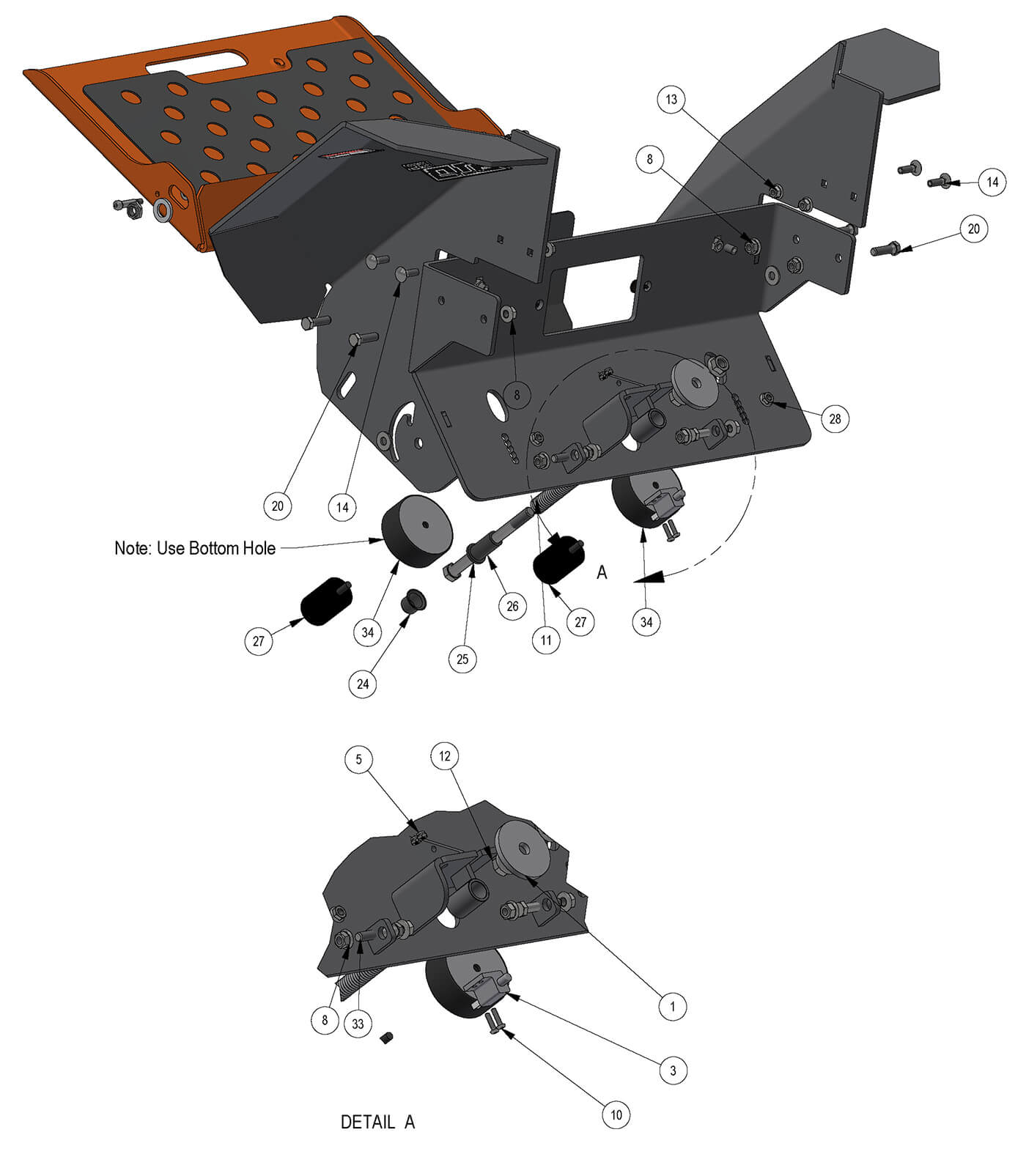

Fender Assembly
Parts Index
- 1 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 3 2017? Walk Behind-Safety Switch (Qty 1)
- 5 10-24 Nylon Insert Locknut Zin (Qty 2)
- 8 3/8 Nylock Flange Nut (Qty 10)
- 10 10-24 X 3/4 BS C/S 18-8 SS (Qty 2)
- 11 3-1/8" x 0.75 OD x 0.568 ID Compression Spring (Qty 1)
- 12 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 13 5/16-18 Nylon Flange Nut (Qty 4)
- 14 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 20 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 24 Hex Nut Cap (Qty 1)
- 25 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
- 26 Nylon 6 6 Sleeve Washer/Bushing (Qty 1)
- 27 Revolt Platform Dampener Cylinder (Qty 2)
- 28 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 33 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 34 Revolt Platform Bumper (Qty 2)
-
1#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
3#077-0002-00
2017? Walk Behind-Safety Switch
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
5#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
8#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
10#018-8057-00
10-24 X 3/4 BS C/S 18-8 SS
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#034-1001-00
3-1/8" x 0.75 OD x 0.568 ID Compression Spring
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
12#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
13#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
14#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
20#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
24#013-0029-00
Hex Nut Cap
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
25#018-0062-00
1/2-13 X 6" Hex Head Bolt Gr5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
26#032-0006-00
Nylon 6 6 Sleeve Washer
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
27#087-0005-00
Revolt Platform Dampener Cylinder
Qty Used: 2Regular price $59.99 USDRegular priceUnit price per
-
28#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
33#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
34#087-0012-00
Revolt Platform Bumper
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
