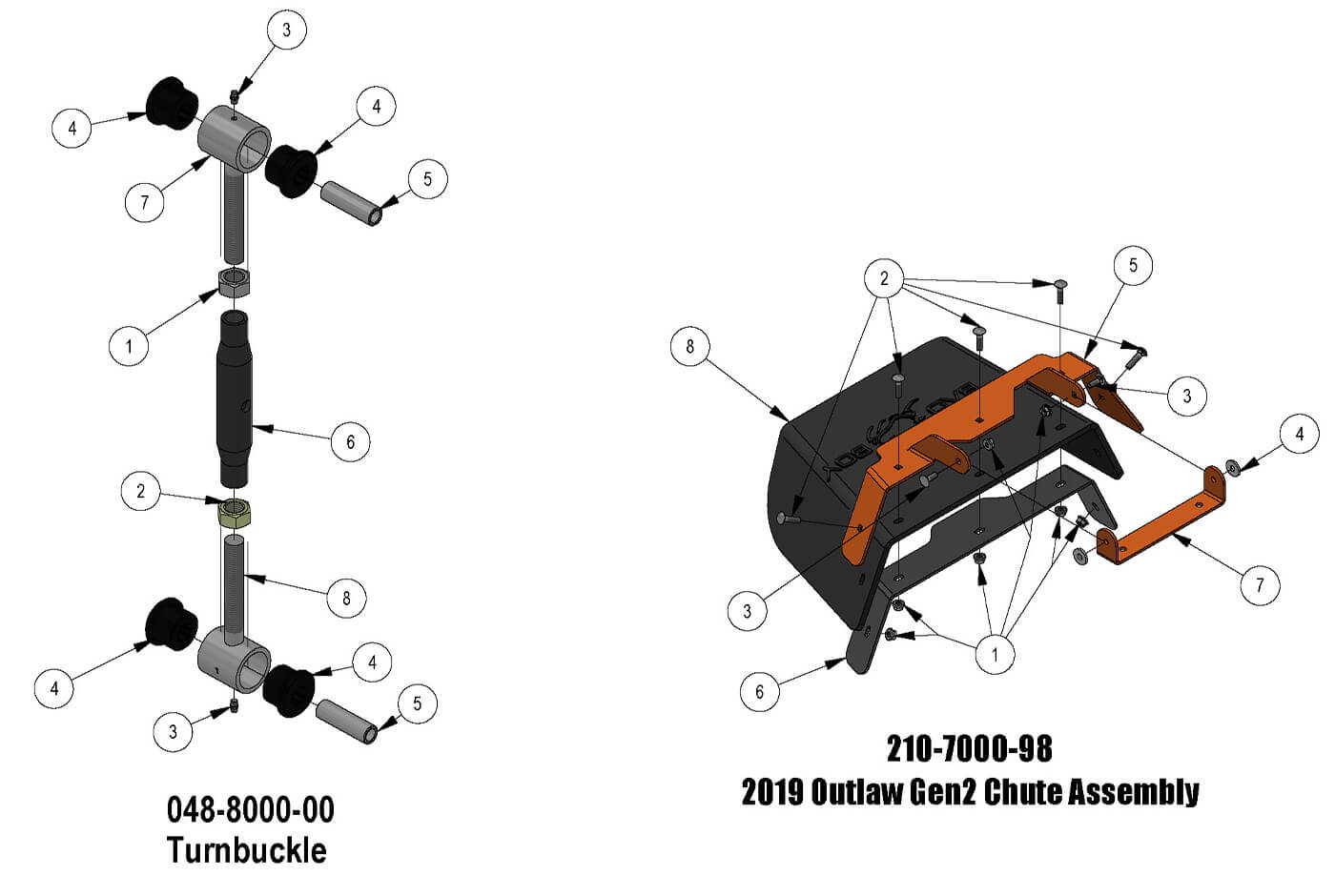

Deck Subassemblies 2
Parts Index
- 1-1 Hex Nut M20-2.5 (Qty 1)
- 2-1 Hex Nut M20-2.5 Left Hand Threads Gold Plated (Qty 1)
- 3-1 1/4-28 Threaded Grease Fitting (Qty 2)
- 4-1 Bushing-2015 Outlaw Toplink (Qty 4)
- 5-1 Sleeve-2015 Outlaw Toplink (Qty 2)
- 6-1 2024 Turnbuckle Body (Qty 1)
- 7-1 Turnbuckle End Right-Handed Thread (Qty 1)
- 8-1 Turnbuckle End Left-Handed Thread (Qty 1)
- 1-2 5/16-18 Nylon Flange Nut (Qty 7)
- 2-2 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 3-2 5/16 x 7/8 Carriage Bolt (Qty 2)
- 4-2 .360 ID Plastic Washer (Qty 2)
- 5-2 Chute Bracket (upper) (Qty 1)
- 6-2 Chute Bracket (lower) (Qty 1)
- 7-2 Chute Hanger (Qty 1)
- 8-2 Discharge Chute (Rubber Component) (Qty 1)
-
1-1#013-0030-00
Hex Nut M20-2.5
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
2-1#013-0031-00
Hex Nut M20-2.5 Left Hand Threads Gold Plated
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
3-1#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
4-1#032-2000-00
Bushing-2015 Outlaw Toplink
Qty Used: 4Regular price $9.99 USDRegular priceUnit price per
-
5-1#032-2001-00
Sleeve-2015 Outlaw Toplink
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
6-1#048-8020-00
2024 Turnbuckle Body
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
7-1#048-8021-00
Turnbuckle End Right-Handed Thread
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
8-1#048-8022-00
Turnbuckle End Left-Handed Thread
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
1-2#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
2-2#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
3-2#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
4-2#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5-2#039-4893-00
Chute Bracket (upper)
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
6-2#039-4894-00
Chute Bracket (lower)
Qty Used: 1Regular price $40.86 USDRegular priceUnit price per
-
7-2#206-6018-00
Chute Hanger
Qty Used: 1Regular price $8.79 USDRegular priceUnit price per
-
8-2#210-6025-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
