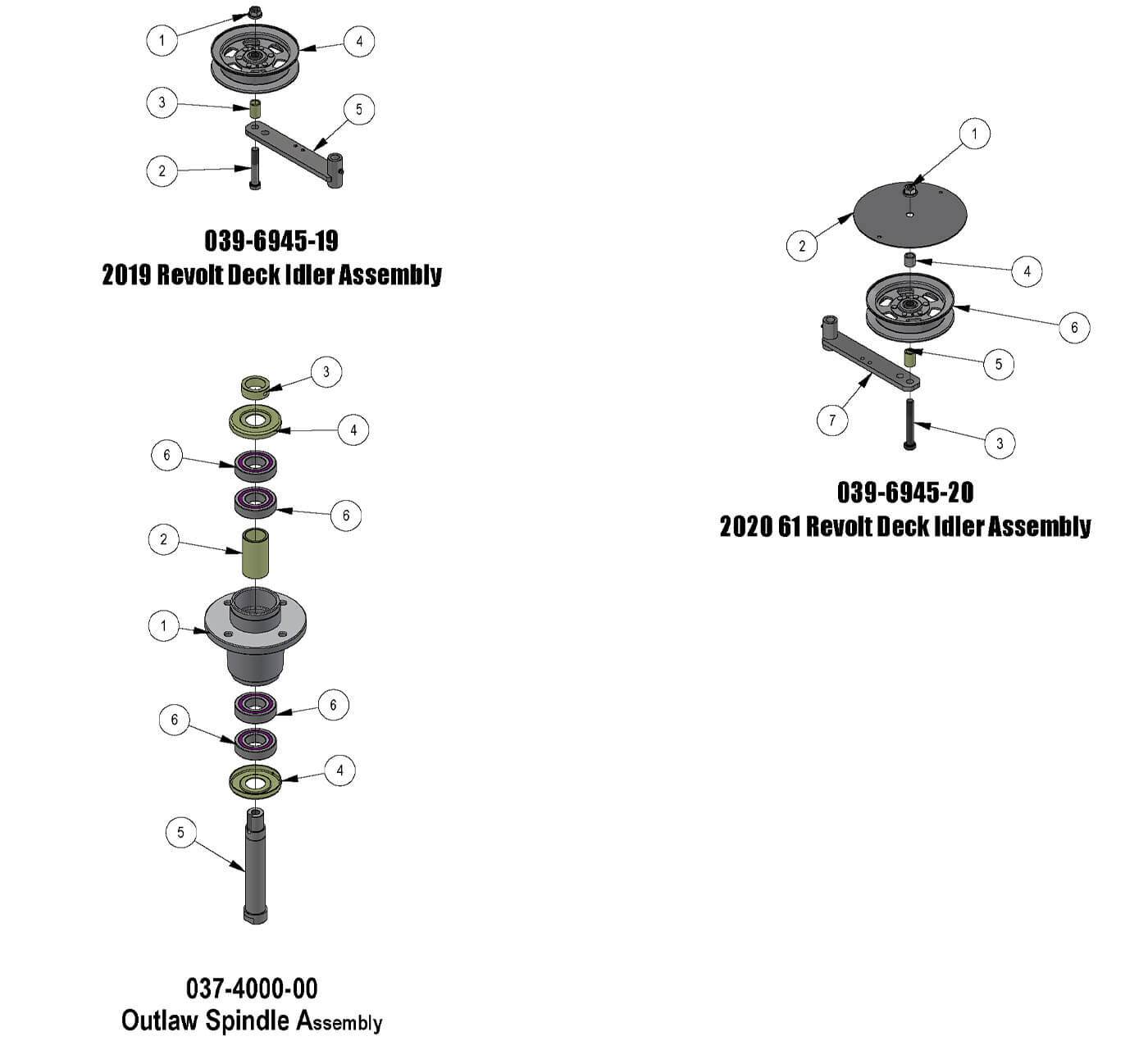

Deck Subassemblies
Parts Index
- 1-1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 2-1 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 3-1 .502x.750x1.130 Length Spacer (Qty 1)
- 4-1 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 5-1 Idler Bracket (Qty 1)
- 1-2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 2-2 61" Revolt Idler Pulley Cover--Black (Qty 1)
- 3-2 1/2-13 X 3.75 Hex Bolt-Grade 5 (Qty 1)
- 4-2 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 5-2 .502x.750x1.130 Length Spacer (Qty 1)
- 6-2 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 7-2 Idler Bracket (Qty 1)
- 1-3 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing (Qty 1)
- 2-3 2015 Spindle Spacer (Qty 1)
- 3-3 Collar Spacer - Top of Spindle (Qty 1)
- 4-3 Dust Cover for 037-8000-00 - (Qty 2)
- 5-3 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 6-3 OBSOLETE USE 037-6029-00 (Qty 4)
-
1-11-2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
2-1#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
3-15-2#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
4-16-2#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
5-17-2#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
2-2#014-4005-00
61" Revolt Idler Pulley Cover--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
3-2#018-0051-00
1/2-13 X 3.75 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.29 USDRegular priceUnit price per
-
4-2#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
1-3#037-4000-01
2017 Outlaw/XP/Diesel Cast Iron Spindle Housing
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
2-3#037-4002-00
2015 Spindle Spacer
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
3-3#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
4-3#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
5-3#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
6-3#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
