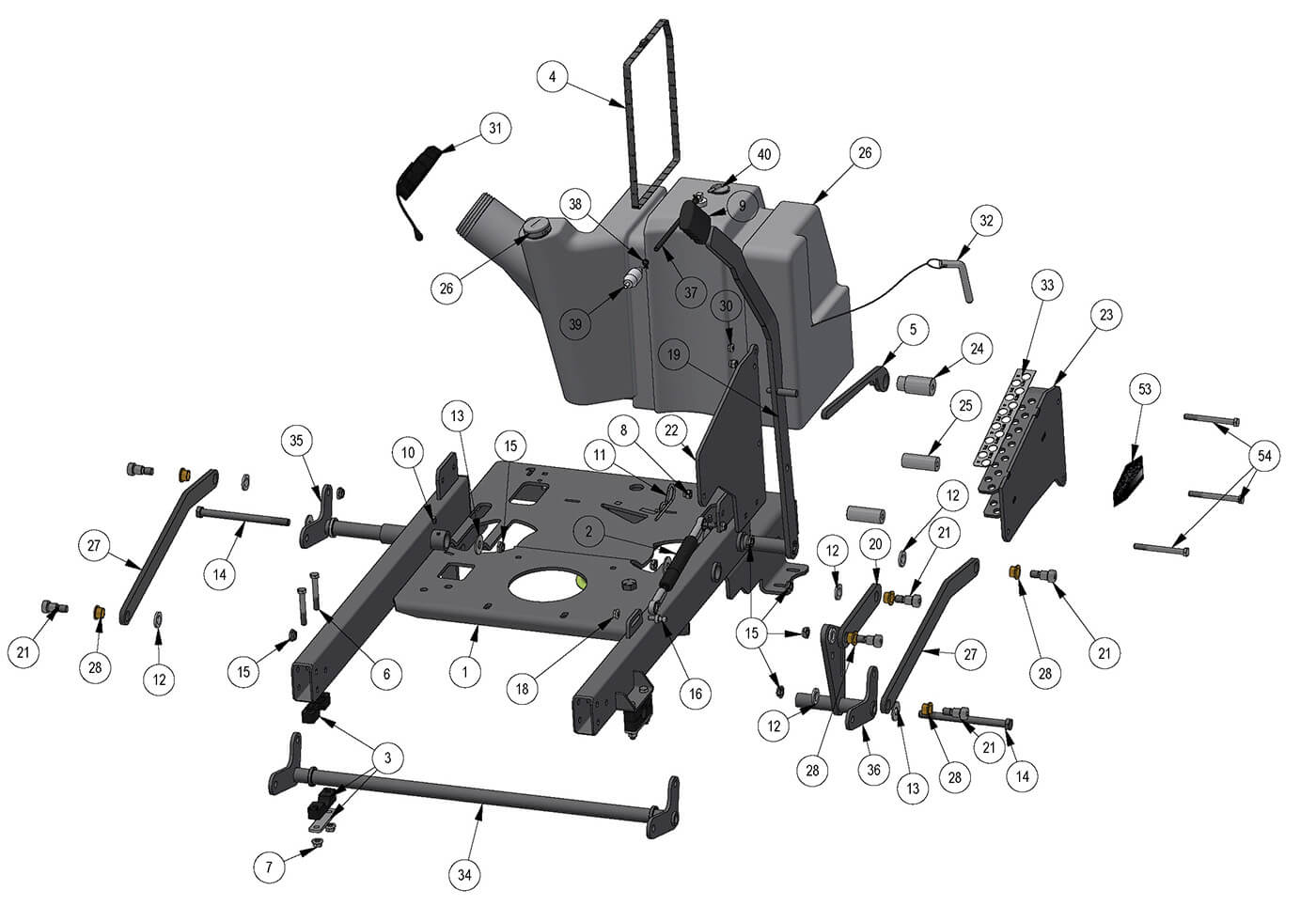

Deck Height
Parts Index
- 1 2019 Stand On Frame--Orange (Qty 1)
- 2 2019 Stand On Frame--Orange (Qty 1)
- 3 Pillow Block (Qty 2)
- 4 Band 13.5" (Qty 2)
- 5 2019 Stand On Deck Lever Lock--Black (Qty 1)
- 6 3/8x2 1/2" Hex Bolt (Qty 4)
- 7 3/8 Nylock Flange Nut (Qty 4)
- 8 3/8-16 Nylon Insert Locknut Zi (Qty 3)
- 9 Grip (Deck Lift) (Qty 1)
- 10 1/8" Drive-in Grease Fitting No Ball (Qty 3)
- 12 .630 ID X 1.122 OD X .142 THK (Qty 8)
- 13 1/2 Flat Washer (Qty 4)
- 14 1/2-13 x 6 1/2 Hex Bolt Grade 5 (Qty 2)
- 15 1/2-13 Nylon Insert Jam Locknut (Qty 9)
- 16 10mm Ball Stud (Long Thread) (Qty 2)
- 18 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 19 2023 Revolt Lift Lever--Orange (Qty 1)
- 20 Lever Secondary Linkage--Black (Qty 1)
- 21 5/8 x 5/8 Shoulder Bolt (Qty 6)
- 24 Stand On Spacer 2.5" With Shoulder (Qty 1)
- 25 Revolt Spacer 2.5" (Qty 2)
- 26 2023 Revolt Tank (Qty 1)
- 27 2023 Stand On Actuator Linkage--Black (Qty 2)
- 28 Bronze Bushing - SF-2024-8 (Qty 6)
- 30 1/4-20 Nylon Insert Flange Nut (Qty 1)
- 31 Fuel Cap for 2023 48"/54"/61" Revolt (Qty 1)
- 32 2023 Revolt Deck Height Pin (Qty 1)
- 33 Revolt Deck Height Indicator (Qty 1)
- 34 Front Actuator Bar Weldment--Black (Qty 1)
- 35 Rear Actuator Bar Weldment-RH-Black (Qty 1)
- 36 Rear Actuator Bar Weldment-LH--Black (Qty 1)
- 37 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 38 1/4 Fuel Line Clamp (Qty 2)
- 39 OBSOLETE USE 063-6000-00 (Qty 1)
- 40 Rollover Valve and Grommet New (Qty 1)
- 54 3/8’’-16 x 3 ¾’’ Hex bolt Grade 5 (Qty 3)
-
12#070-5220-19
2019 Stand On Frame--Orange
Qty Used: 1Regular price $749.99 USDRegular priceUnit price per
-
3#017-9076-00
Pillow Block
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
4#072-0051-00
Band 13.5"
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
5#031-0093-00
2019 Stand On Deck Lever Lock--Black
Qty Used: 1Regular price $22.54 USDRegular priceUnit price per
-
6#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
7#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
8#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
9#069-4012-00
Grip (Deck Lift)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
10#024-3050-00
1/4" Drive-in Grease Fitting
Qty Used: 3Regular price $0.99 USDRegular priceUnit price per
-
12#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
13#019-2040-00
1/2 Flat Washer
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
14#018-0038-00
1/2-13 x 6 1/2 Hex Bolt Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
15#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 9Regular price $1.59 USDRegular priceUnit price per
-
16#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
18#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#031-7153-00
2023 Revolt Lift Lever--Orange
Qty Used: 1Regular price $69.95 USDRegular priceUnit price per
-
21#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 6Regular price $14.59 USDRegular priceUnit price per
-
24#025-0081-00
Stand On Spacer 2.5" With Shoulder
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
25#025-5343-00
Revolt Spacer 2.5"
Qty Used: 2Regular price $10.29 USDRegular priceUnit price per
-
26#067-0030-23
2023 Revolt Tank
Qty Used: 1Regular price $475.00 USDRegular priceUnit price per
-
28#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 6Regular price $4.37 USDRegular priceUnit price per
-
30#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
31#066-8070-00
Fuel Cap for 2023 48"/54"/61" Revolt
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
32#040-4004-00
2023 Revolt Deck Height Pin
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
33#091-0025-00
Revolt Deck Height Indicator
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
36#028-0048-00
Rear Actuator Bar Weldment-LH--Black
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
37#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
38#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
39#015-0200-00
OBSOLETE USE 063-6000-00
Qty Used: 1Regular price $13.94 USDRegular priceUnit price per
-
40#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
54#018-0084-00
3/8’’-16 x 3 ¾’’ Hex bolt Grade 5
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
