Podium 2

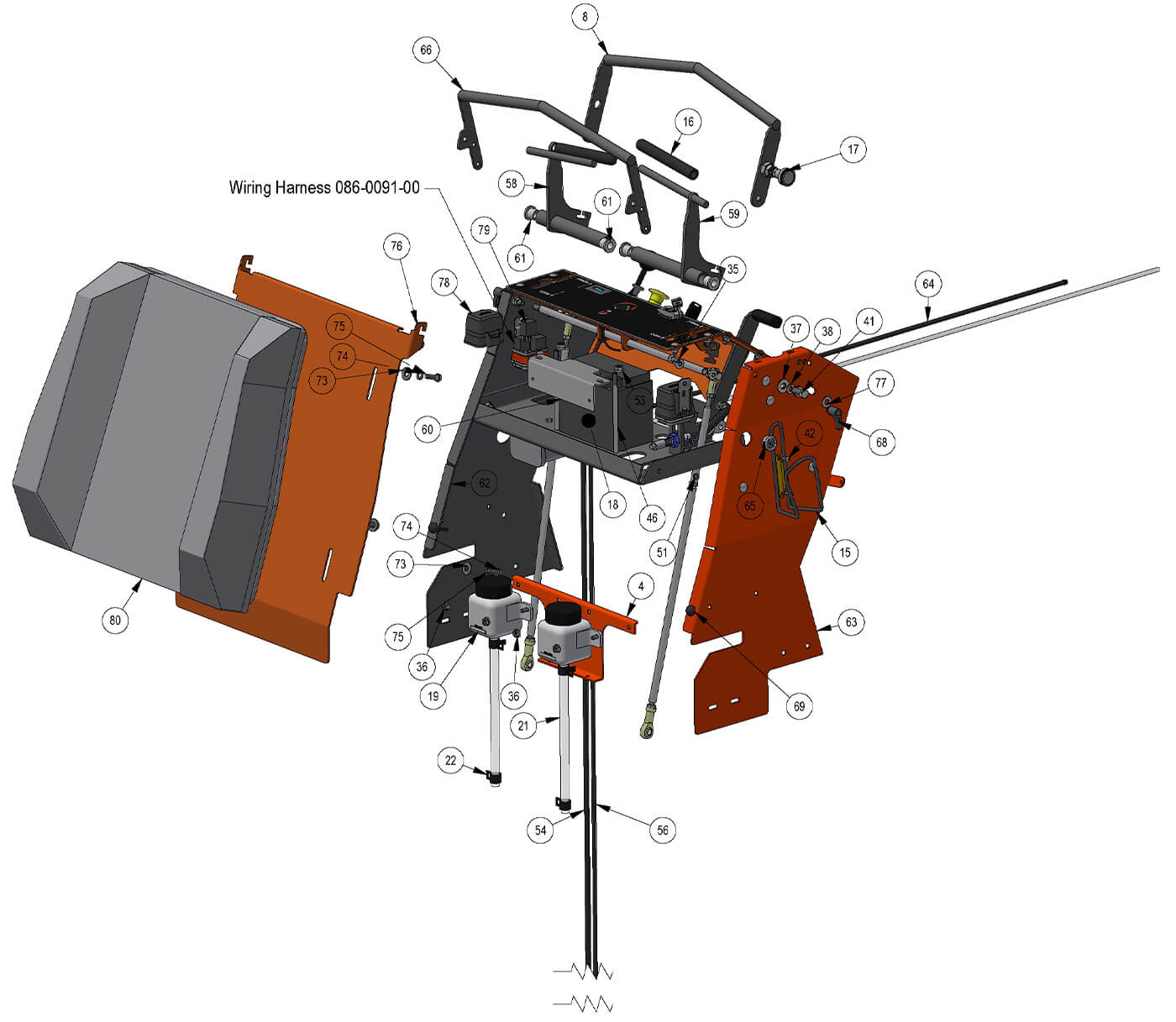

Parts Index
- 8 36" Front Control Arm Stop Weldment--Black (Qty 1)
- 15 2019 Stand-On Cup Holder (Qty 1)
- 16 2019 Revolt Cushioned hand Grip (Qty 2)
- 17 Plunger 5/8-11 All Stainless Steel (Qty 1)
- 18 Revolt Battery (Qty 1)
- 19 71328-Expansion Tank CZT/ZT (Qty 2)
- 21 2017 ZT/ Maverick Hydro Tank Hose (Qty 2)
- 22 3/8 Hose Clamp - CTB-16-STFS (Qty 2)
- 35 1/4 x 3/4 Carriage Bolt (Qty 14)
- 36 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 37 3/8 USS Flat Washer Zinc (Qty 2)
- 38 3/8 Lockwasher Zinc (Qty 2)
- 41 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 42 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 46 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 51 10-24 Nylon Insert Locknut Zin (Qty 4)
- 53 5/16-18 Nylon Flange Nut (Qty 13)
- 54 1/4 Vinyl 46" EPA Line (Qty 1)
- 56 3/16 Vinyl 55" EPA Line (Qty 1)
- 61 2023 Revolt Drive Arm Bushings (Qty 4)
- 62 2023 Podium Panel Left--Orange (Qty 1)
- 63 2023 Podium Panel Right--Orange (Qty 1)
- 64 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 66 36-SD Control Arm Stop Weldment--Black (Qty 1)
- 68 2023 Revolt Platform adjustable handles (Qty 2)
- 69 2023 Floor Board Rubber Bumpers (Qty 2)
- 73 5/16 USS Flat Washer Zinc (Qty 4)
- 74 5/16 Lock washer Zinc (Qty 4)
- 75 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 77 .360 ID Plastic Washer (Qty 2)
- 78 2019 Relay Cap Kit (Qty 2)
- 79 2019 Relay Terminal (Qty 8)
- 80 2025 3-Piece 36" Revolt Pad (Qty 1)
-
8#031-0034-00
36" Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
15#071-6005-00
2019 Stand-On Cup Holder
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
16#069-2014-00
2019 Revolt Cushioned hand Grip
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
17#069-0002-00
Plunger 5/8-11 All Stainless Steel
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
18#068-8051-00
2019 Stand-On Battery
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
19#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
21#051-0016-00
2017 ZT/ Maverick Hydro Tank Hose
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
22#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
35#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
36#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
37#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
38#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
41#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
42#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
46#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
51#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
53#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 13Regular price $0.79 USDRegular priceUnit price per
-
54#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
56#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
61#032-0005-00
2023 Revolt Drive Arm Bushings
Qty Used: 4Regular price $1.89 USDRegular priceUnit price per
-
62#026-0280-00
2023 Podium Panel Left--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
63#026-0270-00
2023 Podium Panel Right--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
64#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
68#045-0001-00
2023 Revolt Platform adjustable handles
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
69#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
73#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
74#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
75#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
77#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
78#086-1202-01
2019 Relay Cap Kit
Qty Used: 2Regular price $17.24 USDRegular priceUnit price per
-
79#086-1202-19
2019 Relay Terminal
Qty Used: 8Regular price $23.34 USDRegular priceUnit price per
