Podium

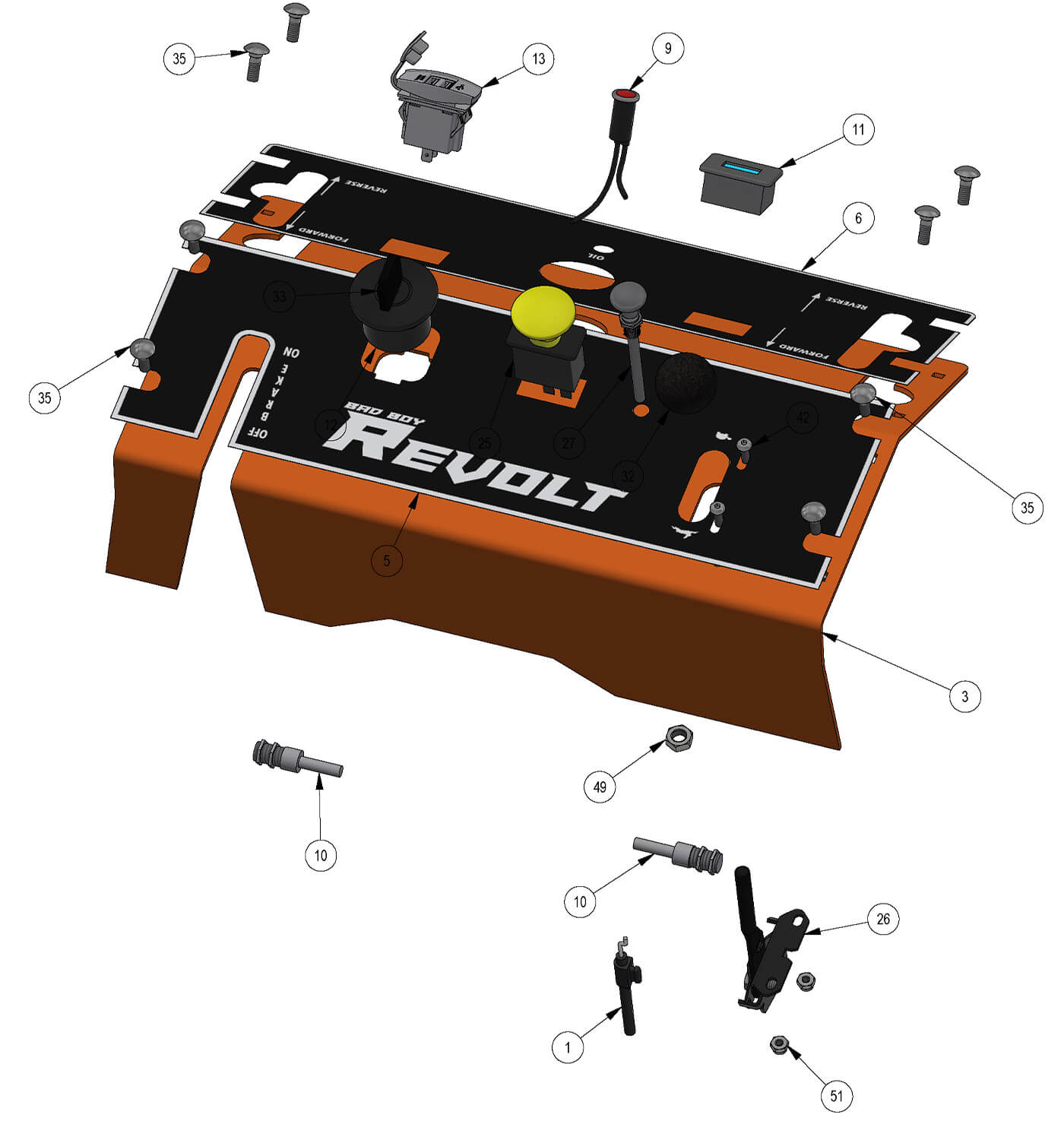

Parts Index
- 1 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 3 36" Podium Front Panel Weldment--Orange (Qty 1)
- 5 36" Control Panel (lower) (Qty 1)
- 6 36" Control Panel (upper) (Qty 1)
- 9 Oil Light (Qty 1)
- 10 Safety Switch Harness (Qty 2)
- 11 Tachometer-N310-0100-1018 (Qty 1)
- 12 Ignition Switch (Qty 1)
- 13 USB Port (Qty 1)
- 25 PTO Engager-Switch for Blades (Qty 1)
- 26 Universal Throttle Head - 2012 (Qty 1)
- 27 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 32 Throttle / Brake Head Ball (Qty 1)
- 35 1/4 x 3/4 Carriage Bolt (Qty 1)
- 42 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 49 3/8-24 Hex Nut Zinc (Qty 1)
- 51 10-24 Nylon Insert Locknut Zin (Qty 4)
- 33 Ignition Key (Qty 1)
-
1#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
3#079-4113-00
36" Podium Front Panel Weldment--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
5#091-4057-00
36" Control Panel (lower)
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
6#091-4056-00
36" Control Panel (upper)
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
-
10#086-0015-00
Safety Switch Harness
Qty Used: 2Regular price $65.67 USDRegular priceUnit price per
-
11#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
12#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
-
25#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
26#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
27#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
32#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
35#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
42#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
49#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
51#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
33#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
