Frame

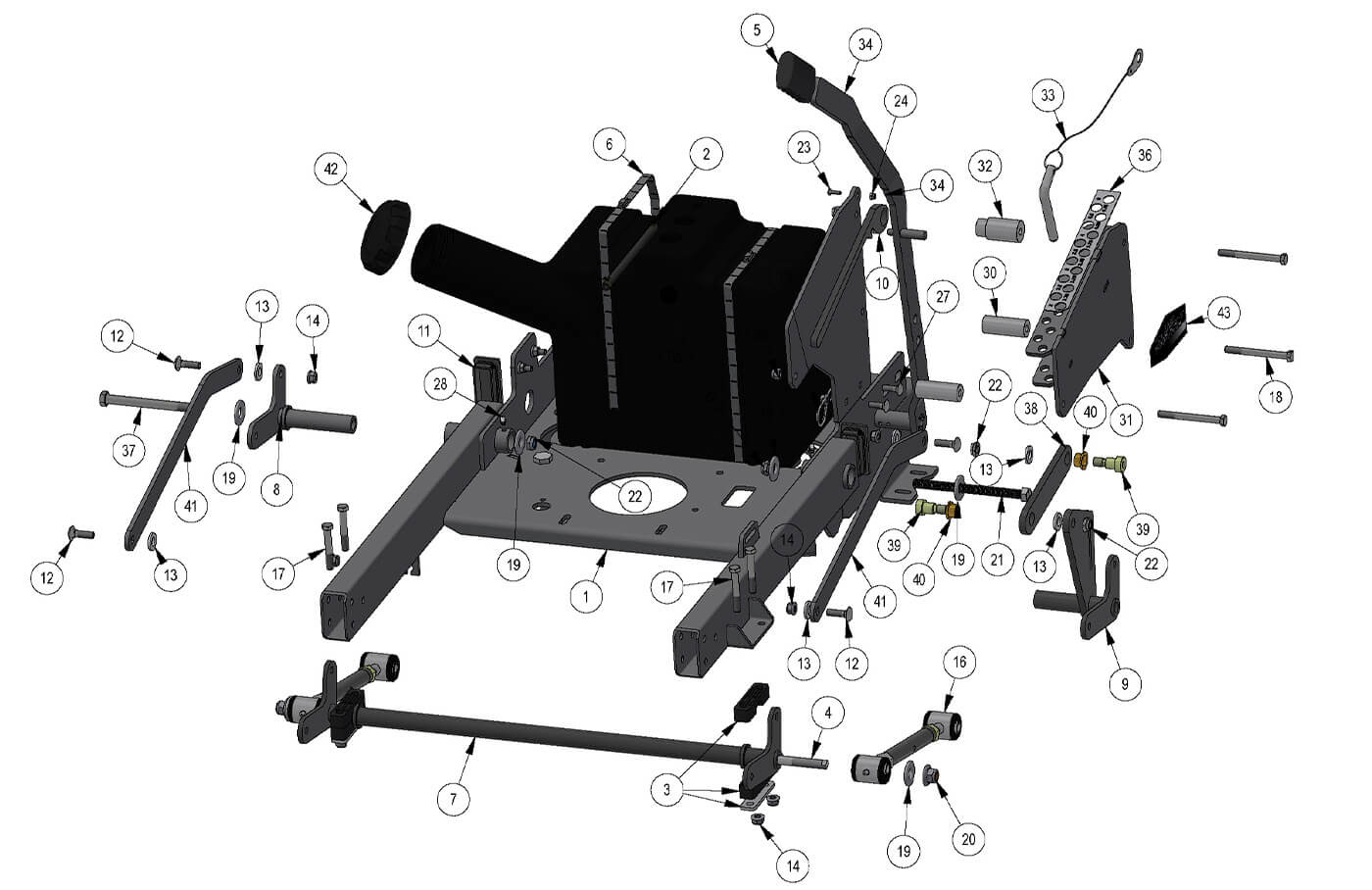

Parts Index
- 1 2020 36" Stand On Frame--Orange (Qty 1)
- 2 Revolt Fuel Line Assy (Qty 1)
- 3 Pillow Block (Qty 2)
- 4 2020 36" Stand On Turnbuckle Rod (Qty 1)
- 5 Grip (Deck Lift) (Qty 1)
- 6 Band 13.5" (Qty 2)
- 7 Revolt Front Actuator Bar Weldment--Black (Qty 1)
- 8 Revolt Rear Actuator Bar Weldment-RH--Black (Qty 1)
- 10 2019 Stand On Deck Lever Lock--Black (Qty 1)
- 11 1 1/2x 3 Frame Plug (Qty 2)
- 12 3/8-16 X 1-1/4 Carriage Bolt (Qty 4)
- 13 .505 ID X 1 OD X .128 THK Washer (Qty 6)
- 14 3/8 Nylock Flange Nut (Qty 8)
- 16 Toplink (Qty 2)
- 17 3/8x2 1/2" Hex Bolt (Qty 4)
- 18 3/8’’-16 x 3 ¾’’ Hex bolt Grade 5 (Qty 3)
- 19 1/2 Flat Washer (Qty 6)
- 20 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 21 1/2-13 x 6 1/2 Hex Bolt Grade 5 (Qty 1)
- 22 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 23 10-24 X 5/8 BS C/S 18-8 SS (Qty 1)
- 24 10-24 Nylon Insert Locknut Zin (Qty 1)
- 25 3/8-16 Nylon Insert Locknut Zi (Qty 3)
- 26 5/16-18 Nylon Flange Nut (Qty 4)
- 27 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 28 1/8" Drive-in Grease Fitting No Ball (Qty 3)
- 30 Revolt Spacer 2.5" (Qty 2)
- 32 Stand On Spacer 2.5" With Shoulder (Qty 1)
- 33 2023 Revolt Deck Height Pin (Qty 1)
- 35 Stand-On/Revolt Fuel Tank (Qty 1)
- 36 Revolt Deck Height Indicator (Qty 1)
- 37 1/2-13x5 1/2 Hex Bolt Grade 5 (Qty 1)
- 38 Lever Secondary Linkage--Black (Qty 1)
- 39 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 40 Bronze Bushing - SF-2024-8 (Qty 2)
- 42 Fuel Kelch Cap - 3.5 Neck (Qty 1)
-
No sequence found for SKU:
Revolt Fuel Line Assy
Regular price $0.00 USDRegular priceUnit price per
-
3#017-9076-00
Pillow Block
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
4#048-6058-00
2020 36" Stand On Turnbuckle Rod
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
5#069-4012-00
Grip (Deck Lift)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
6#072-0051-00
Band 13.5"
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
7#028-0036-00
Revolt Front Actuator Bar Weldment--Black
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
8#028-0037-00
Revolt Rear Actuator Bar Weldment-RH--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
10#031-0093-00
2019 Stand On Deck Lever Lock--Black
Qty Used: 1Regular price $22.54 USDRegular priceUnit price per
-
11#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
12#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
13#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
14#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
-
17#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
18#018-0084-00
3/8’’-16 x 3 ¾’’ Hex bolt Grade 5
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
19#019-2040-00
1/2 Flat Washer
Qty Used: 6Regular price $1.39 USDRegular priceUnit price per
-
20#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
21#018-0038-00
1/2-13 x 6 1/2 Hex Bolt Grade 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
22#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
23#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
24#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
25#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
26#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
27#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
28#024-3050-00
1/4" Drive-in Grease Fitting
Qty Used: 3Regular price $0.99 USDRegular priceUnit price per
-
30#025-5343-00
Revolt Spacer 2.5"
Qty Used: 2Regular price $10.29 USDRegular priceUnit price per
-
32#025-0081-00
Stand On Spacer 2.5" With Shoulder
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
33#040-4004-00
2023 Revolt Deck Height Pin
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
35#067-0030-00
Stand-On/Revolt Fuel Tank
Qty Used: 1Regular price $229.99 USDRegular priceUnit price per
-
36#091-0025-00
Revolt Deck Height Indicator
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
37#018-1090-00
1/2-13x5 1/2 Hex Bolt Grade 5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
39#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
40#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
42#066-8076-00
Fuel Kelch Cap - 3.5 Neck
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
