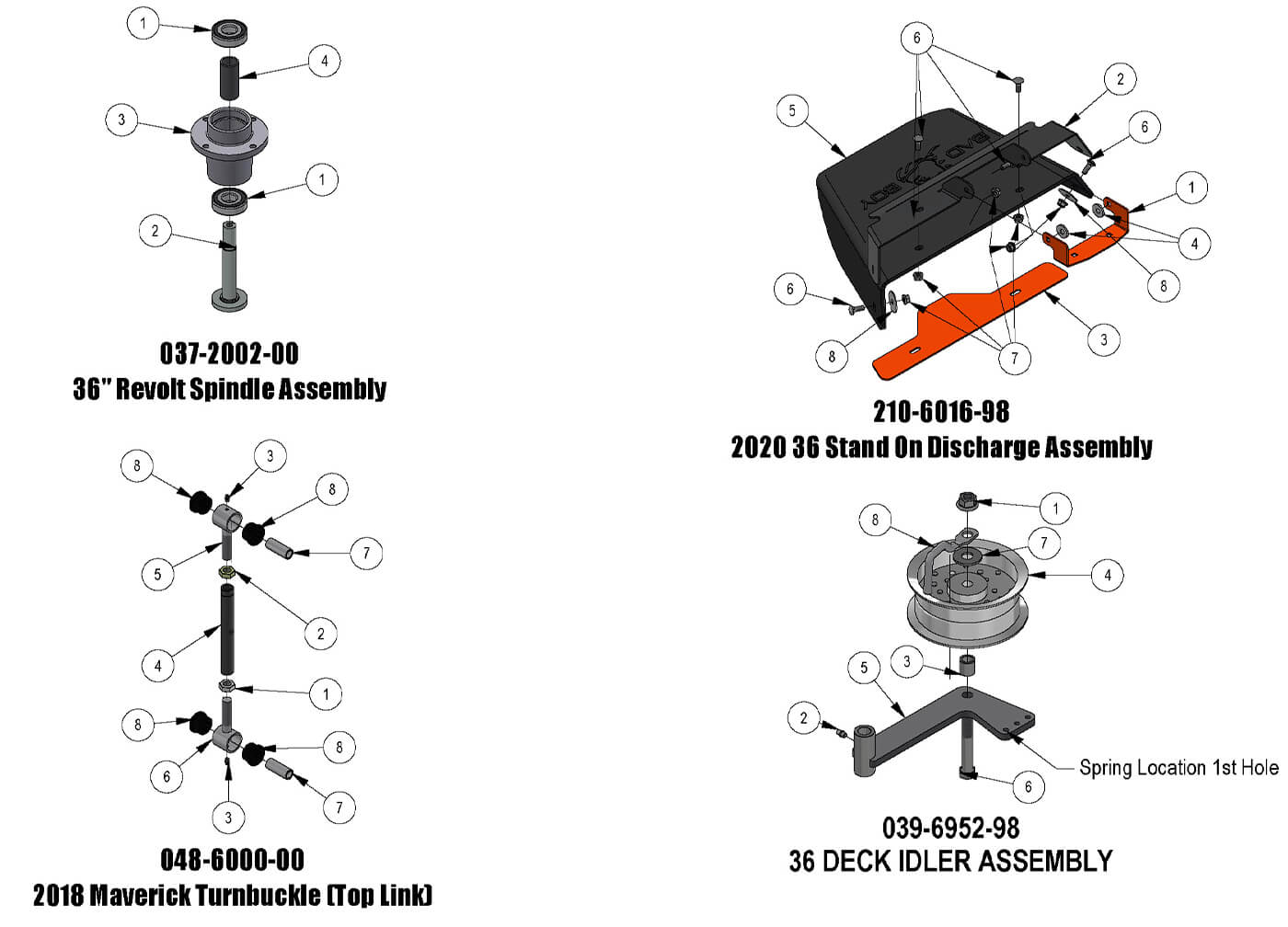

36" Deck Assemblies
Parts Index
- 1 MZ Spindle Bearing (Qty 2)
- 1.1 MZ Spindle Spacer-Component (Qty 1)
- 1.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 1.3 Nut, 5/8-18 RH (Qty 1)
- 2 36" Revolt Spindle Shaft (Qty 1)
- 2.1 Discharge Chute Bracket 48 MZ (Qty 1)
- 2.2 1/4-28 Threaded Grease Fitting (Qty 1)
- 2.3 Nut, 5/8-18 LH (Qty 1)
- 3 MZ Spindle Housing (Qty 1)
- 3.1 OBSOLETE USE 039-4890-00 (Qty 1)
- 3.2 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 3.3 1/4-28 Threaded Grease Fitting (Qty 2)
- 4 MZ Spindle Spacer-Component (Qty 1)
- 4.1 .360 ID Plastic Washer (Qty 2)
- 4.2 Double Bearing Flat Idler (Qty 1)
- 4.3 2018 Maverick Toplink Body (Qty 1)
- 5 2017 MZ Discharge Chute Rubber (Qty 1)
- 5.1 2020 SD/36" Deck Idler Weldment--Plated (Qty 1)
- 5.2 2018 Maverick Topllink Bushing Retainer-Left Hand (Qty 1)
- 6 5/16 x 7/8 Carriage Bolt (Qty 6)
- 6.1 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 1)
- 6.2 2018 Maverick Topllink Bushing Retainer-Right Hand (Qty 1)
- 7 5/16-18 Nylon Flange Nut (Qty 6)
- 7.1 1/2 Flat Washer (Qty 1)
- 7.2 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 8 5/16" Fender Washer (Qty 2)
- 8.1 Long Belt Retainer (Qty 1)
- 8.2 2018 Maverick Topllink Bushing (Qty 4)
-
1#037-6024-00
MZ Spindle Bearing
Qty Used: 2Regular price $32.10 USDRegular priceUnit price per
-
1.14#037-6028-00
MZ Spindle Spacer-Component
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
1.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
1.3#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
2#037-6025-01
36" Revolt Spindle Shaft
Qty Used: 1Regular price $59.00 USDRegular priceUnit price per
-
2.1#039-4891-00
Discharge Chute Bracket 48 MZ
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
2.23.3#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
2.3#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
3#037-6027-00
MZ Spindle Housing
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
3.1#039-4892-00
OBSOLETE USE 039-4890-00
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
3.2#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
4.1#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
4.2#033-5000-00
Double Bearing Flat Idler
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
4.3#048-6001-00
2018 Maverick Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
5#210-6014-00
2017 MZ Discharge Chute Rubber
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
5.1#039-6952-00
2020 SD/36" Deck Idler Weldment--Plated
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
5.2#048-6002-00
2018 Maverick Topllink Bushing Retainer-Left Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
6#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
6.1#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
6.2#048-6003-00
2018 Maverick Topllink Bushing Retainer-Right Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
7#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
7.1#019-2040-00
1/2 Flat Washer
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
7.2#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
8#019-0002-00
5/16" Fender Washer
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
8.1#039-0400-00
Small Mower Belt Retainer
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
8.2#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
