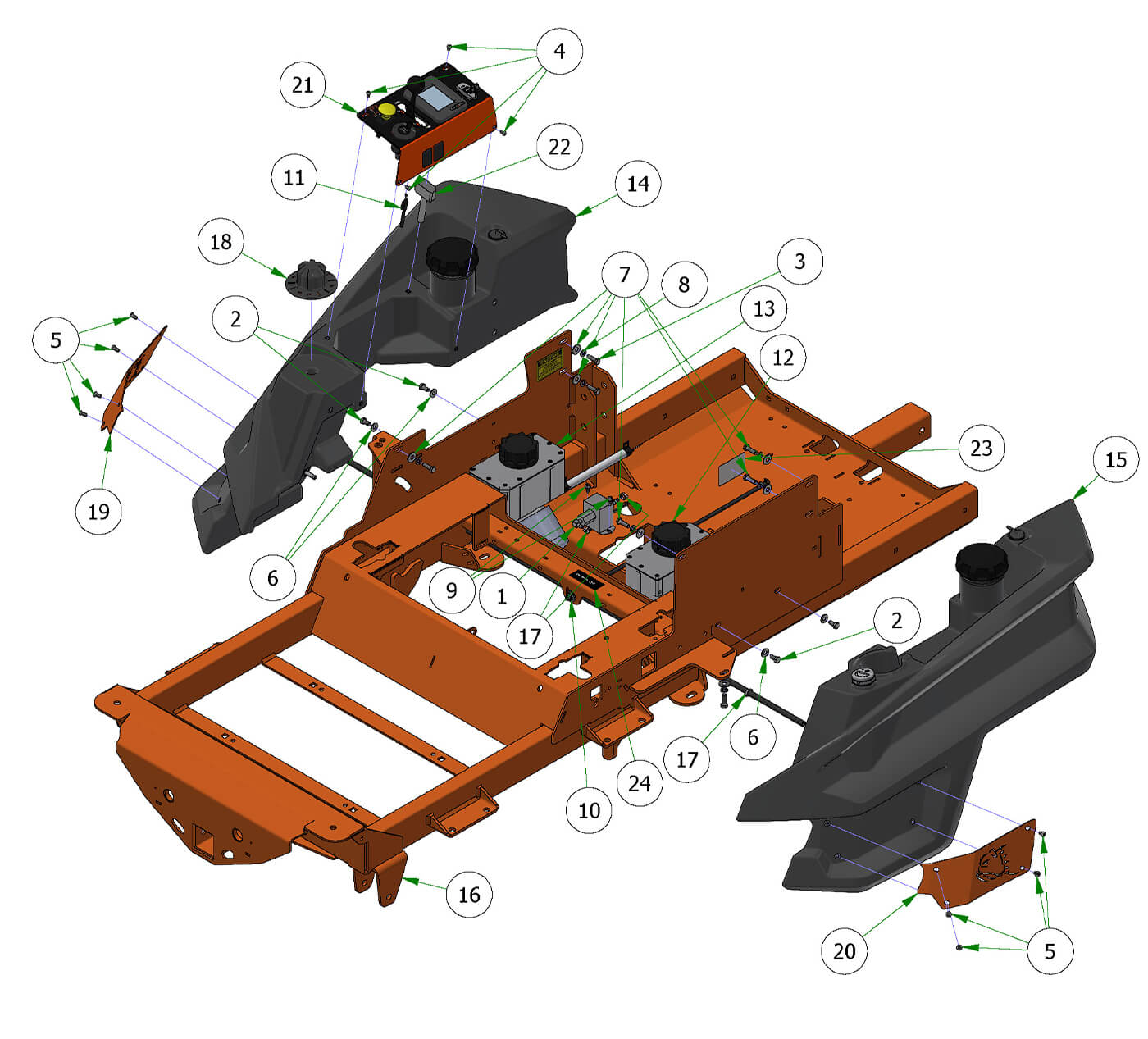

Tanks
Parts Index
- 1 Fuel Pump Kit for 015-9990-00 (ECH980-3037) (Qty 1)
- 2 5/16-18 x 5/8 Hex Bolt (Qty 4)
- 3 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 8)
- 4 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 5 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 8)
- 6 1/4 USS Flat Washer Zinc (Qty 4)
- 7 5/16 USS Flat Washer Zinc (Qty 8)
- 8 5/16 Lock washer Zinc (Qty 8)
- 9 1/4-20x1/2 HWH Bolt Slot Type (Qty 2)
- 11 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 12 LH Renegade Hydro Tank Assy (Qty 1)
- 13 RH Renegade Hydro Tank Assy (Qty 1)
- 14 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
- 15 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
- 16 2019 Horizontal Gas Frame--Orange (Qty 1)
- 17 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 4)
- 18 Deck Height Dial (2 - 6) (Qty 1)
- 19 Fuel Tank Insert--RH--Orange (Qty 1)
- 20 Fuel Tank Insert--LH--Orange (Qty 1)
- 21 Renegade Control Panel ASSY (Qty 1)
- 22 2019 LCD Panel Harness-Renegade (Qty 1)
- 23 Yellow Hydraulic Decal (Qty 2)
- 24 R-Series Shut Off Valve Decal (Qty 1)
-
1#015-9990-03
Fuel Pump Kit for 015-9990-00 (ECH980-3037)
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
2#018-0068-00
5/16-18 x 5/8 Hex Bolt
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
3#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
4#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
5#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
6#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
7#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
8#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
9#030-7041-00
1/4-20x1/2 HWH Bolt Slot Type
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
12#067-8053-18
LH Renegade Hydro Tank Assy
Qty Used: 1Regular price $201.96 USDRegular priceUnit price per
-
13#067-8054-18
RH Renegade Hydro Tank Assy
Qty Used: 1Regular price $201.96 USDRegular priceUnit price per
-
14#067-9950-50
2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
15#067-9960-50
2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
16#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
17#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
18#077-9001-00
Deck Height Dial (2 - 6)
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
19#079-3290-00
Fuel Tank Insert--RH--Orange
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
20#079-3291-00
Fuel Tank Insert--LH--Orange
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
21#079-3482-19
Renegade Control Panel ASSY
Qty Used: 1Regular price $309.99 USDRegular priceUnit price per
-
22#086-0012-00
2019 LCD Panel Harness-Renegade
Qty Used: 1Regular price $329.99 USDRegular priceUnit price per
-
23#091-1020-00
Yellow Hydraulic Decal
Qty Used: 2Regular price $1.46 USDRegular priceUnit price per
-
No sequence found for SKU:
R-Series Shut Off Valve Decal
Regular price $0.00 USDRegular priceUnit price per
