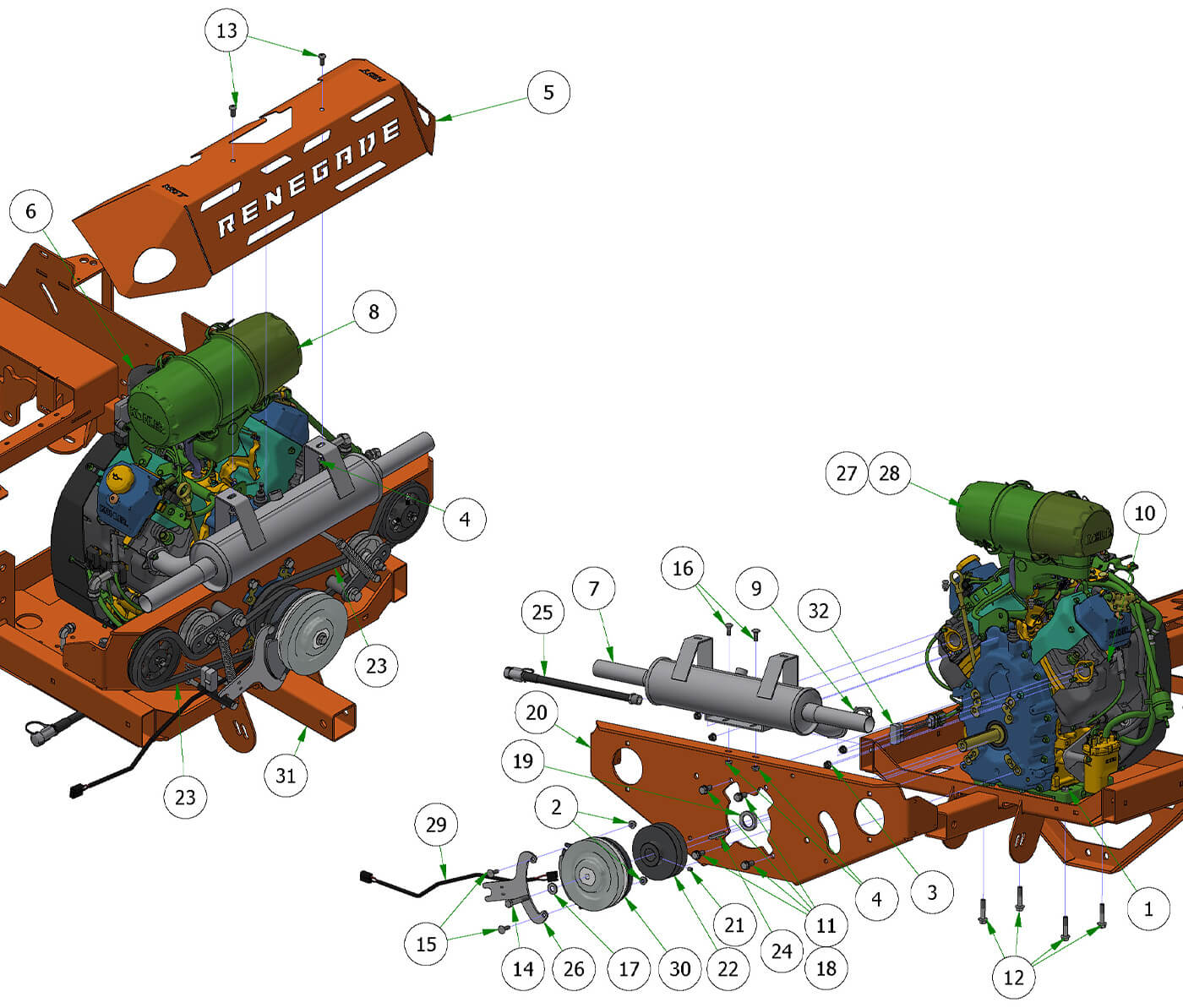

Engine Mounting
Parts Index
- 1 3/8-16 Hex Flange Top L/N (Qty 8)
- 2 5/16-18 Nylon Flange Nut (Qty 2)
- 3 M8 Nut fits the 015-9990-00/015-9991-00 (Qty 4)
- 4 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 5 2023 Renegade Muffler Cover--Orange (Qty 1)
- 6 Oil Filter for 015-0077-00/015-9990-00/015-9991-00 (Qty 1)
- 7 KOHLER ECH MUFFLER (Qty 1)
- 8 2019 Kohler 38HP EFI 999 ECH 980 (Qty 1)
- 9 KOHLER ECH 980 GASKET (Qty 2)
- 11 7/16-14 x 1 Hex Bolt GR 5 Zinc (Qty 4)
- 12 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 4)
- 13 5/16-18 X 3/4 Bolt (Qty 2)
- 14 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 15 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 16 5/16 x 7/8 Carriage Bolt (Qty 2)
- 17 3/8 USS Flat Washer Zinc (Qty 1)
- 18 7/16 Lock washer zinc (Qty 4)
- 19 Horizontal Engine Spacer (Qty 1)
- 20 Pump Plate--Orange (Qty 1)
- 21 5/16-24 X 3/8 Set Screw (Qty 1)
- 22 Renegade Horizontal Double V Pulley (Qty 1)
- 23 2020 Renegade Pump Belt (Qty 2)
- 24 1/4 X 2 Square Key Stock (Qty 1)
- 26 2019 Outlaw Renegade Clutch Bracket--Plated (Qty 1)
- 27 Canister Air Fil Outer2010&Old (Qty 1)
- 28 Canister Air Filter - Inner (Qty 1)
- 29 Clutch Pigtail (Qty 1)
- 30 Renegade Clutch (Qty 1)
- 31 2019 Horizontal Gas Frame--Orange (Qty 1)
- 32 KOHLER ECH 980 ENGINE ADAPTER (Qty 1)
-

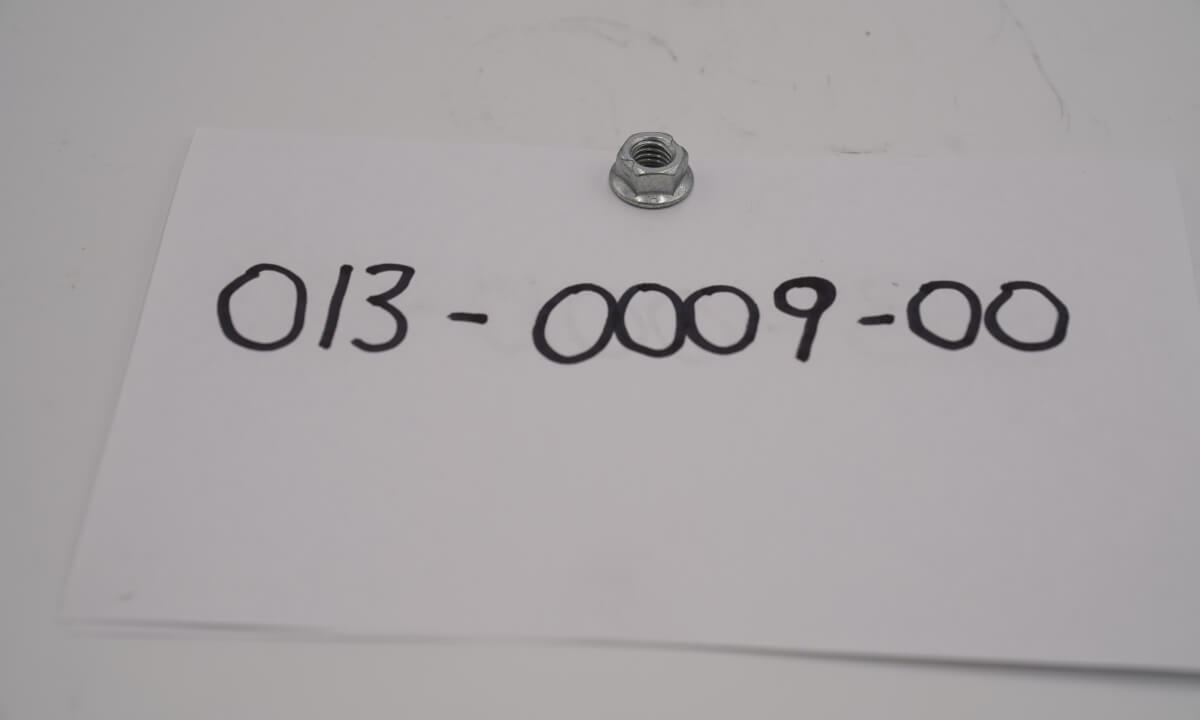

1#013-0009-00
3/8-16 Hex Flange Top L/N
Qty Used: 8Regular price $1.99 USDRegular priceUnit price per
-
2#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3#013-8240-00
M8 Nut fits the 015-9990-00/015-9991-00
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-

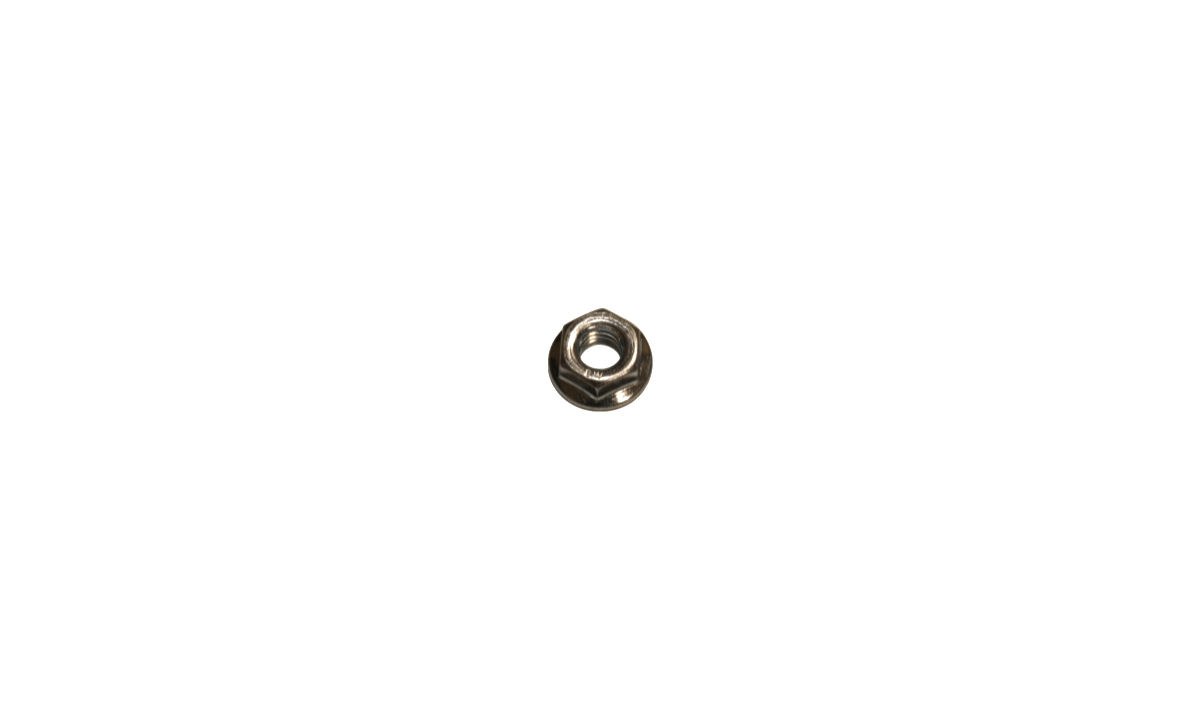

4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-

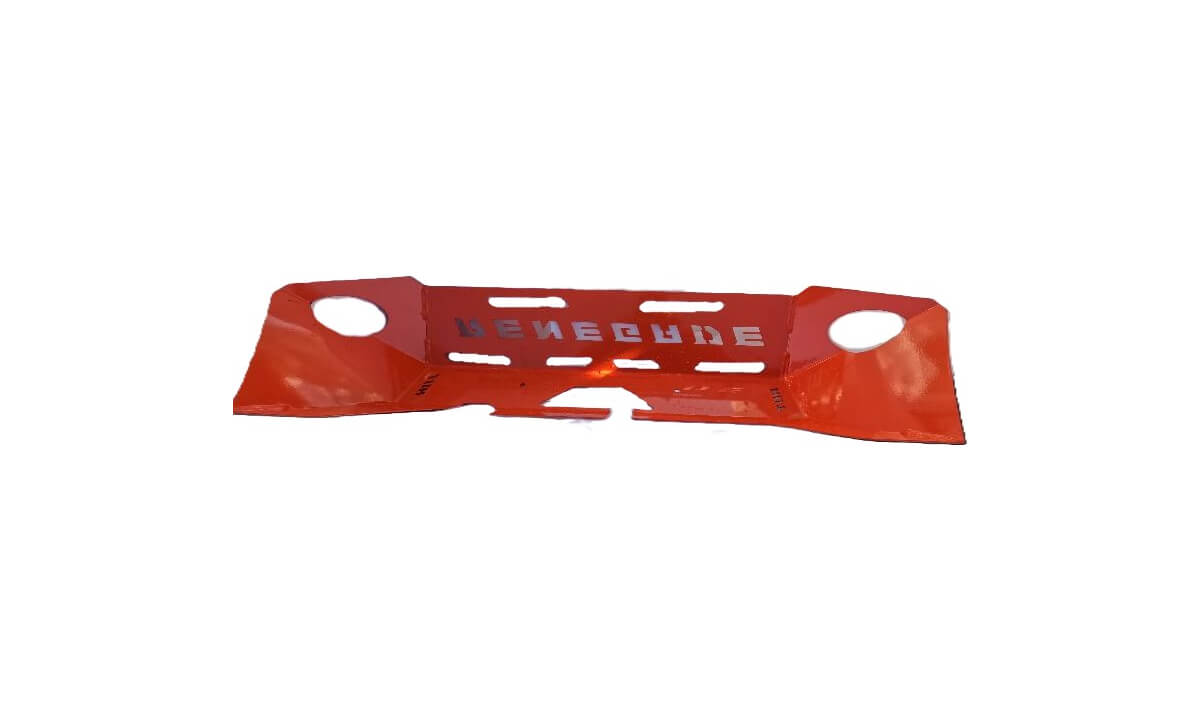

5#014-5066-00
2023 Renegade Muffler Cover--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-

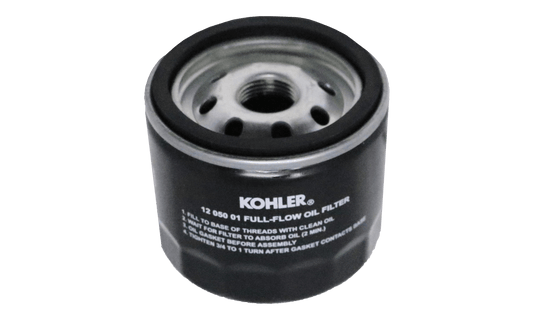

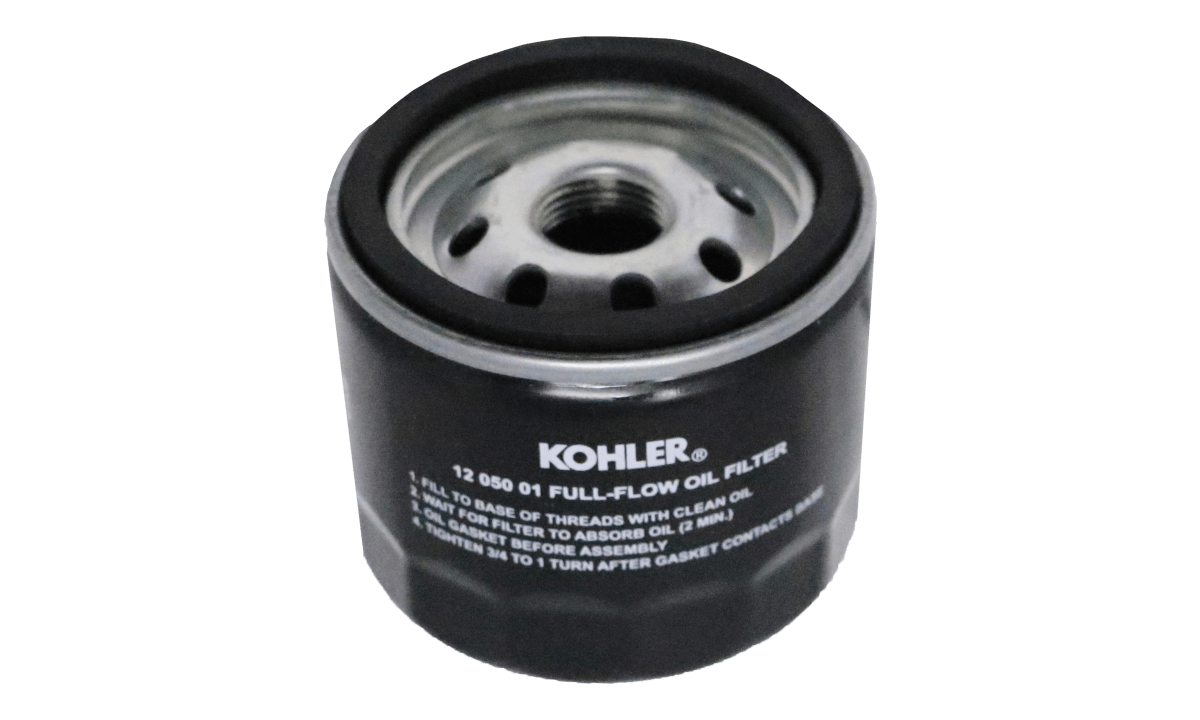

6#015-0077-04
Oil Filter for 015-0077-00/015-9990-00/015-9991-00
Qty Used: 1Regular price $22.54 USDRegular priceUnit price per
-
7#015-1027-00
KOHLER ECH MUFFLER
Qty Used: 1Regular price $154.99 USDRegular priceUnit price per
-
8#015-9990-00
2019 Kohler 38HP EFI 999 ECH 980
Qty Used: 1Regular price $2,999.99 USDRegular priceUnit price per
-
9#015-9990-01
KOHLER ECH 980 GASKET
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
11#018-0053-00
7/16-14 x 1 Hex Bolt GR 5 Zinc
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-

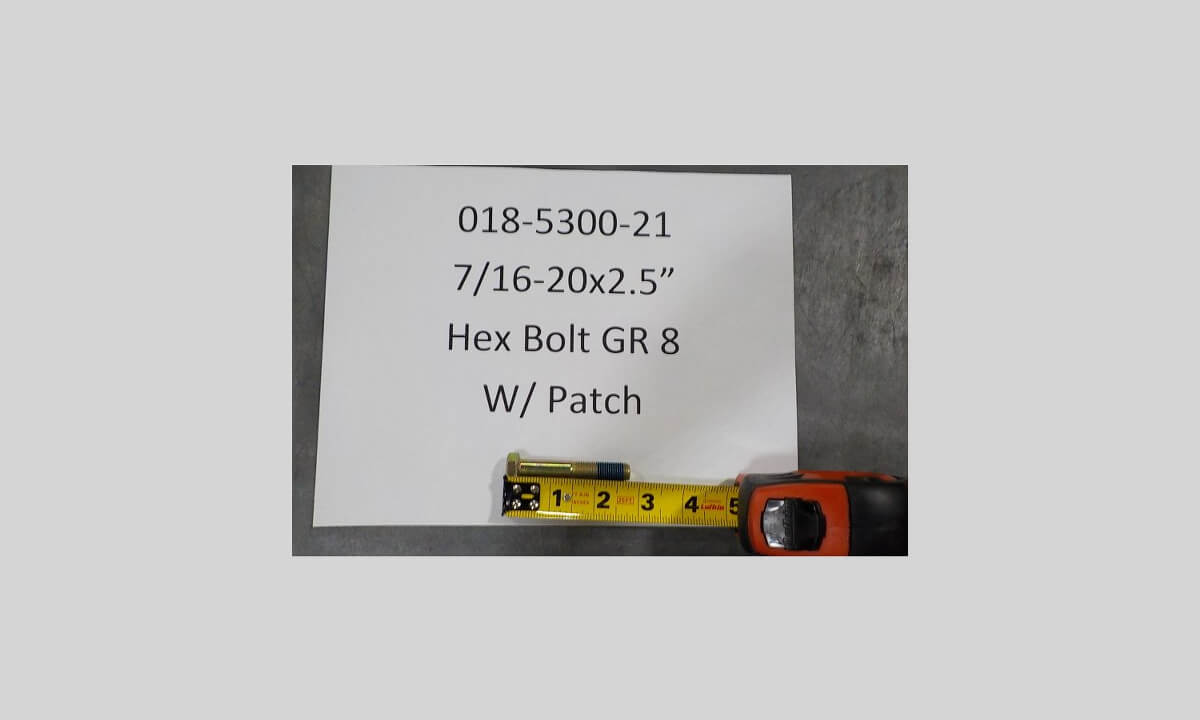

1214#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
13#018-5007-00
5/16-18 X 3/4 Bolt
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
15#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
16#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-

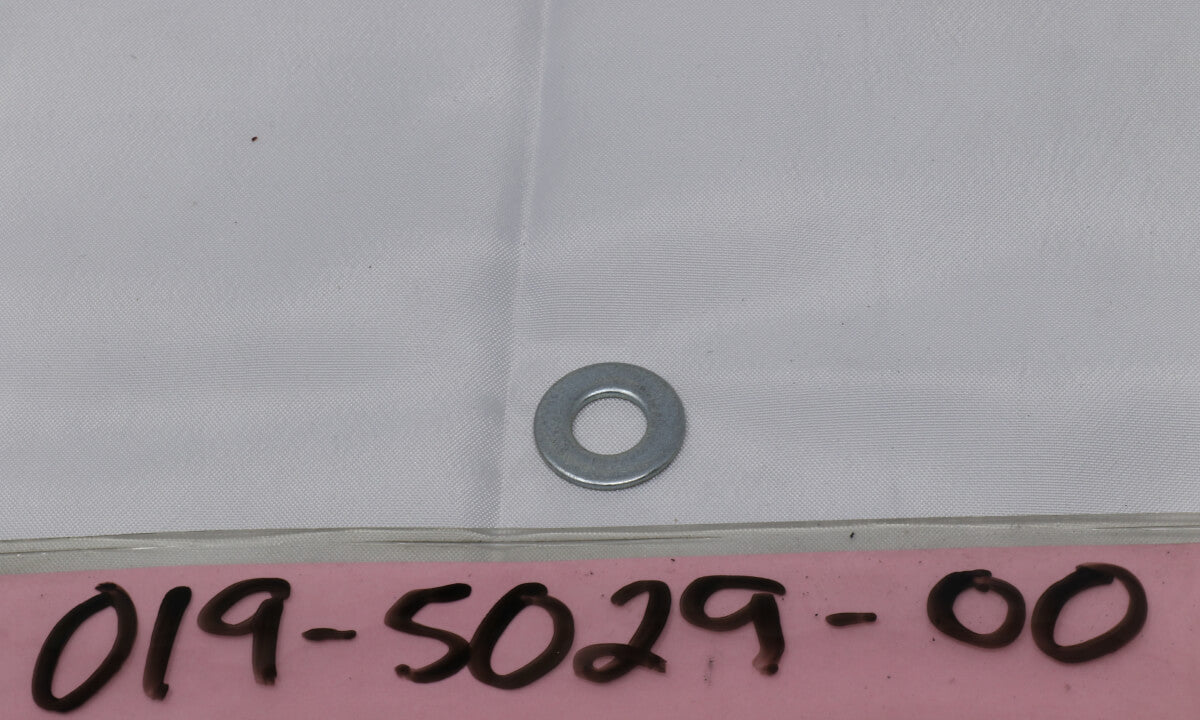

17#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-

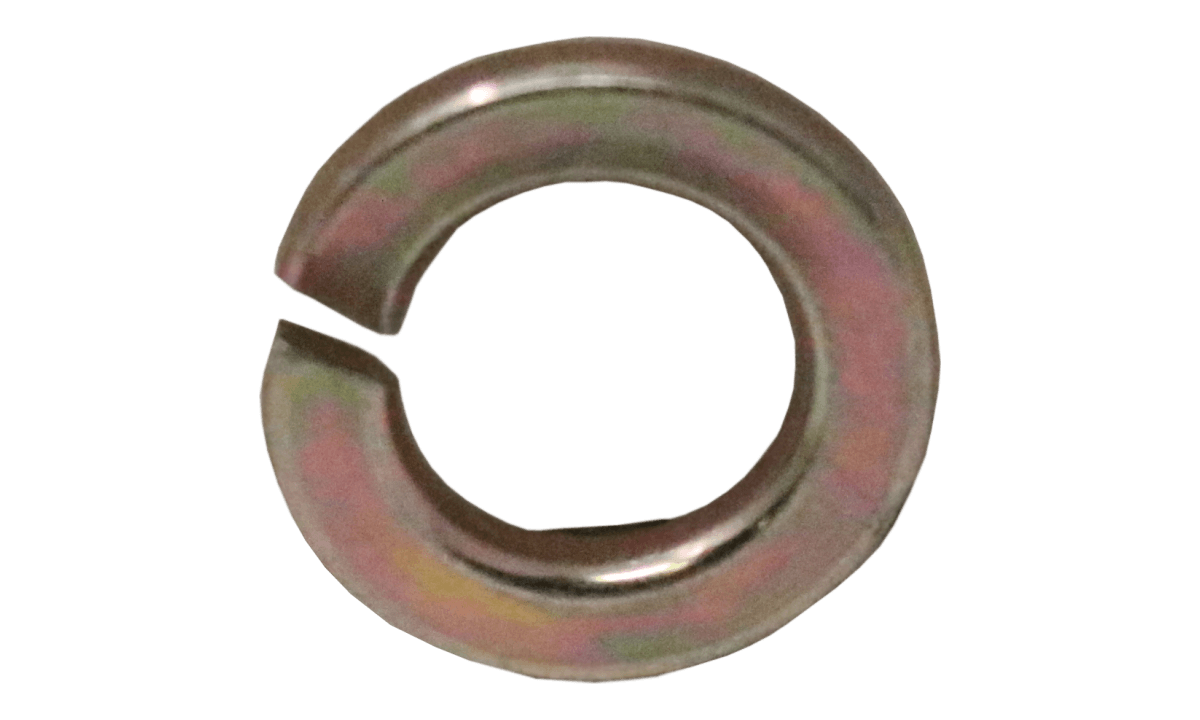

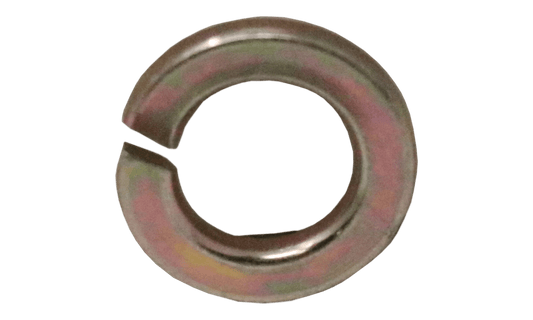

18#019-8053-00
7/16 Lock washer zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
19#025-0076-00
Horizontal Engine Spacer
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
20#026-8010-00
Pump Plate--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
21#030-0075-00
5/16-24 X 3/8 Set Screw
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
22#033-8001-00
2019 Outlaw Renegade Horizontal Double V Pulley
Qty Used: 1Regular price $43.99 USDRegular priceUnit price per
-

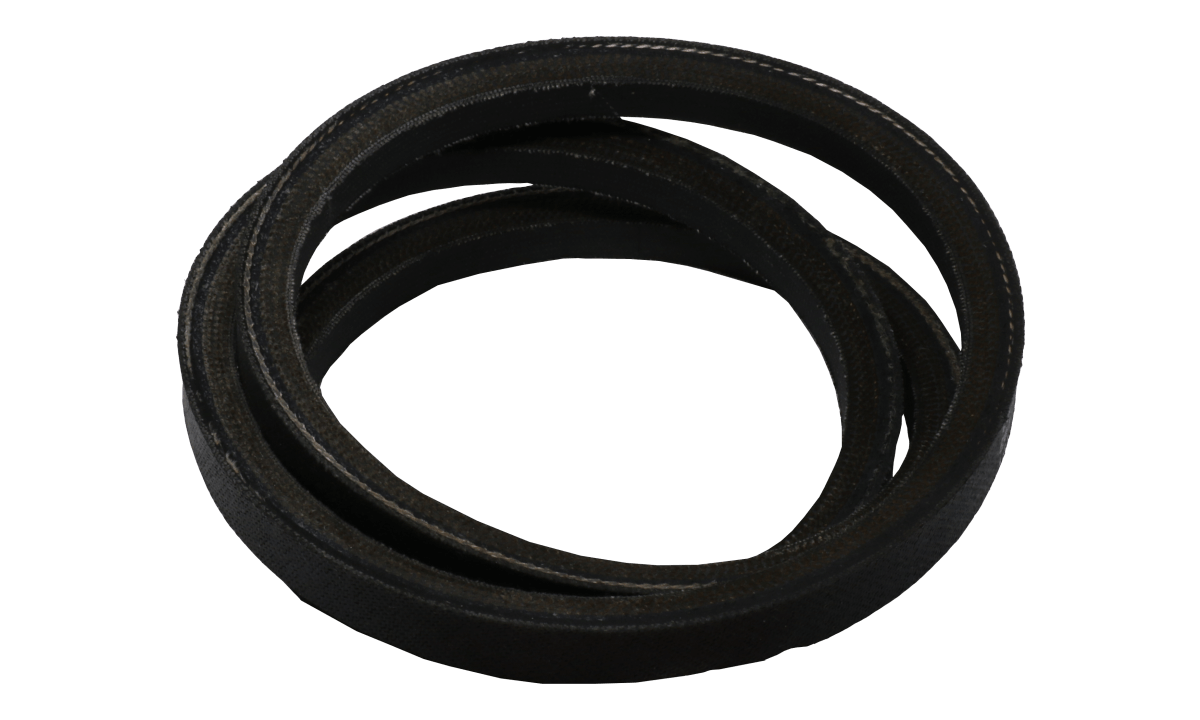

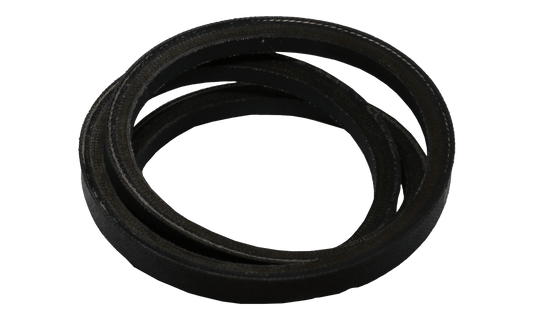

23#041-8001-00
2020 Renegade Pump Belt
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-

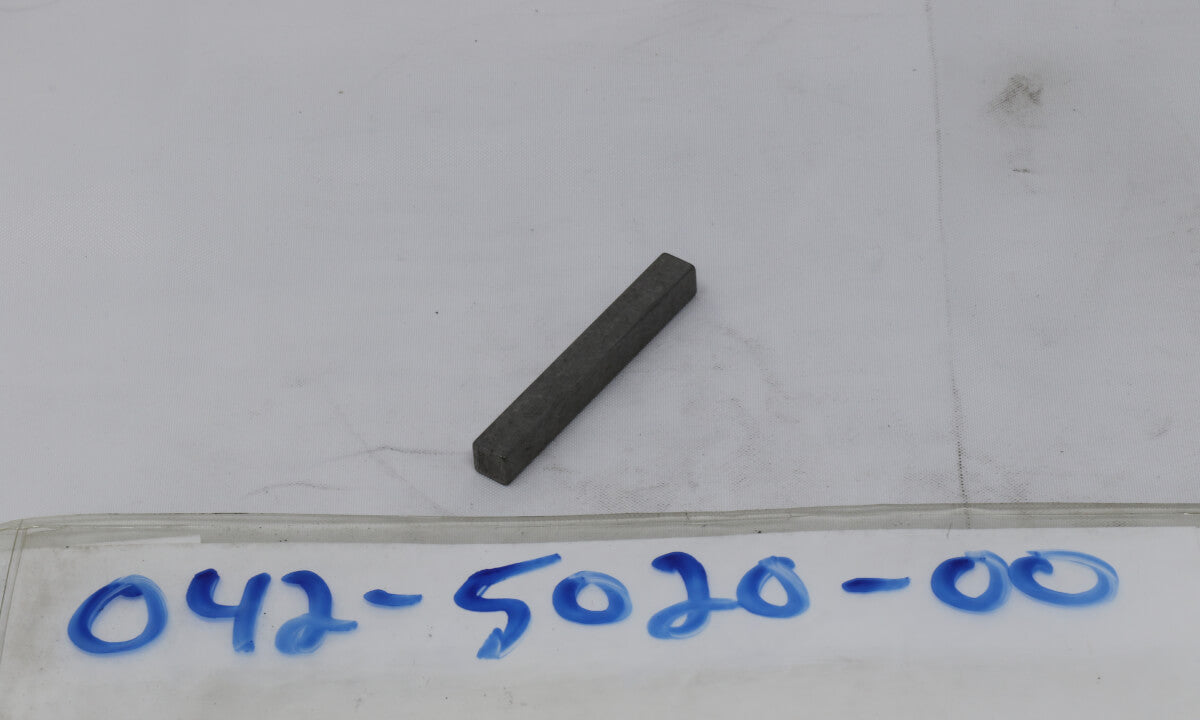

24#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-

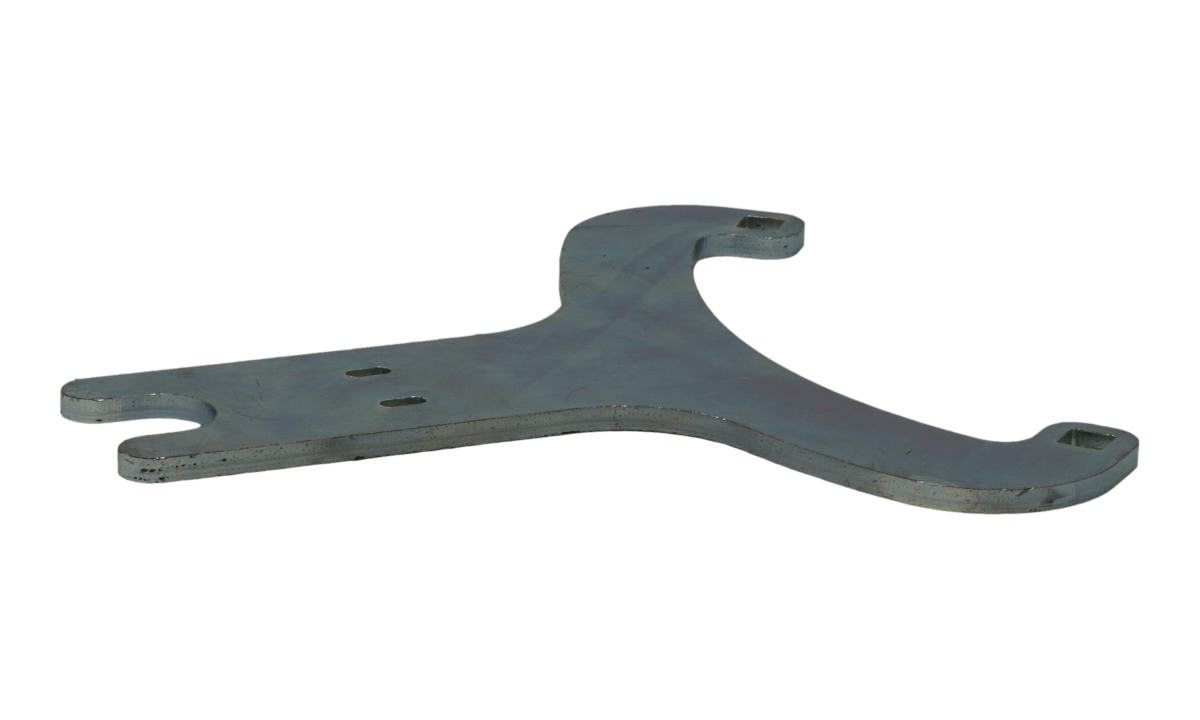

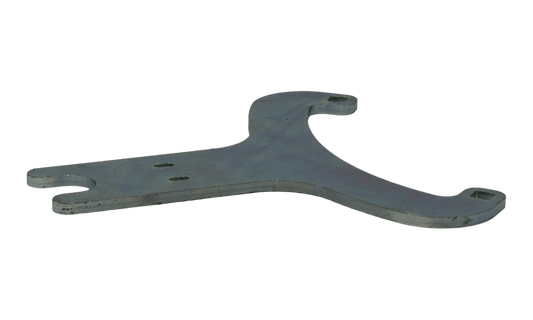

26#057-5919-00
2019 Outlaw Renegade Clutch Bracket--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-

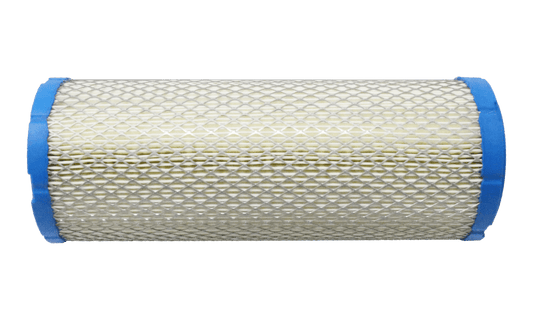

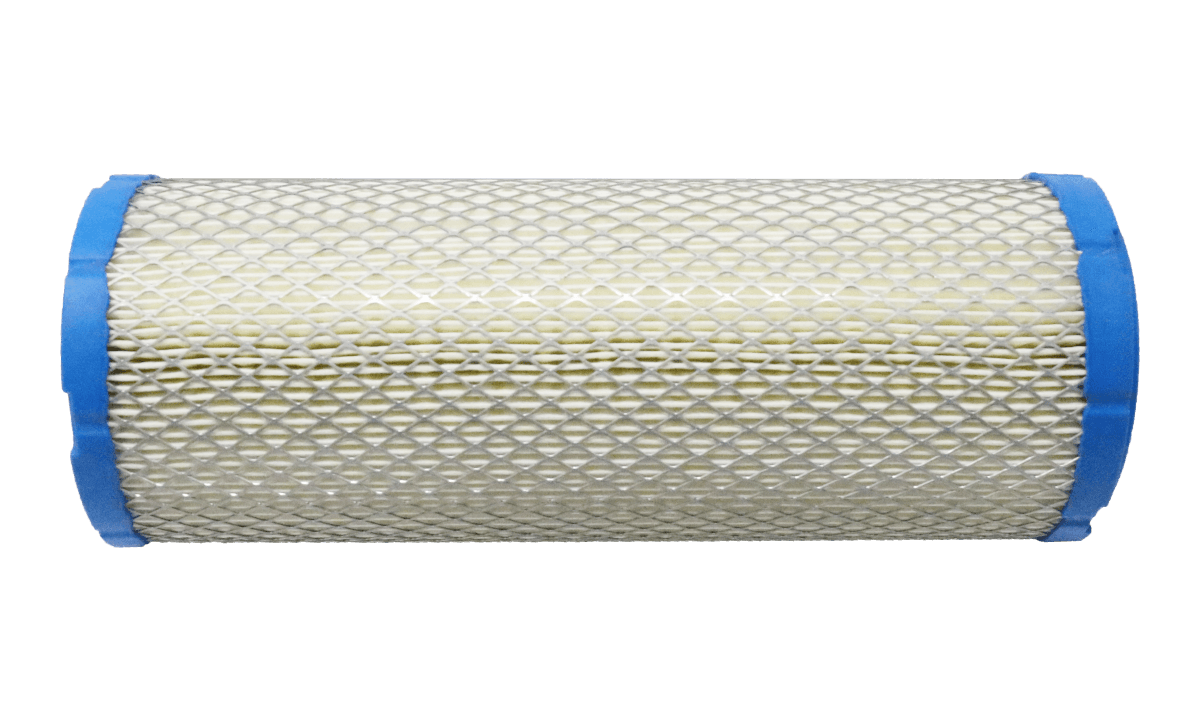

27#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-

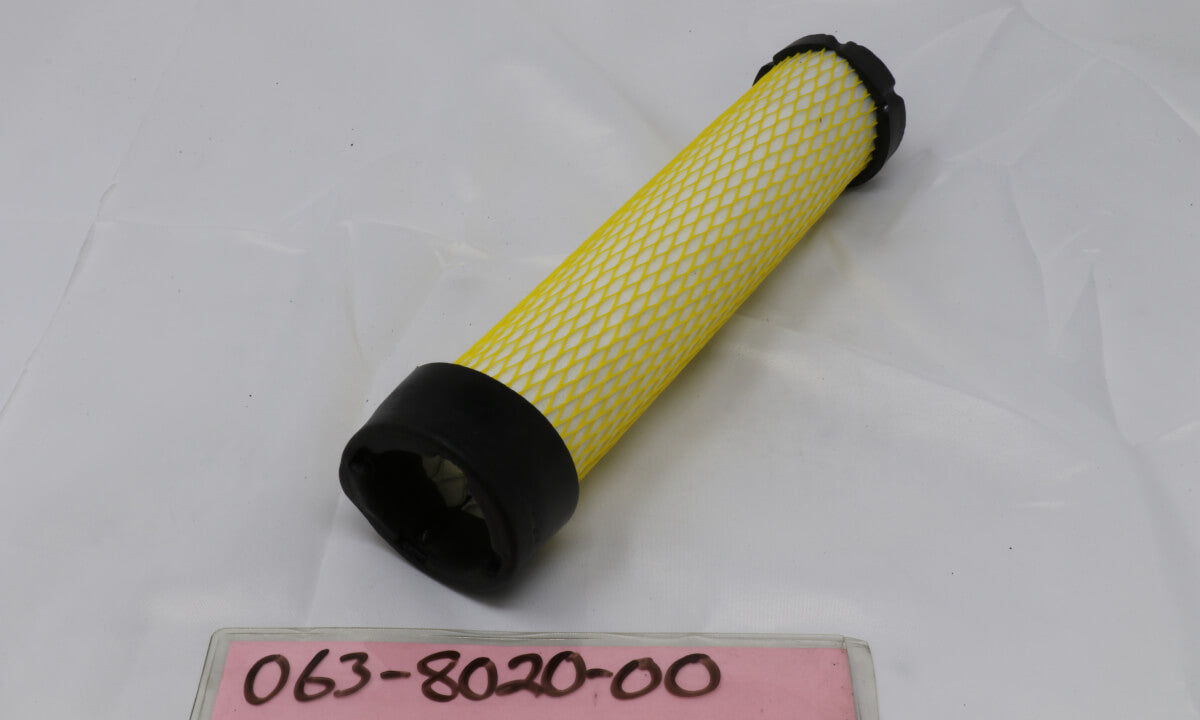

28#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-

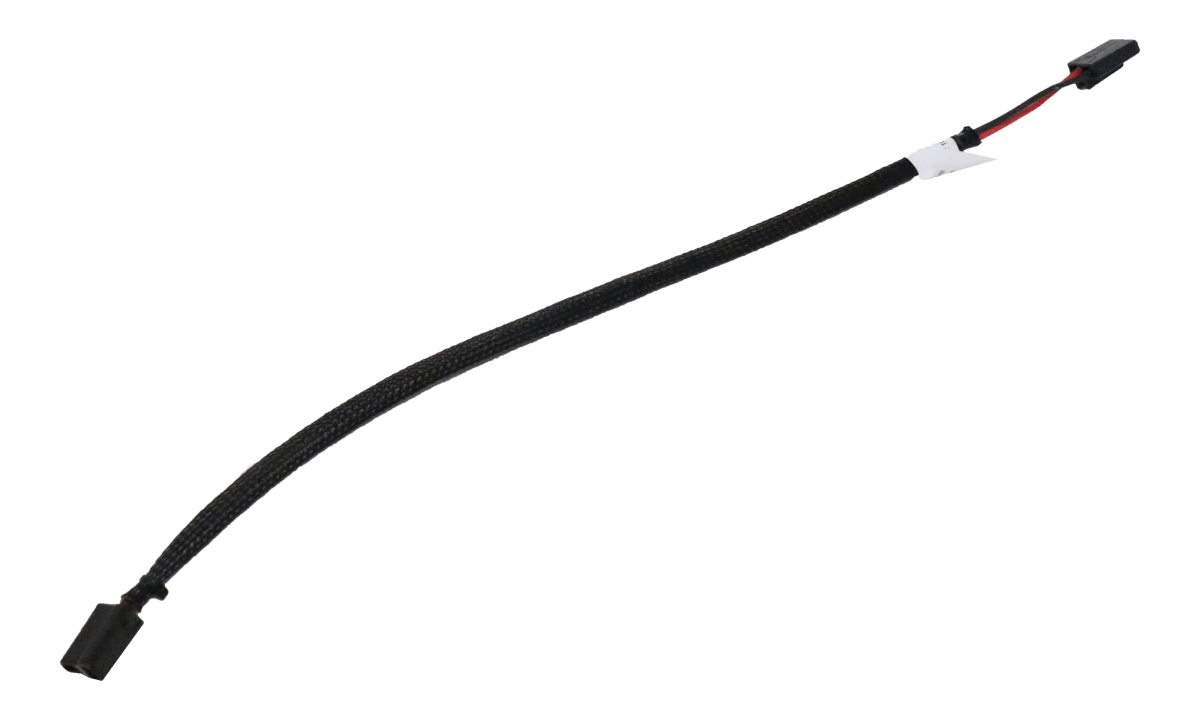

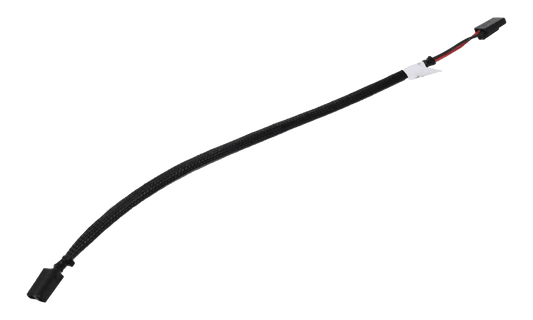

29#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-

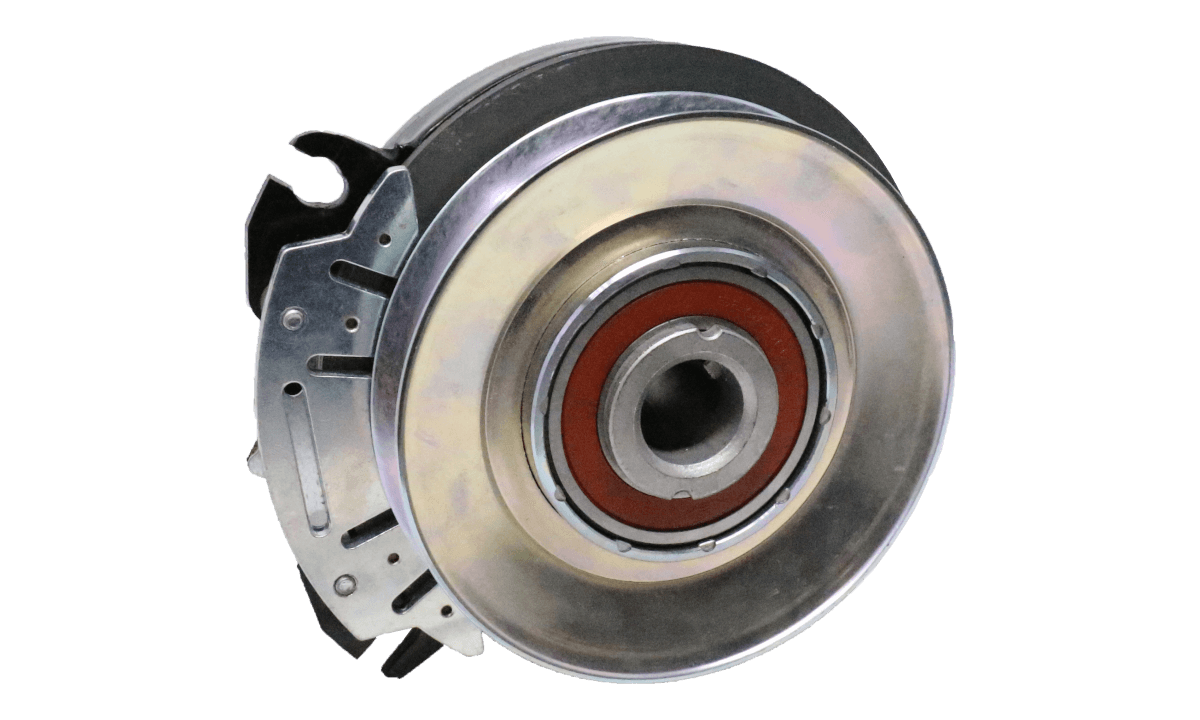

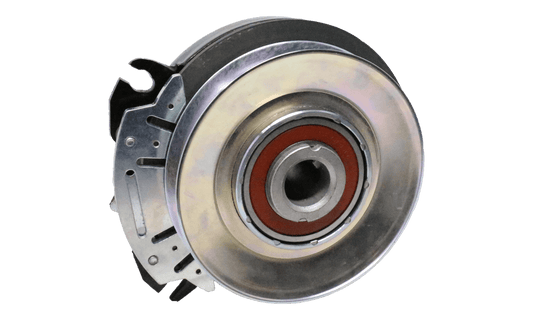

30#070-5040-00
Renegade Clutch
Qty Used: 1Regular price $359.99 USDRegular priceUnit price per
-
31#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
32#086-9009-00
KOHLER ECH 980 ENGINE ADAPTER
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
