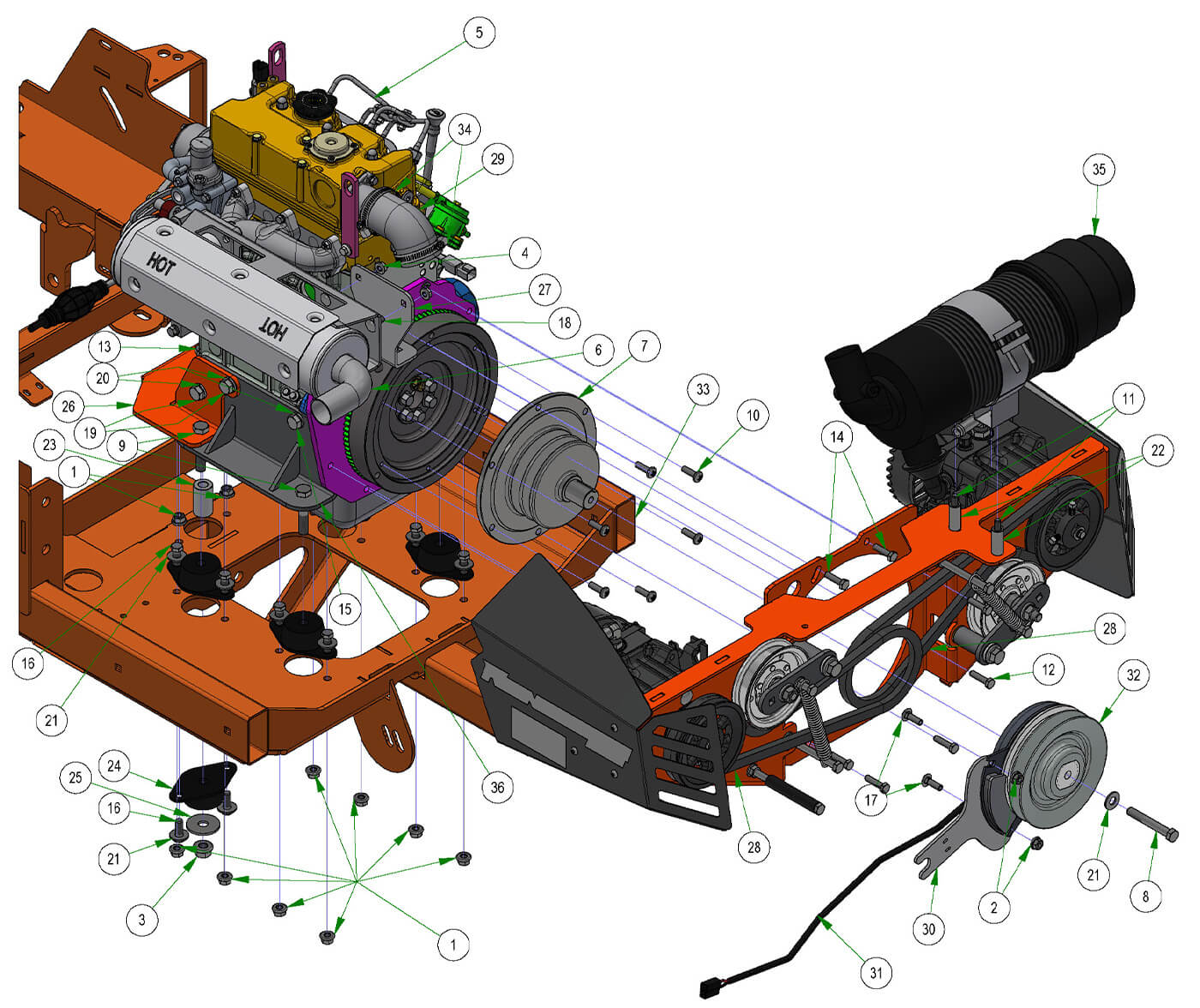

Engine Bay
Parts Index
- 1 3/8 Nylock Flange Nut (Qty 10)
- 2 5/16-18 Nylon Flange Nut (Qty 9)
- 3 1/2-13 Nylon Insert Flange Nut (Qty 5)
- 4 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 6 2019 Renegade 1100cc Diesel Muffler (Qty 1)
- 7 2019 Diesel Stub Shaft Double V (Qty 1)
- 8 7/16-20x3” Hex Bolt GR 8 W/ Patch (Qty 1)
- 9 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 4)
- 10 5/16-18 x 1 Button Head (Qty 6)
- 11 5/16-18 x 2.25" Hex Bolt Gr 5 (Qty 2)
- 12 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 5)
- 13 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 14 M8 x 1.25 x 30MM Hex Head Bolt (Qty 2)
- 15 12mm Bolt - Diesel (Qty 4)
- 16 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 10)
- 17 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 18 5/16 x 7/8 Carriage Bolt (Qty 3)
- 20 1/2 Lockwasher Zinc (Qty 8)
- 21 3/8 USS Flat Washer Zinc (Qty 11)
- 22 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 23 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 24 Rubber Compression Mount (Qty 5)
- 25 Snubbing Washer-032-4050-00 (Qty 5)
- 27 2019 Diesel Muffler Bracket--Plated (Qty 1)
- 28 2020 Renegade Pump Belt (Qty 2)
- 29 Air Intake Hose (Qty 1)
- 30 2019 Outlaw Renegade Clutch Bracket--Plated (Qty 1)
- 31 Clutch Pigtail (Qty 1)
- 32 Renegade Clutch (Qty 1)
- 34 2-1/2 Hose Clamp (Qty 2)
- 35 Enginaire Canister VLR-Complet (Qty 1)
- 36 2019 Diesel Motor Mount--Orange (Qty 2)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 10Regular price $1.49 USDRegular priceUnit price per
-
2#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 5Regular price $1.39 USDRegular priceUnit price per
-
4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
6#015-1019-00
2019 Renegade 1100cc Diesel Muffler
Qty Used: 1Regular price $175.99 USDRegular priceUnit price per
-
7#017-3001-00
2019 Diesel Stub Shaft Double V
Qty Used: 1Regular price $145.96 USDRegular priceUnit price per
-
8#018-0007-21
7/16-20x3” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
9#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
10#018-0016-00
5/16-18 x 1 Button Head
Qty Used: 6Regular price $2.69 USDRegular priceUnit price per
-
11#018-0023-00
5/16-18 x 2.25" Hex Bolt Gr 5
Qty Used: 2Regular price $0.61 USDRegular priceUnit price per
-
12#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
13#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
14#018-5320-00
M8 x 1.25 x 30MM Hex Head Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
15#018-6022-00
12mm Bolt - Diesel
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
16#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 10Regular price $0.69 USDRegular priceUnit price per
-
17#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
20#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
21#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
22#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
23#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
24#032-4050-00
Rubber Compression Mount
Qty Used: 5Regular price $71.52 USDRegular priceUnit price per
-
25#032-4051-00
Snubbing Washer-032-4050-00
Qty Used: 5Regular price $15.91 USDRegular priceUnit price per
-
27#039-1025-00
2019 Diesel Muffler Bracket--Plated
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
28#041-8001-00
2020 Renegade Pump Belt
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-
29#051-3004-00
Air Intake Hose
Qty Used: 1Regular price $13.19 USDRegular priceUnit price per
-
30#057-5919-00
2019 Outlaw Renegade Clutch Bracket--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
31#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
32#070-5040-00
Renegade Clutch
Qty Used: 1Regular price $359.99 USDRegular priceUnit price per
-
34#072-2002-00
2-1/2 Hose Clamp
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
35#088-1010-50
Enginaire Canister VLR-Complet
Qty Used: 1Regular price $197.71 USDRegular priceUnit price per
-
36#201-8030-00
2019 Diesel Motor Mount--Orange
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
