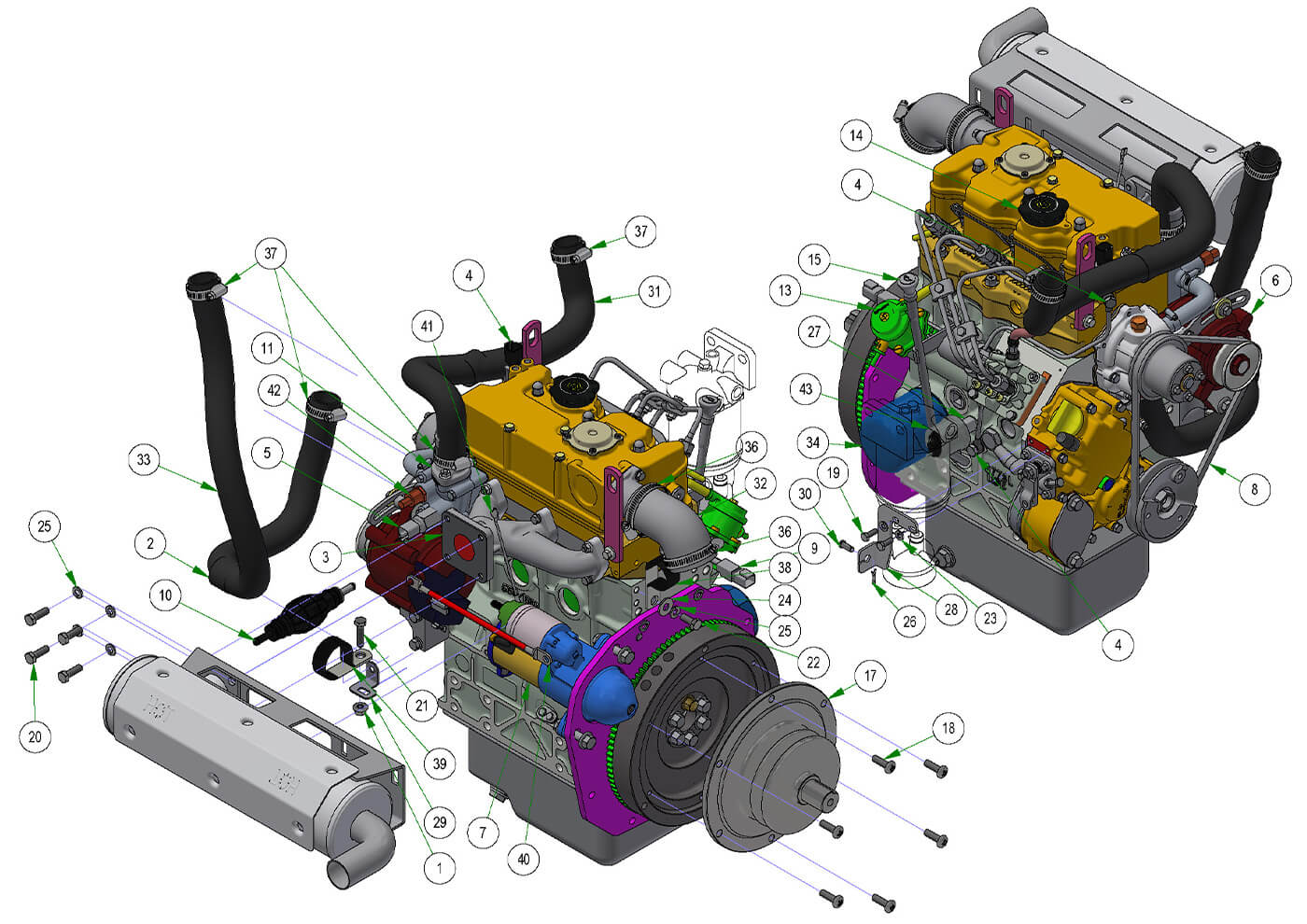

Engine Assembly
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 1)
- 2 2019 Plastic Mesh Hose Loom (Qty 2)
- 3 35/28 CAT Muffler Gasket (Qty 1)
- 4 Oil Pressure Sensor for the 015-0096-00/ 015-0097- (Qty 1)
- 5 Coolant Temperature Sensor for 015-0096-00 & (Qty 1)
- 6 Alternator for 015-0096-00 & 015-0097-00 (Qty 1)
- 8 Alternator Belt for 015-0097-00 (Qty 1)
- 9 Fuel Shutoff Solenoid for 015-0097-00 (Qty 1)
- 10 Fuel Priming Bulb Pump for 015-0097-00 (Qty 1)
- 11 Thermostat Gasket for 015-0097-00 (Qty 1)
- 12 Fuel Pre-Filter for 015-0097-00 (Qty 1)
- 13 Fuel Lift Pump for 015-0097-00 (Qty 1)
- 17 2019 Diesel Stub Shaft Double V (Qty 1)
- 18 5/16-18 x 1 Button Head (Qty 6)
- 19 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 20 M8 X 1.25 X 25MM Class 10.9 (Qty 4)
- 21 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 22 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 23 1/4 Lockwasher Zinc (Qty 2)
- 24 5/16 USS Flat Washer Zinc (Qty 1)
- 25 5/16 Lock washer Zinc (Qty 5)
- 26 3/32 X 1/2 Cotter Pins Zinc (Qty 1)
- 27 8mm x 1/8 Adaptor (Qty 1)
- 28 Throttle Bracket--Plated (Qty 1)
- 29 Radiator Hose Clamp Bracket--Plated (Qty 1)
- 30 1/4 X 5/8 Clevis Pin (Qty 1)
- 31 2019 Diesel Radiator Hose Upper Dayco#71796 (Qty 1)
- 32 Air Intake Hose (Qty 1)
- 33 2019 Diesel Radiator Hose Lower Dayco# 70808 (Qty 1)
- 34 Perkins Oil Filter for 015-0096-00/015-0097-00 (Qty 1)
- 35 Perkins Fuel Filter for 015-0096-00 & 015-0097-00 (Qty 1)
- 36 2-1/2 Hose Clamp (Qty 2)
- 37 1 1/8 Hose Clamp (Qty 4)
- 38 Diesel Hydraulic Hose Clamp (Qty 1)
- 39 Diesel Clamp - 1 3/4 Vinyl (Qty 1)
- 40 Alternator to Starter Cable (Qty 1)
- 42 Temperature Sender- 2012 Gauge (Qty 1)
- 43 Pressure Sender-2012 Gauge (Qty 1)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
2#014-1053-00
2019 Plastic Mesh Hose Loom
Qty Used: 2Regular price $8.99 USDRegular priceUnit price per
-
3#015-0010-50
35/28 CAT Muffler Gasket
Qty Used: 1Regular price $15.91 USDRegular priceUnit price per
-
4#015-0096-06
Oil Pressure Sensor for the 015-0096-00/ 015-0097-
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
5#015-0096-07
Coolant Temperature Sensor for 015-0096-00 &
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
6#015-0096-09
Alternator for 015-0096-00 & 015-0097-00
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
8#015-0097-02
Alternator Belt for 015-0097-00
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
9#015-0097-03
Fuel Shutoff Solenoid for 015-0097-00
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
10#015-0097-04
Fuel Priming Bulb Pump for 015-0097-00
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
11#015-0097-06
Thermostat Gasket for 015-0097-00
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
12#015-0097-07
Fuel Pre-Filter for 015-0097-00
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
17#017-3001-00
2019 Diesel Stub Shaft Double V
Qty Used: 1Regular price $145.96 USDRegular priceUnit price per
-
18#018-0016-00
5/16-18 x 1 Button Head
Qty Used: 6Regular price $2.69 USDRegular priceUnit price per
-
19#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
20#018-2001-00
M8 X 1.25 X 25MM Class 10.9
Qty Used: 4Regular price $0.50 USDRegular priceUnit price per
-
21#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
22#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
23#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
24#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
25#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
26#020-2000-00
3/32 X 1/2 Cotter Pins Zinc
Qty Used: 1Regular price $0.50 USDRegular priceUnit price per
-
27#024-0070-00
8mm x 1/8 Adaptor
Qty Used: 1Regular price $34.99 USDRegular priceUnit price per
-
28#039-1010-00
Throttle Bracket--Plated
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
29#039-1015-00
Radiator Hose Clamp Bracket--Plated
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
30#044-2006-00
1/4 X 5/8 Clevis Pin
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
31#051-3003-00
2019 Diesel Radiator Hose Upper Dayco#71796
Qty Used: 1Regular price $46.38 USDRegular priceUnit price per
-
32#051-3004-00
Air Intake Hose
Qty Used: 1Regular price $13.19 USDRegular priceUnit price per
-
33#051-3005-00
2019 Diesel Radiator Hose Lower Dayco# 70808
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
34#063-2010-01
Perkins Oil Filter for 015-0096-00/015-0097-00
Qty Used: 1Regular price $27.45 USDRegular priceUnit price per
-
35#063-2011-01
Perkins Fuel Filter for 015-0096-00 & 015-0097-00
Qty Used: 1Regular price $25.20 USDRegular priceUnit price per
-
36#072-2002-00
2-1/2 Hose Clamp
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
37#072-2003-00
1 1/8 Hose Clamp
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
38#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
39#072-8090-00
Diesel Clamp - 1 3/4 Vinyl
Qty Used: 1Regular price $3.30 USDRegular priceUnit price per
-
40#086-0003-00
Alternator to Starter Cable
Qty Used: 1Regular price $7.08 USDRegular priceUnit price per
-
42#086-7003-00
Temperature Sender- 2012 Gauge
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
43#086-7004-00
Pressure Sender-2012 Gauge
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
