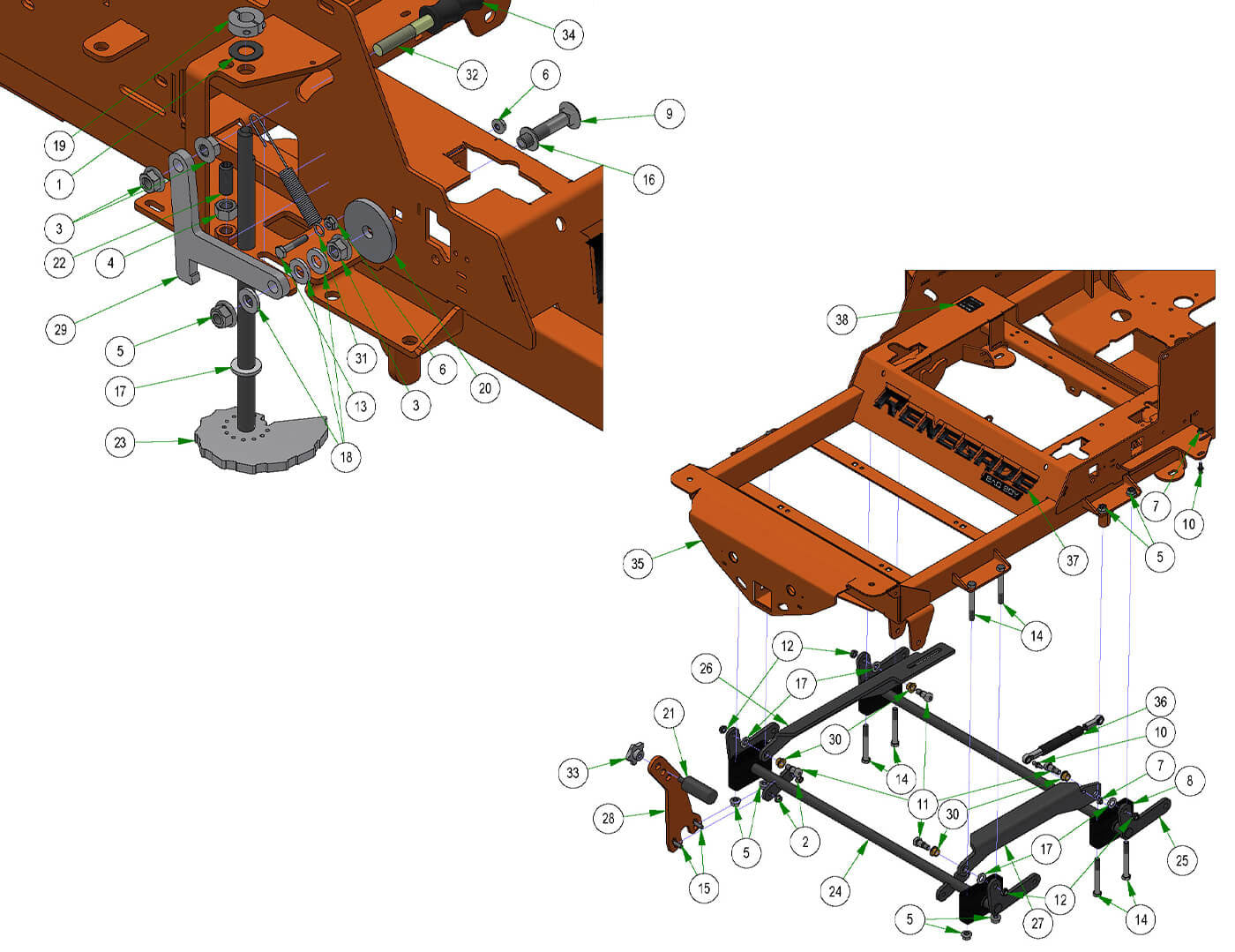

Deck Height Actuators
Parts Index
- 1 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 2 3/8 Nylock Flange Nut (Qty 2)
- 3 1/2-13 Hex Fange Nuts Zinc w/ (Qty 3)
- 4 1/2-13 Hex Nuts Zinc (Qty 1)
- 5 1/2-13 Nylon Insert Flange Nut (Qty 9)
- 6 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 7 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 8 2015 Outlaw Pillow Block (Qty 4)
- 9 2 1/2 X 1/2 Carriage Bolt (Qty 1)
- 10 10mm Ball Stud (Long Thread) (Qty 2)
- 11 5/8 x 5/8 Shoulder Bolt (Qty 4)
- 12 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 13 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 14 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 8)
- 15 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 16 .517 Square Hole Round Washer (Qty 1)
- 17 .630 ID X 1.122 OD X .142 THK (Qty 5)
- 18 .505 ID X 1 OD X .128 THK Washer (Qty 3)
- 19 Split Collar (Qty 1)
- 20 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 21 Knurled Foot Pedal (Qty 1)
- 22 Deck Height Cam Plunger (Qty 1)
- 23 R-Series Deck Height Dial Rod Assy (Qty 1)
- 24 Actuator Bar (Front) (Qty 1)
- 25 Actuator Bar (Rear) (Qty 1)
- 26 2019 Actuator Linkage-Right-Black (Qty 1)
- 28 Foot Lift Upright Lever--Orange (Qty 1)
- 29 Deck Travel Lock Lever--Plated (Qty 1)
- 30 Bronze Bushing - SF-2024-8 (Qty 4)
- 31 Brake Spring (Qty 1)
- 32 Seat Bracket Pin - 2008 Models (Qty 1)
- 33 Star Knob 1/2-13 (Qty 1)
- 34 Grip (Travel Lock) (Qty 1)
- 36 Dampener (250lbs) (Qty 1)
- 37 MY24 Renegade Front Decal (Qty 1)
- 38 2019 Deck Release Decal (Qty 1)
-
1#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
3#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
4#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 9Regular price $1.39 USDRegular priceUnit price per
-
6#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
7#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
8#017-9075-00
2015 Outlaw Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
9#018-0043-00
2 1/2 X 1/2 Carriage Bolt
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
10#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
11#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 4Regular price $14.59 USDRegular priceUnit price per
-
12#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
13#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
14#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
15#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
16#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
17#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
18#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
19#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
20#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
21#026-0026-00
Knurled Foot Pedal
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
22#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
23#028-0015-19
2019 Outlaw Gen2 Deck Height Dial Rod Assy
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
24#028-0026-00
Actuator Bar (Front)
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
25#028-0027-00
Actuator Bar (Rear)
Qty Used: 1Regular price $76.99 USDRegular priceUnit price per
-
26#028-6075-22
2019 Actuator Linkage-Right-Black
Qty Used: 1Regular price $40.99 USDRegular priceUnit price per
-
28#031-0003-00
Foot Lift Upright Lever--Orange
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
29#031-0125-00
Deck Travel Lock Lever--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
30#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
31#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
32#044-4000-00
Seat Bracket Pin - 2008 Models
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
33#045-6044-00
Star Knob 1/2-13
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
34#069-4011-00
Grip (Travel Lock)
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
36#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
37#091-0518-00
MY24 Renegade Front Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
38#091-4037-00
2019 Deck Release Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
