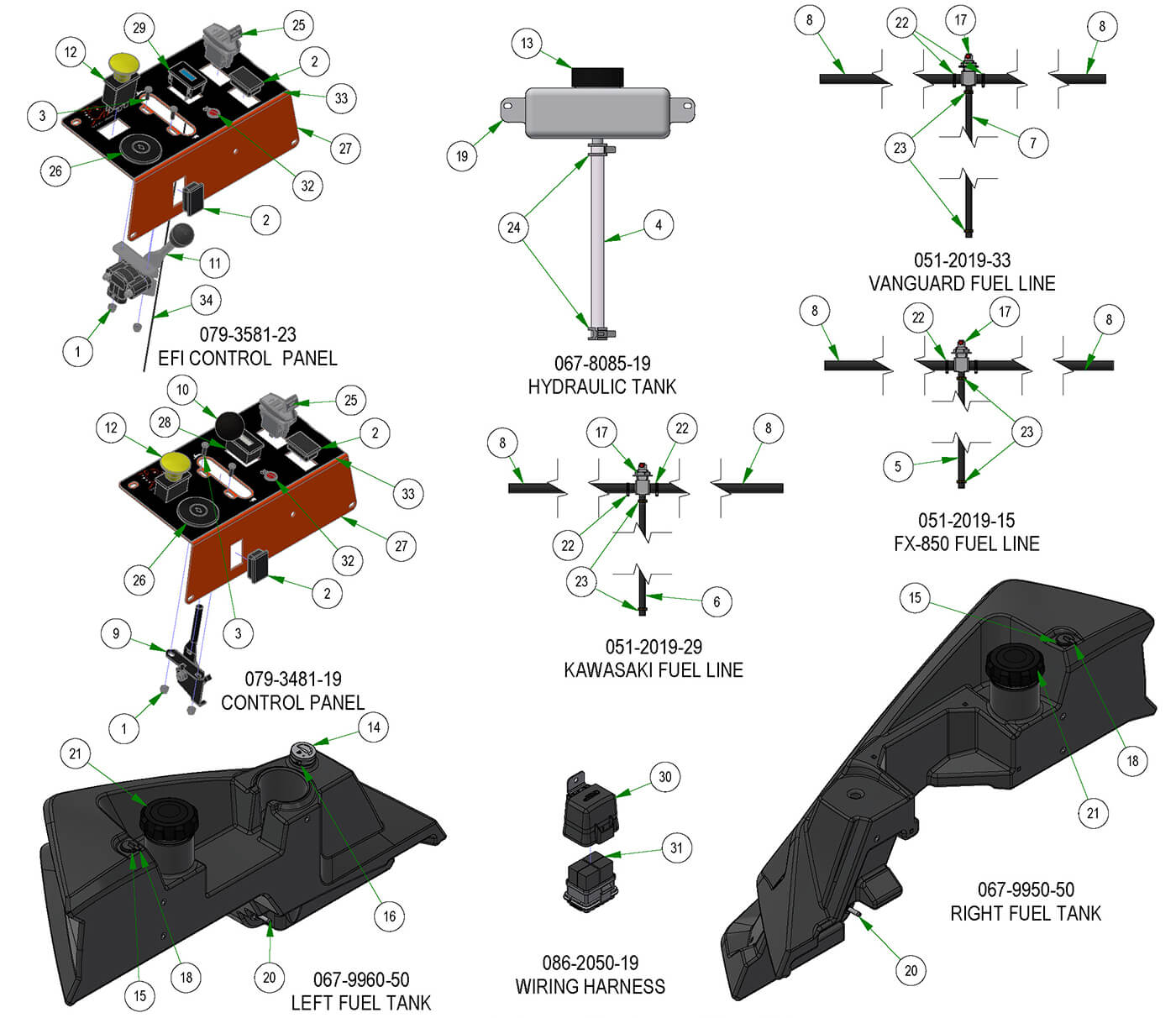

Tanks and Battery Subassemblies
Parts Index
- 1 10-24 Nylon Insert Locknut Zin (Qty 4)
- 2 Light Plug (Qty 4)
- 3 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 4 2019 7.5" Outlaw Gen2 Hydro Tank Hose (Qty 1)
- 5 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 6 22" 1/4" Fuel Line No Clamp (Qty 1)
- 7 32" 1/4" Fuel Line No Clamps (Qty 1)
- 8 26" 5/16 Fuel Line No Clamps (Qty 6)
- 9 Universal Throttle Head - 2012 (Qty 1)
- 10 Throttle / Brake Head Ball (Qty 1)
- 11 Kawasaki \ Kohler Drive by Wire Throttle (Qty 1)
- 12 PTO Engager-Switch for Blades (Qty 2)
- 13 ZT Hydraulic Tank Cap (Qty 1)
- 14 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 15 Old Style Grommet for Fule Gau (Qty 2)
- 16 New Style Grommet for 2017 MZ Magnum Fuel Gauge (Qty 1)
- 17 3 Way Fuel Shut-Off Valve 5/16 x 5/16 x 1/4 (Qty 3)
- 18 Rollover Valve and Grommet New (Qty 1)
- 19 Expansion Tank for Outlaw (Qty 2)
- 20 Fuel Pickup for 2019 Fuel Tanks (Qty 2)
- 21 Fuel Tank Cap for 2019 Fuel Tank (Qty 2)
- 22 5/8 Fuel Line Clamp (Qty 6)
- 23 1/4 Fuel Line Clamp (Qty 6)
- 24 22mm Hose Clamp (Qty 2)
- 25 USB Port (Qty 2)
- 26 Ignition Switch (Qty 2)
- 27 2022 Rebel Control Panel--Orange (Qty 2)
- 28 Tachometer-N310-0100-1018 (Qty 1)
- 29 Tach For FX1000 EFI & EVO 781 & 820 (Qty 1)
- 30 2019 Relay Cap Kit (Qty 1)
- 31 2019 Relay Terminal (Qty 4)
- 32 Oil Light (Qty 2)
- 33 2022 Rebel/ Rogue Control Panel Decal (Qty 2)
-
1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
2#018-1040-00
Light Plug
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
4#051-0019-00
2019 7.5" Outlaw Gen2 Hydro Tank Hose
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
5#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
6#051-8067-22
22" 1/4" Fuel Line No Clamp
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
7#051-8067-32
32" 1/4" Fuel Line No Clamps
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
8#051-8075-26
26" 5/16 Fuel Line No Clamps
Qty Used: 6Regular price $17.50 USDRegular priceUnit price per
-
9#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
10#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
11#055-3001-00
Kawasaki \ Kohler Drive by Wire Throttle
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
12#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 2Regular price $32.05 USDRegular priceUnit price per
-
13#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
14#067-4080-00
Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
15#067-6054-00
Old Style Grommet for Fule Gau
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
16#067-6056-00
New Style Grommet for 2017 MZ Magnum Fuel Gauge
Qty Used: 1Regular price $6.49 USDRegular priceUnit price per
-
17#067-6058-00
3 Way Fuel Shut-Off Valve 5/16 x 5/16 x 1/4
Qty Used: 3Regular price $19.99 USDRegular priceUnit price per
-
18#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
19#067-8085-00
Expansion Tank for Outlaw
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
20#067-9901-00
Fuel Pickup for 2019 Fuel Tanks
Qty Used: 2Regular price $21.22 USDRegular priceUnit price per
-
21#067-9904-00
Fuel Tank Cap for 2019 Fuel Tank
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
22#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 6Regular price $3.29 USDRegular priceUnit price per
-
23#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 6Regular price $0.88 USDRegular priceUnit price per
-
24#072-8078-00
22mm Hose Clamp
Qty Used: 2Regular price $3.09 USDRegular priceUnit price per
-
-
26#077-8076-00
Ignition Switch
Qty Used: 2Regular price $19.99 USDRegular priceUnit price per
-
28#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
29#083-4015-00
Tach For FX1000 EFI & EVO 781 & 820
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
30#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
31#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
-
-
33#091-4009-22
2022 Rebel/ Rogue Control Panel Decal
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
