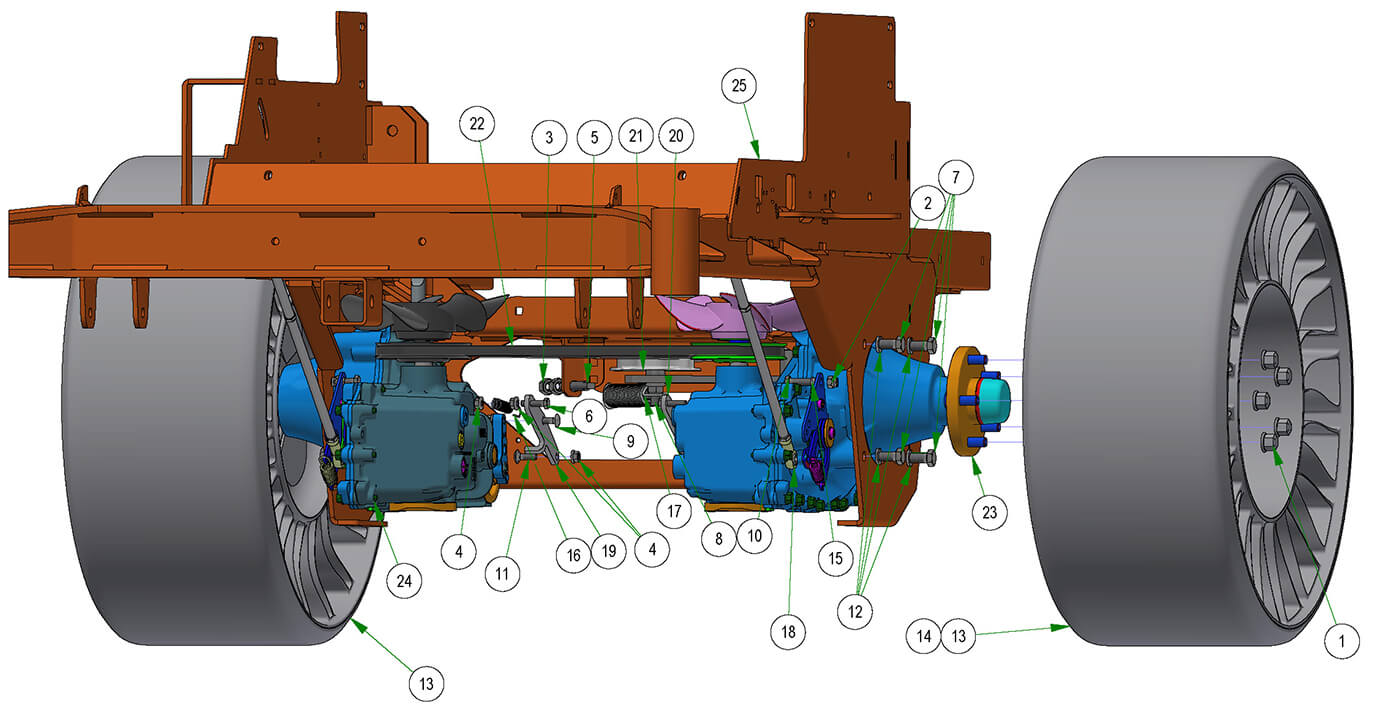

Rebel X Transaxle
Parts Index
- 1 Acorn Lug Nut (Qty 10)
- 2 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 3 1/2-13 Hex Nuts Zinc (Qty 2)
- 4 5/16-18 Nylon Flange Nut (Qty 7)
- 5 All Thread (Qty 1)
- 6 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 7 1/2 x 1 Bolt (Qty 8)
- 8 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 9 5/16-18 X 1-1/4 Carriage Bolt (Qty 2)
- 10 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 11 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 12 1/2 Lockwasher Zinc (Qty 8)
- 13 Michelin 24 x 12N12 X Tweel Turf 5x4.5 Bolt (Qty 2)
- 14 Rear Wheel Assy-24x12-12 Reaper Turf (Qty 2)
- 15 Drive Arm Transaxle Spacer (Qty 2)
- 16 Brake Spring (Qty 2)
- 17 2019 Deck Spring - Big Diameter (Qty 1)
- 18 2024 Rebel Push Rod ASSY (Qty 2)
- 22 2019 & up Rebel Pump Belt (Qty 1)
- 23 5400 Transaxle - Left - Rebel X (Qty 1)
- 24 5400 Transaxle-Right- Rebel X (Qty 1)
- 25 2023 Rebel Frame--Orange (Qty 1)
-
1#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
2#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
5#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
6#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
7#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
8#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
9#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
10#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
11#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
13#022-4092-00
Michelin 24 x 12N12 X Tweel Turf 5x4.5 Bolt
Qty Used: 2Regular price $819.99 USDRegular priceUnit price per
-
14#022-4100-00
2018 Outlaw Assy-24x12-12 Reaper Turf
Qty Used: 2Regular price $299.99 USDRegular priceUnit price per
-
15#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
16#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
17#034-9050-00
2019 Deck Spring - Big Diameter
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
18#035-0009-01
2024 Rebel Push Rod ASSY
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
22#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
23#050-7000-00
5400 Transaxle - Left - Outlaw
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
24#050-7001-00
5400 Transaxle-Right-Outlaw
Qty Used: 1Regular price $849.99 USDRegular priceUnit price per
-
25#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
