Rebel X Battery

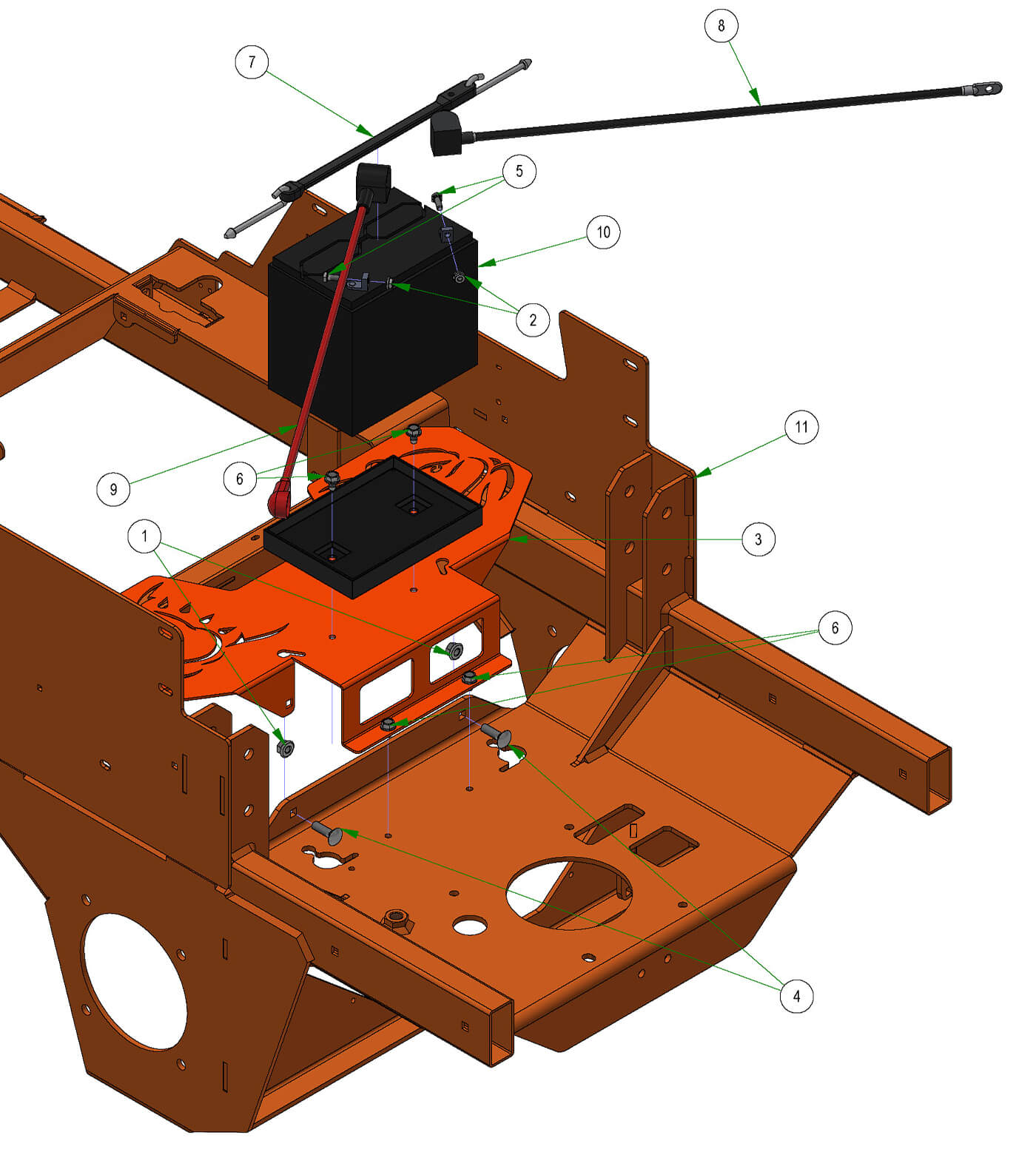

Parts Index
- 1 3/8 Nylock Flange Nut (Qty 2)
- 2 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 4 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 5 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 6 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 7 2023 Battery Hold Down Assembly (Qty 1)
- 8 24 inch Black Cable - MZ/ZT (Qty 1)
- 9 24 Red Battery Cable (Qty 1)
- 10 Battery - All models except Renegade and Revolt (Qty 1)
- 11 2023 Rebel Frame--Orange (Qty 1)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
4#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
5#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
6#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
7#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
8#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
9#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
10#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
11#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
