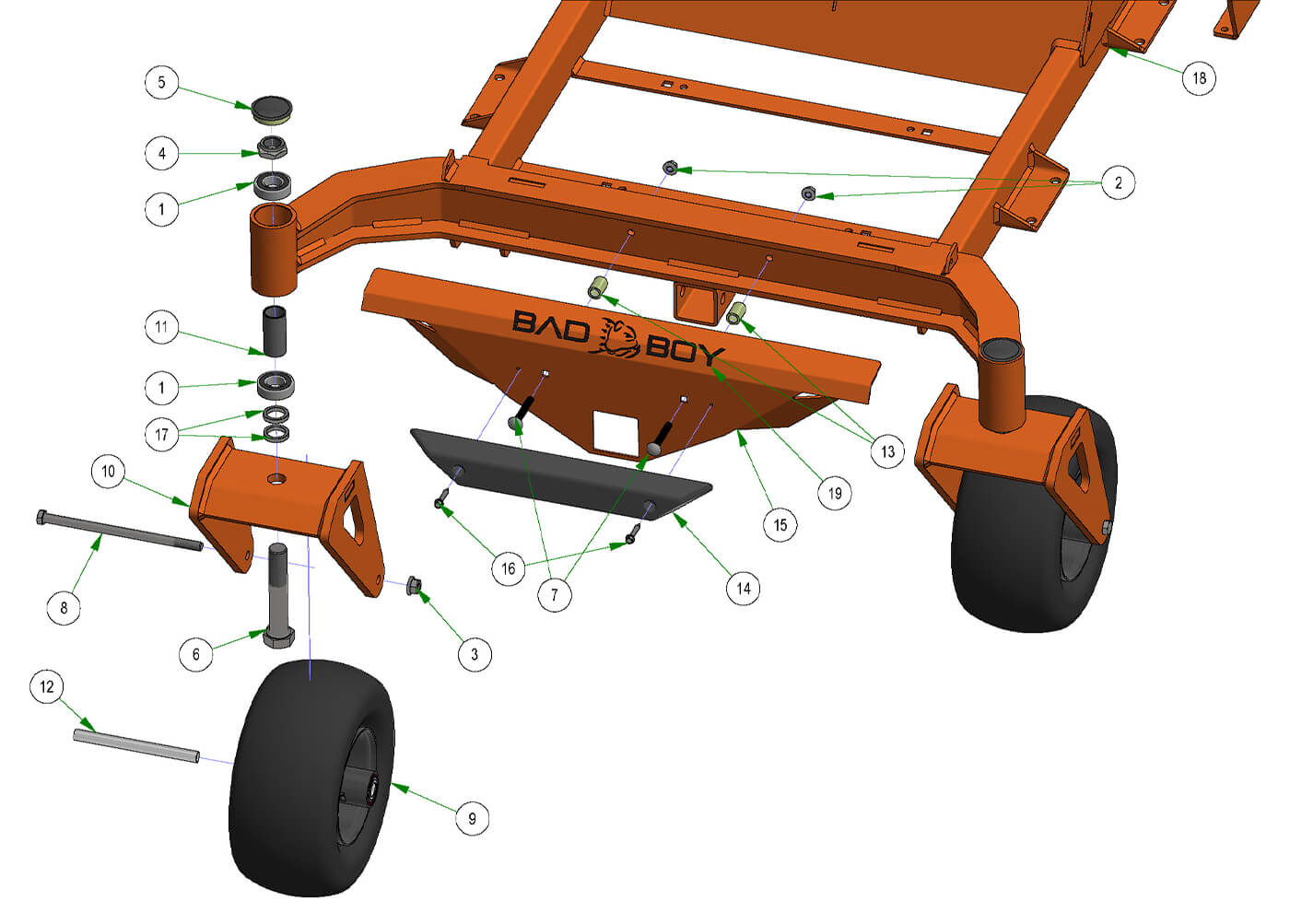

Front End
Parts Index
- 1 Caster Bearing (Qty 4)
- 2 3/8 Nylock Flange Nut (Qty 2)
- 3 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 4 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 5 Bearing Retainer Cap (Qty 2)
- 6 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 2)
- 7 3/8 x 2 1/2 Carriage Bolt (Qty 2)
- 8 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 9 13x6.50-6 Black No Flat Assembly (Qty 2)
- 10 2022 Rebel Front Fork Weldment - Black (Qty 2)
- 11 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 12 Front Wheel Spanner-All Models (Qty 2)
- 13 .502x.750x1.130 Length Spacer (Qty 2)
- 14 Bumper (Qty 1)
- 16 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 17 Spacer ( Front Fork and Suspension ) (Qty 4)
- 18 2023 Rebel Frame--Orange (Qty 1)
- 19 Flying Bulldog Front Bumper Decal (Qty 1)
-
1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
4#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
5#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
6#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
7#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
8#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
9#022-3088-00
13x6.50-6 Black No Flat Assembly
Qty Used: 2Regular price $145.99 USDRegular priceUnit price per
-
10#023-0030-22
2022 Rebel Front Fork Weldment - Black
Qty Used: 2Regular price $104.99 USDRegular priceUnit price per
-
11#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
12#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
13#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
-
16#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
17#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 4Regular price $5.83 USDRegular priceUnit price per
-
18#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
19#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
