Engine - Kawasaki EVO

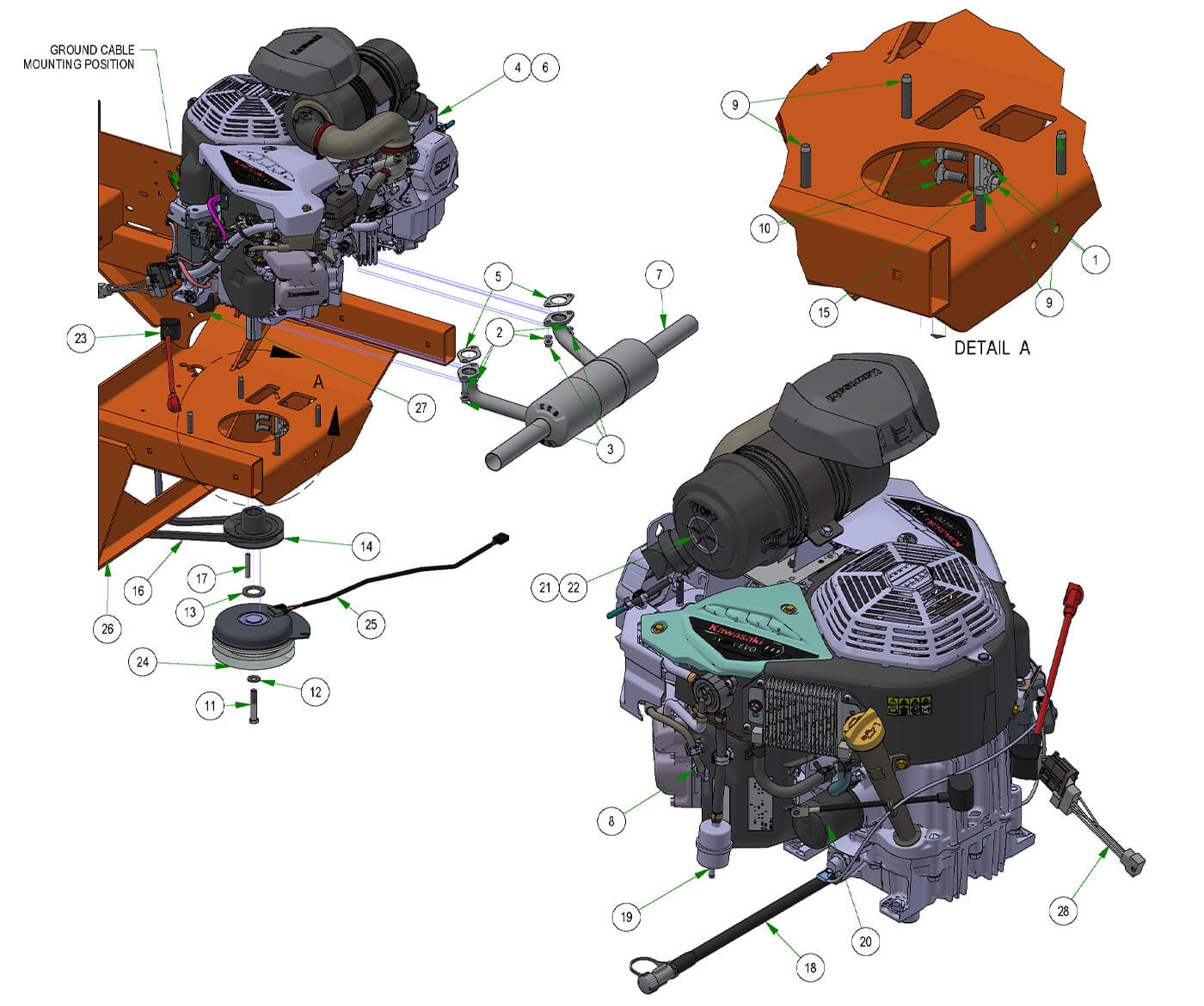

Parts Index
- 1 3/8 Nylock Flange Nut (Qty 2)
- 2 Exhaust Washer Spring / Muffler Mount Lock Washer (Qty 4)
- 3 Exhaust Nut for 2018 Kawasaki Walk Behind (Qty 4)
- 4 FX781V-EVO (Qty 1)
- 5 Muffler Gasket for 015-0781-00 / 015-0820-00 (Qty 2)
- 6 FX820V-EVO (Qty 1)
- 7 Kawasaki FXEVO Rebel Muffler (Qty 1)
- 8 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 9 3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt (Qty 4)
- 10 3/8 x 1 Carriage Bolt (Qty 2)
- 11 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 12 3/8 USS Flat Washer Zinc (Qty 1)
- 13 1.140x1.750x .132 Flat Washer (Qty 1)
- 14 4 3/4 Motor Pulley (Qty 1)
- 15 Rebel Clutch Stop Tab (Qty 1)
- 16 2019 & up Rebel Pump Belt (Qty 1)
- 17 1/4 X 2 Square Key Stock (Qty 1)
- 18 Kawasaki Oil Drain (Qty 1)
- 19 Universal Inline Fuel Filter (Qty 1)
- 20 Kawasaki Oil Filter (Qty 1)
- 21 Canister Air Fil Outer2010&Old (Qty 1)
- 22 Canister Air Filter - Inner (Qty 1)
- 23 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 24 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 25 Clutch Pigtail (Qty 1)
- 26 2023 Rebel Frame--Orange (Qty 1)
- 27 Rebel, Rogue Ground Wire (Qty 1)
- 28 Harness Adapter for Kawasaki EFI (Qty 1)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#015-0543-05
Exhaust Washer Spring / Muffler Mount Lock Washer
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
3#015-0543-06
Exhaust Nut for 2018 Kawasaki Walk Behind
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
4#015-0781-00
FX781V-EVO
Qty Used: 1Regular price $5,999.99 USDRegular priceUnit price per
-
5#015-0781-01
Muffler Gasket for 015-0781-00 / 015-0820-00
Qty Used: 2Regular price $11.99 USDRegular priceUnit price per
-
6#015-0820-00
FX820V-EVO
Qty Used: 1Regular price $6,299.99 USDRegular priceUnit price per
-
7#015-1030-00
Kawasaki FXEVO Rebel Muffler
Qty Used: 1Regular price $104.99 USDRegular priceUnit price per
-
8#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
9#018-0061-00
3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt
Qty Used: 4Regular price $5.39 USDRegular priceUnit price per
-
10#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
12#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
13#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
14#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
15#039-0178-00
Rebel Clutch Stop Tab
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
16#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
17#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
18#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
19#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
20#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
21#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
22#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
23#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
25#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
26#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
27#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
28#086-9016-00
Harness Adapter for Kawasaki EFI
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
