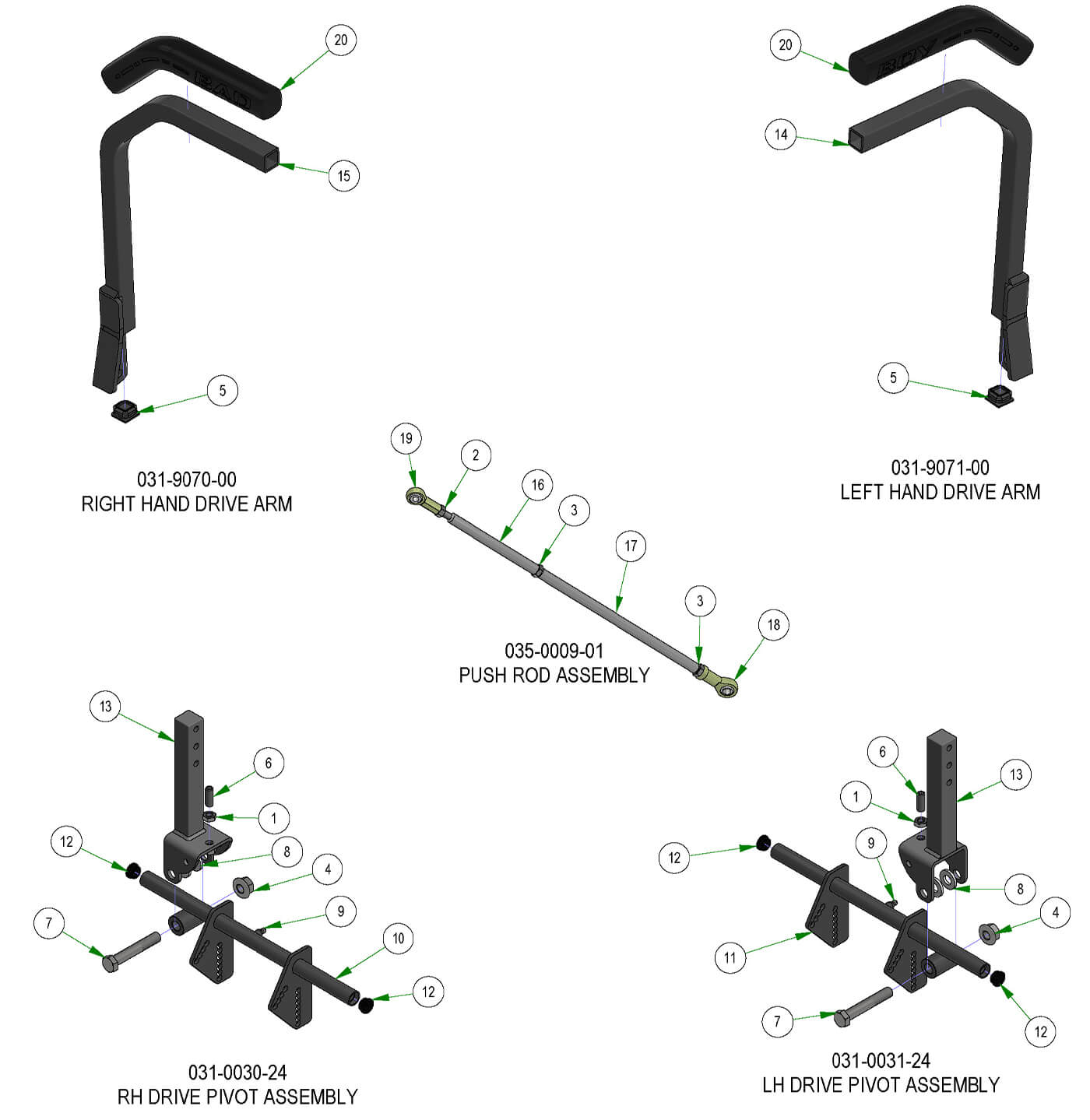

Drive Arm Subassemblies
Parts Index
- 1 3/8-16 Half Jam Nut (Qty 2)
- 2 5/16 LH Nut (Qty 1)
- 3 3/8-24 Hex Nut Zinc (Qty 2)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 6 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 2)
- 7 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 2)
- 8 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 9 1/4 Drive-in Grease Fitting (Qty 2)
- 12 Drive Arm Actuator Bushing (Qty 4)
- 13 R-Series Square Drive Arm Pivot (Qty 2)
- 16 2019 Outlaw Gen2 Horizontal Push Rod Adjuster (Qty 1)
- 18 Spherical Rod End (Qty 1)
- 19 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 1)
- 20 R-Series Square Drive Grip (Qty 2)
-
1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
2#013-6050-00
5/16 LH Nut
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
3#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
4#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
6#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
7#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
8#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
9#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 2Regular price $0.66 USDRegular priceUnit price per
-
12#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 4Regular price $6.62 USDRegular priceUnit price per
-
13#031-0070-00
R-Series Square Drive Arm Pivot
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
16#035-0006-00
2019 Outlaw Gen2 Horizontal Push Rod Adjuster
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
18#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
19#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
20#069-4014-00
R-Series Square Drive Grip
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
