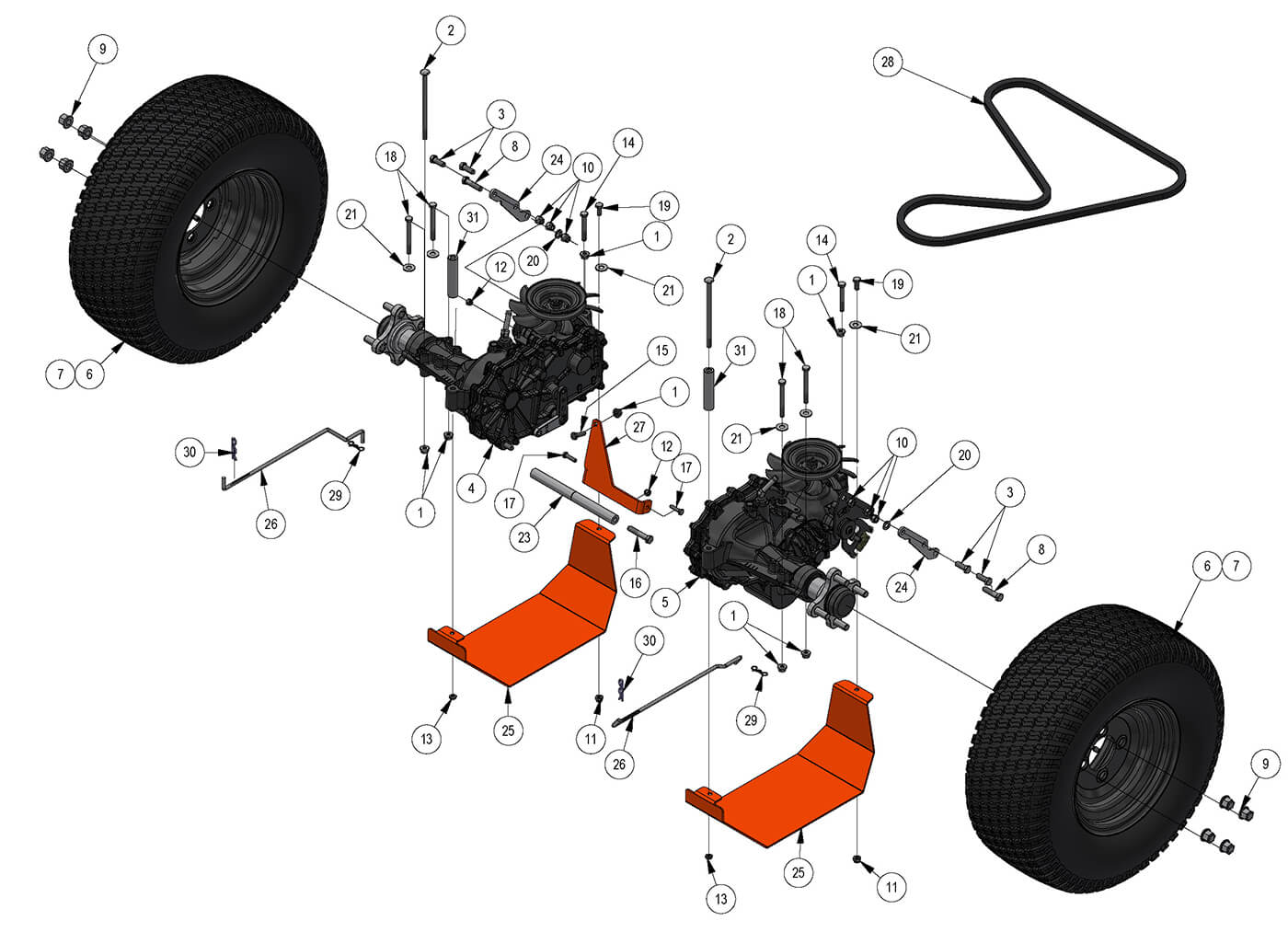

Transaxle
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 9)
- 2 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 3 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 4)
- 8 3/8 x 1 1/2 Bolt (Qty 2)
- 9 Acorn Lug Nut (Qty 8)
- 10 3/8-16 Nylon Insert Locknut Zi (Qty 6)
- 11 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 12 1/4-20 Nylon Insert Locknut Zi (Qty 2)
- 13 5/16-18 Nylock Jam Nut (Qty 2)
- 14 5/16-18 x 2.25" Hex Bolt Gr 5 (Qty 2)
- 15 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 16 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 17 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 18 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 19 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 2)
- 20 3/8 Lockwasher Zinc (Qty 2)
- 21 5/16 USS Flat Washer Zinc (Qty 6)
- 23 2017 Transaxle Spacer Walk Behind (Qty 1)
- 24 2020 Walk Behind Hydro Plate Extension--Orange (Qty 2)
- 25 2020 Walk Behind Trans Skid Plate--Orange (Qty 2)
- 28 2020 Walk Behind Pump Belt (Qty 1)
- 29 Bow Pin (Qty 2)
- 30 Neutral Rod Clip (Qty 2)
- 31 2017 Transaxle Spacer (Qty 2)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
2#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
3#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
8#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
9#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
10#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
11#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
13#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
14#018-0023-00
5/16-18 x 2.25" Hex Bolt Gr 5
Qty Used: 2Regular price $0.61 USDRegular priceUnit price per
-
15#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
16#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
17#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
18#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
19#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
20#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
21#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
23#025-0018-00
2017 Transaxle Spacer Walk Behind
Qty Used: 1Regular price $9.89 USDRegular priceUnit price per
-
24#026-0173-00
2020 Walk Behind Hydro Plate Extension--Orange
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
25#026-3441-00
2020 Walk Behind Trans Skid Plate--Orange
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
28#041-8053-00
2020 Walk Behind Pump Belt
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
-
30#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
31#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
