Engine

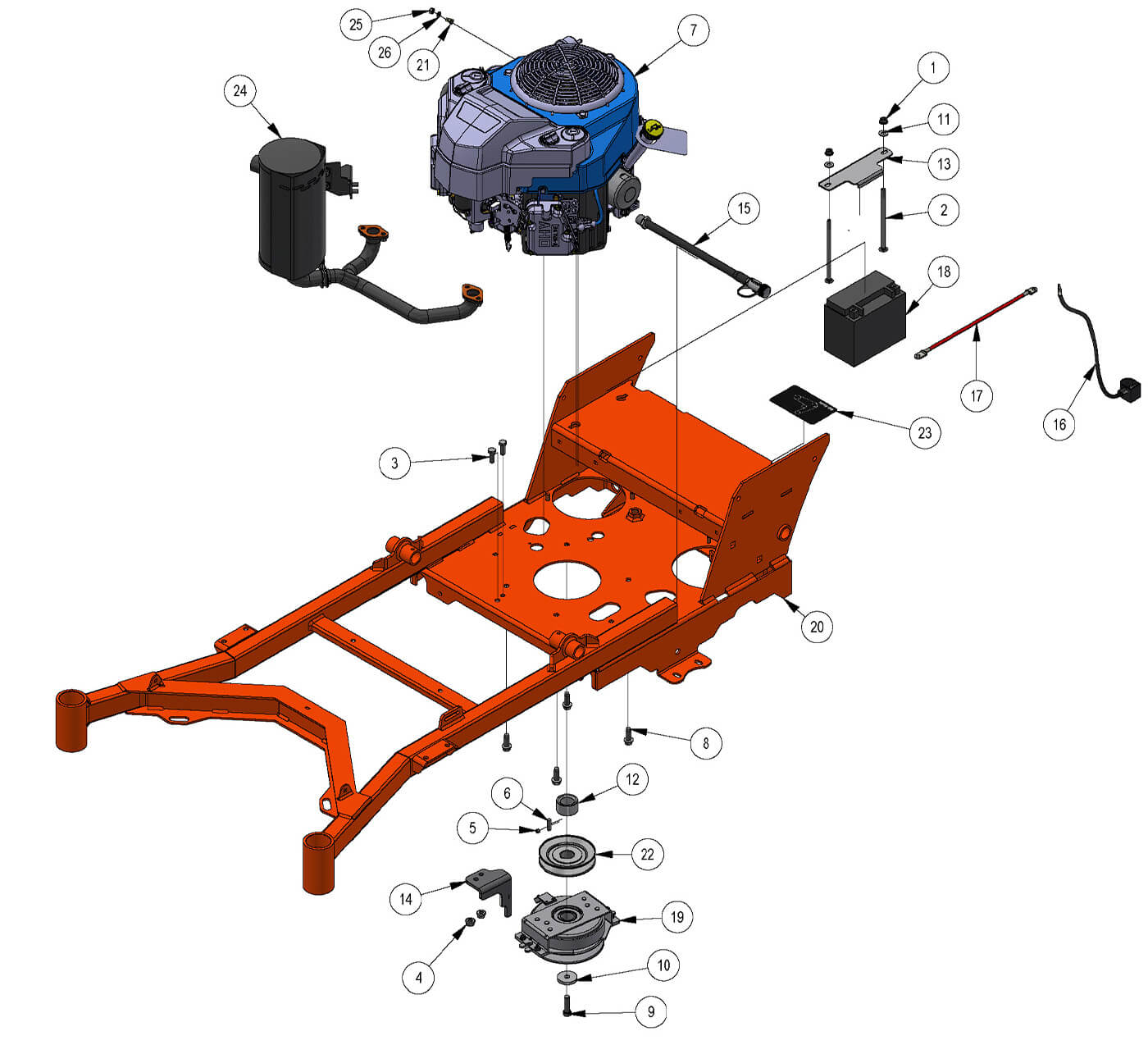

Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 2)
- 2 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 3 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 4 3/8 Nylock Flange Nut (Qty 2)
- 5 5/16-24 x 1/4 Set Screw (Qty 1)
- 6 1/4 x 1 Square Key (Qty 1)
- 8 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 9 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 10 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 11 1/4 USS Flat Washer Zinc (Qty 2)
- 12 1.130 ID X 1.75 OD X 1 Length (Qty 1)
- 13 Battery Hold Down Plate-Raider--Orange (Qty 1)
- 15 Kawasaki Oil Drain (Qty 1)
- 16 24 inch Black Cable - MZ/ZT (Qty 1)
- 17 14" Red Battery Cable (Qty 1)
- 18 Revolt Battery (Qty 1)
- 19 Clutch For 1-1/8" Shaft (Qty 1)
- 22 4 3/4 Motor Pulley - DB74-601 (Qty 1)
- 23 2017 Walk Behind 36" Deck Belt Route (Qty 1)
- 24 Exhaust Assembly-2018 Kawasaki Walk Behind (Qty 1)
- 26 1/4 Lockwasher Zinc (Qty 1)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
23#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
4#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
5#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
6#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
8#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
9#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
10#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
11#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
12#025-5032-00
1.130 ID X 1.75 OD X 1 Length
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
13#026-0098-00
Battery Hold Down Plate-Revolt--Orange
Qty Used: 1Regular price $15.91 USDRegular priceUnit price per
-
15#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
16#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
17#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
18#068-8051-00
2019 Stand-On Battery
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
-
22#033-5034-00
4 3/4 Motor Pulley - DB74-601
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
23#091-0418-00
2017 Walk Behind 36" Deck Belt Route
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
24#015-0543-00
Exhaust Assembly-2018 Kawasaki Walk Behind
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
26#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
