Transaxles

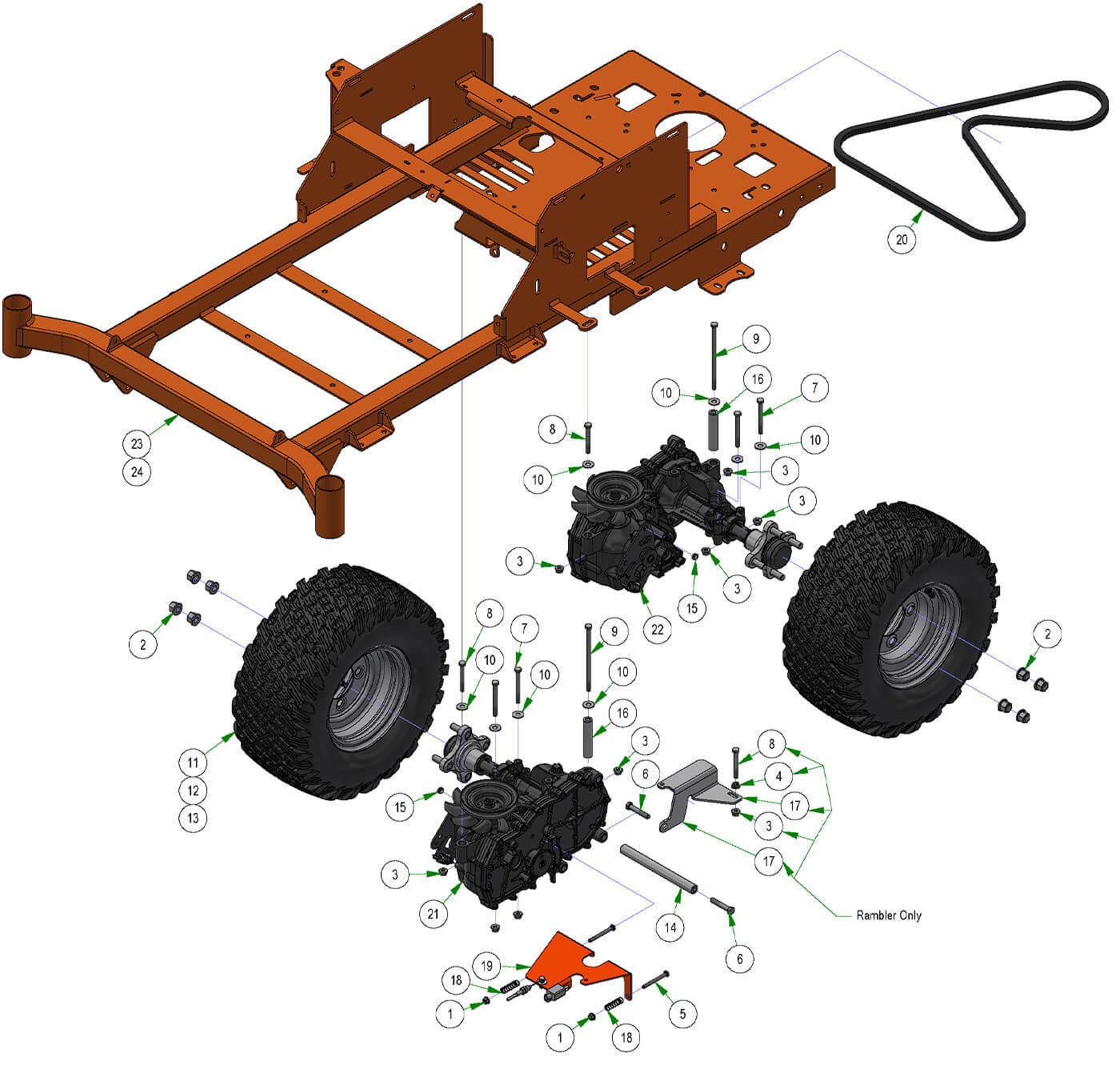

Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 2 Acorn Lug Nut (Qty 8)
- 3 5/16-18 Nylon Flange Nut (Qty 9)
- 4 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 5 ¼-20 x 2-1/2 Gr2 Hex C/S Zinc (Qty 2)
- 6 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 7 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 8 5/16 x 2 1/2 Bolt (Qty 3)
- 9 5/16-18 X 6 GR 5 Hex Bolt Zinc (Qty 2)
- 10 5/16 USS Flat Washer Zinc (Qty 8)
- 11 Rear Wheel Assy Reaper (18x8.5-8) (Qty 2)
- 12 18x9.50-8 Tire and Wheel - Black Wheel (Qty 2)
- 13 Rear Wheel Assy Reaper (18x9.5-8) (Qty 2)
- 14 2017 Transaxle Spacer-MZ (Qty 1)
- 15 Drive Arm Transaxle Spacer (Qty 2)
- 16 2017 Transaxle Spacer (Qty 2)
- 17 Ogura Clutch Belt Retainer--Plated (Qty 1)
- 18 Spring-Brake Lock Bracket MZ (Qty 2)
- 19 MZ Brake Plate Assembly w/ Brake Cable (Qty 1)
- 20 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 21 Magnum RH Transaxle (Qty 1)
- 22 Magnum LH Transaxle (Qty 1)
- 23 2025 MZ 42-48 Frame--Orange (Qty 1)
- 24 2025 MZ-Avenger 54-60 Frame--Orange (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
2#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
5#018-1076-00
¼-20 x 2-1/2 Gr2 Hex C/S Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
6#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
7#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
8#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
9#018-5355-00
5/16-18 X 6 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
10#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
11#022-2050-25
Rear Wheel Assy Reaper (18x8.5-8)
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
12#022-8050-22
18x9.50-8 Tire and Wheel - Black Wheel
Qty Used: 2Regular price $153.98 USDRegular priceUnit price per
-
13#022-8050-25
Rear Wheel Assy Reaper (18x9.5-8)
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
14#025-0016-00
2017 Transaxle Spacer-MZ
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
15#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
16#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
17#026-0368-00
Ogura Clutch Belt Retainer--Plated
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
18#034-3050-00
Spring-Brake Lock Bracket MZ
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
19#039-0035-22
MZ Brake Plate Assembly w/ Brake Cable
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
20#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
21#050-4070-00
2017 EZT - Right - MZ Models
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
22#050-4071-00
2017 EZT - Left - MZ Models
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
23#070-2500-00
2025 MZ 42-48 Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
24#070-2501-00
2025 MZ-Avenger 54-60 Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
