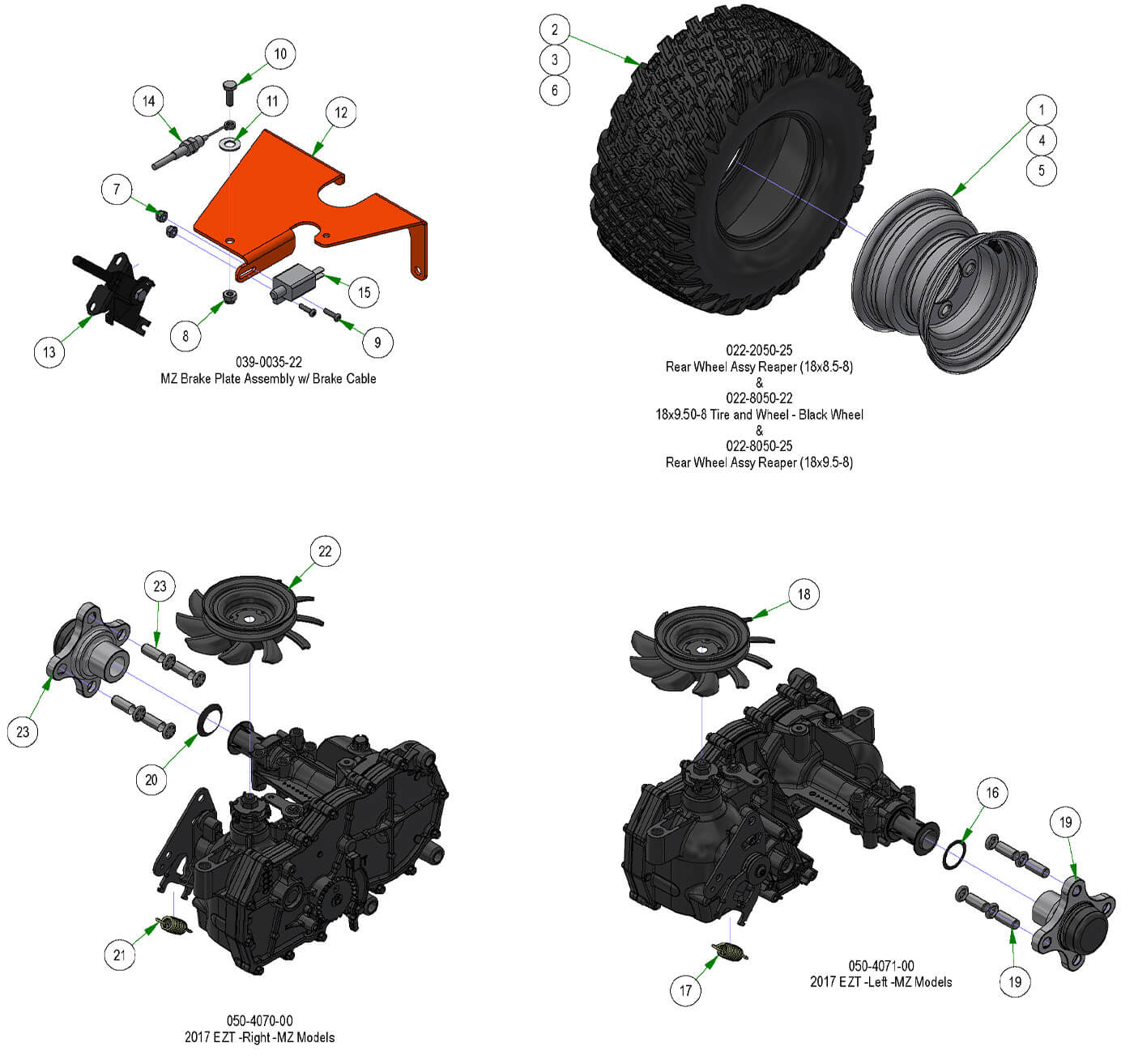

Transaxle Subassemblies
Parts Index
- 1 Rim for 022-2050-22 / 022-2050-25 (Qty 2)
- 2 Tire Only for Rear Wheel Assy Reaper (18x8.5-8) (Qty 2)
- 3 18x9.50-8 Rear Tire Only 48 MZ (Qty 2)
- 4 Black Rear Wheel 48in MZ (Qty 2)
- 6 Tire Only for Rear Wheel Assy Reaper (18x9.5-8) (Qty 2)
- 7 10-24 Nylon Insert Locknut Zin (Qty 2)
- 8 1/4-20 Nylon Insert Locknut Zi (Qty 1)
- 9 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 10 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 11 .390x.750x.062 Nylon Washer (Qty 1)
- 12 Brake Lock Bracket (Qty 1)
- 13 Universal Throttle Head - 2012 (Qty 1)
- 14 2017 MZ Brake Cable- 18.37" CABLE ONLY (Qty 1)
- 15 Safety Switch (Qty 1)
- 16 MZ Seal & Retainer Kit (Qty 1)
- 17 Gold Transaxle Spring (Qty 1)
- 18 Fan/Pulley Kit for ZT / 2017 MZ (Qty 1)
- 19 MZ 4 Bolt Hub Kit (Qty 1)
- 20 MZ Seal & Retainer Kit (Qty 1)
- 21 Gold Transaxle Spring (Qty 1)
- 22 Fan/Pulley Kit for ZT / 2017 MZ (Qty 1)
- 23 MZ 4 Bolt Hub Kit (Qty 1)
-
1#022-2051-22
Rim for 022-2050-22
Qty Used: 2Regular price $89.99 USDRegular priceUnit price per
-
2#022-2053-00
Tire Only for Rear Wheel Assy Reaper (18x8.5-8)
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
3#022-8025-00
18x9.50-8 Rear Tire Only 48 MZ
Qty Used: 2Regular price $159.99 USDRegular priceUnit price per
-
4#022-8026-22
Black Rear Wheel 48in MZ
Qty Used: 2Regular price $54.99 USDRegular priceUnit price per
-
6#022-8052-00
Tire Only for Rear Wheel Assy Reaper (18x9.5-8)
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
7#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
8#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
9#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
10#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
11#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
12#039-0035-00
Brake Lock Bracket
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
13#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
14#064-8057-17
2017 MZ Brake Cable- 18.37" CABLE ONLY
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
15#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
1620#015-8003-00

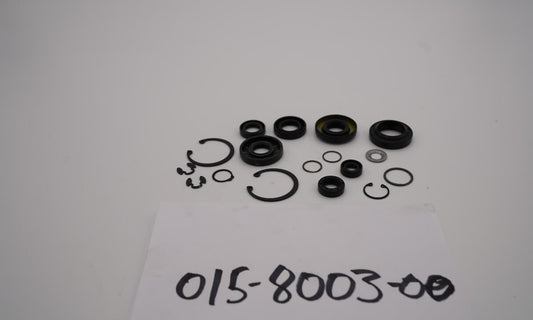

MZ Seal & Retainer Kit
Qty Used: 1Regular price $80.88 USDRegular priceUnit price per
-
1721#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
1822#050-2075-00
Fan/Pulley Kit for ZT / 2017 MZ
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
1923#050-2078-00

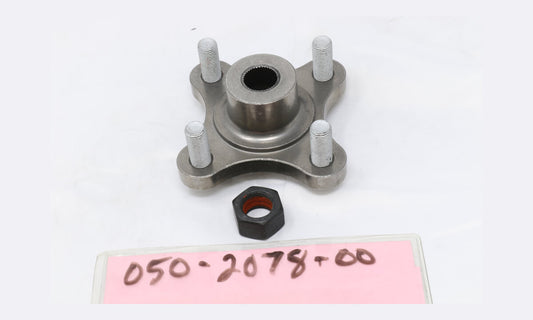

MZ 4 Bolt Hub Kit
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
