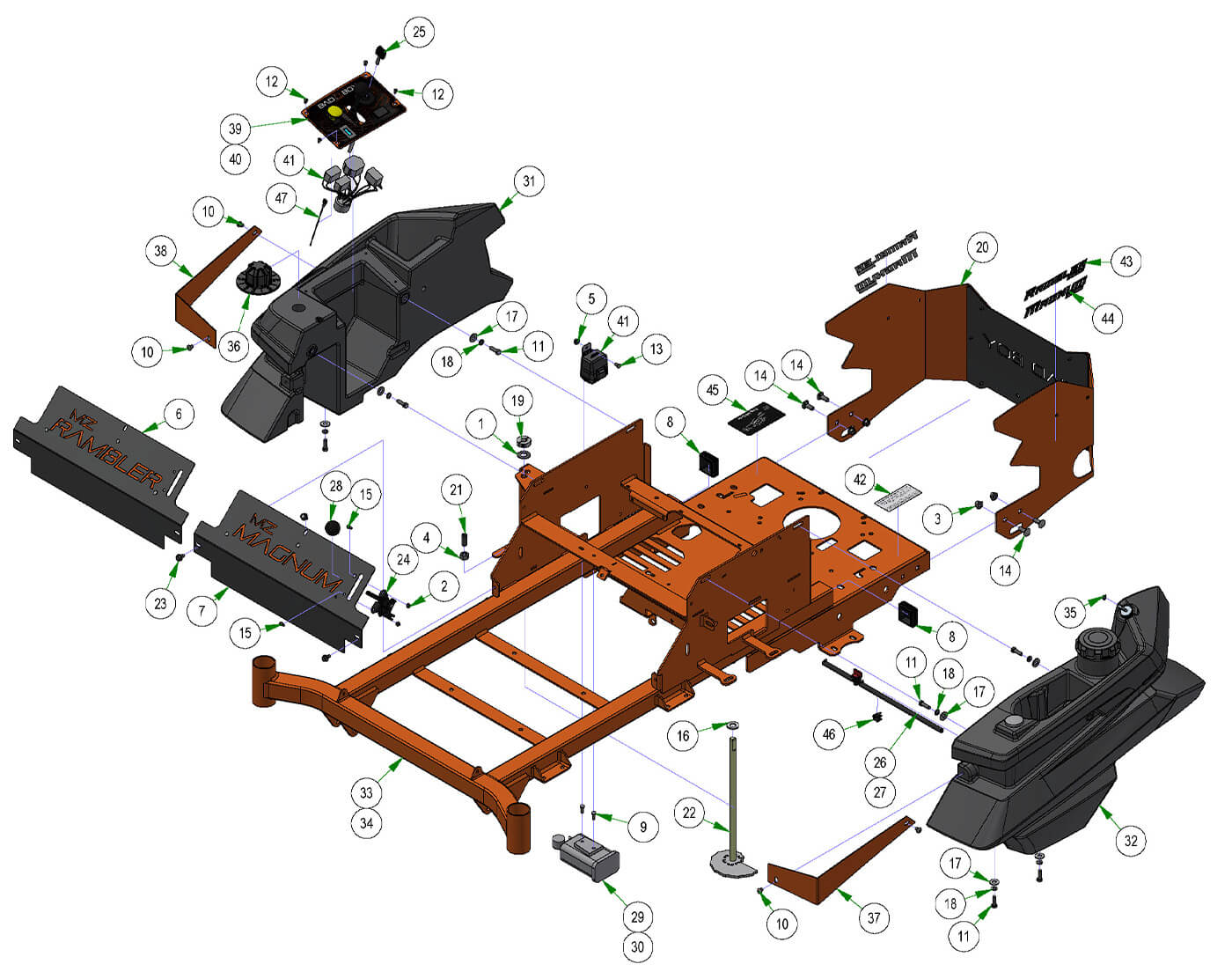

Fuel Tank & Rear Cover
Parts Index
- 1 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 2 10-24 Nylon Insert Locknut Zin (Qty 2)
- 3 3/8 Nylock Flange Nut (Qty 4)
- 4 1/2-13 Hex Nuts Zinc (Qty 1)
- 5 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 6 2023 Rambler Cooler Cover Assembly (Qty 1)
- 7 2023 Magnum Cooler Cover Assembly (Qty 1)
- 8 Frame Plug 2x2 (Qty 2)
- 9 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 10 5/16-18 x 3/8 Button SOC CAP BLACK (Qty 4)
- 11 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 12 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 13 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 14 3/8 x 1 Carriage Bolt (Qty 4)
- 15 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 16 .630 ID X 1.122 OD X .142 THK (Qty 1)
- 17 5/16 USS Flat Washer Zinc (Qty 7)
- 18 5/16 Lock washer Zinc (Qty 7)
- 19 Split Collar (Qty 1)
- 20 2025 Rambler/Magnum backplate assembly (Qty 1)
- 21 Deck Height Cam Plunger (Qty 1)
- 22 2017 ZT Deck Height Bar Assy. (Qty 1)
- 23 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 3)
- 24 MZ Brake Plate Assembly w/ Brake Cable (Qty 1)
- 25 Ignition Key (Qty 1)
- 28 Throttle / Brake Head Ball (Qty 1)
- 29 MZ Briggs/CXI EPA Cannister Assy (Qty 1)
- 30 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 32 2025 Aven, Magnum & Rambler LH Fuel Tank (Qty 1)
- 33 2025 MZ 42-48 Frame--Orange (Qty 1)
- 34 2025 MZ-Avenger 54-60 Frame--Orange (Qty 1)
- 35 MZ Tank Hose Clamp 1/4 Vinyl (Qty 1)
- 36 Deck Height Dial (Qty 1)
- 37 2025 Metal Tank Insert-Right--Painted (Qty 1)
- 39 2025 Small Mower Control Panel Assembly (Qty 1)
- 41 2025 Wiring Harness With Clips and Light Option (Qty 1)
- 43 MY24 Rambler Back Plate Decal (Qty 2)
- 44 MY24 Magnum Back Plate Decal (Qty 2)
- 45 Pump Belt Route Decal-Pump Pla (Qty 1)
- 47 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
-
1#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
2#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
4#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-

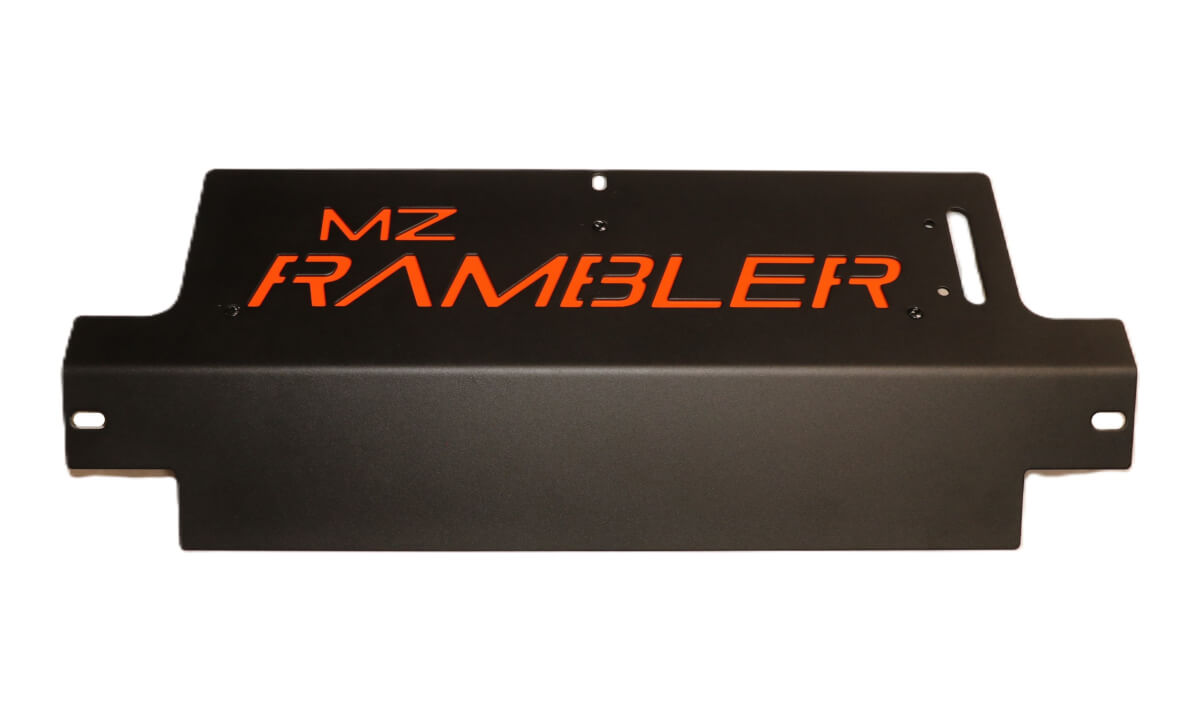

6#014-3317-23
2023 Rambler Cooler Cover Assembly
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-

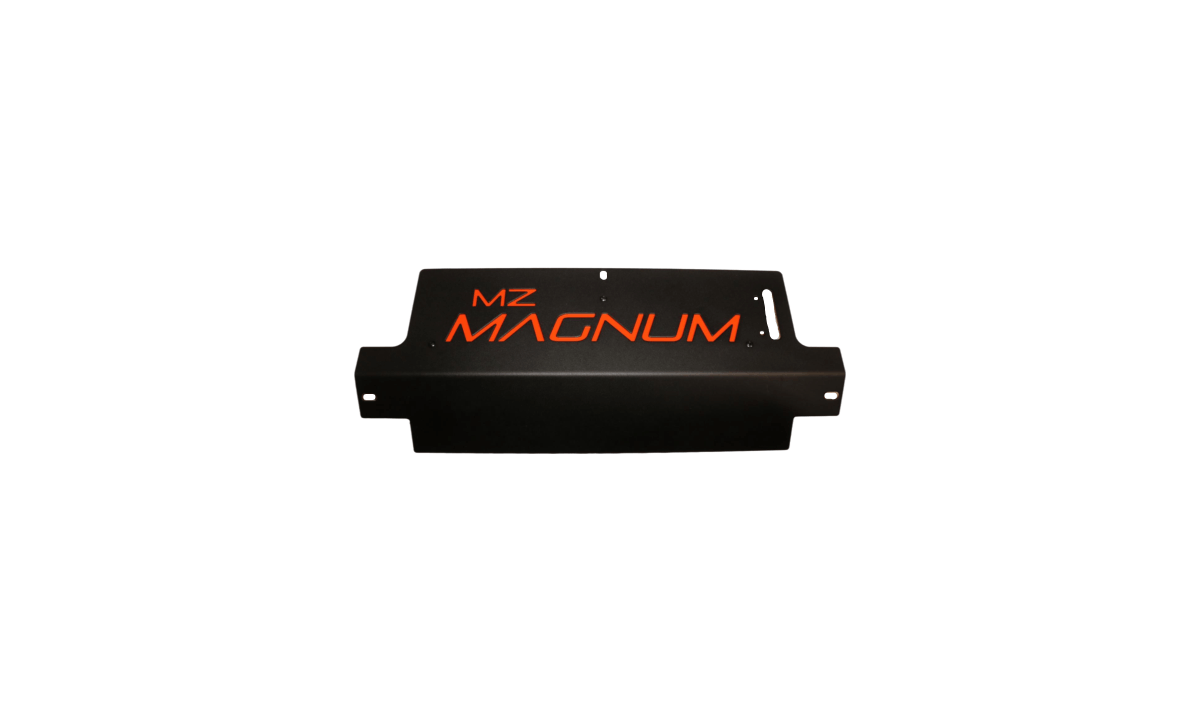

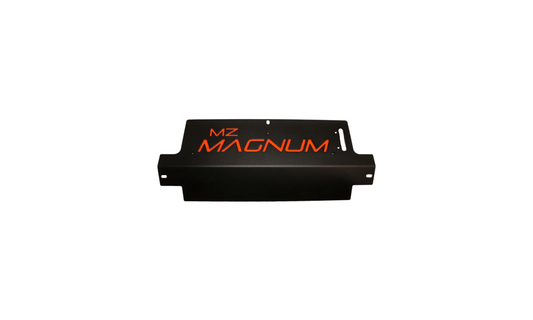

7#014-3318-23
2023 Magnum Cooler Cover Assembly
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
8#014-9000-00
Frame Plug 2x2
Qty Used: 2Regular price $2.48 USDRegular priceUnit price per
-
9#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
10#018-0116-00
5/16-18 x 3/8 Button SOC CAP BLACK
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
11#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
12#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
13#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
14#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
15#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
16#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
17#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
18#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
19#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
20#026-0400-25
2025 Rambler/Magnum backplate assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
21#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
22#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
23#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
24#039-0035-22
MZ Brake Plate Assembly w/ Brake Cable
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
25#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
28#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
No sequence found for SKU:
MZ Briggs/CXI EPA Cannister Assy
Regular price $0.00 USDRegular priceUnit price per
-
30#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
32#067-2026-00
2025 Aven, Magnum & Rambler LH Fuel Tank
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
33#070-2500-00
2025 MZ 42-48 Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
34#070-2501-00
2025 MZ-Avenger 54-60 Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
35#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 1Regular price $1.45 USDRegular priceUnit price per
-
36#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
43#091-0508-00
MY24 Rambler Back Plate Decal
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
44#091-0509-00
MY24 Magnum Back Plate Decal
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
45#091-3017-00
Pump Belt Route Decal-Pump Pla
Qty Used: 1Regular price $4.47 USDRegular priceUnit price per
-
47#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
