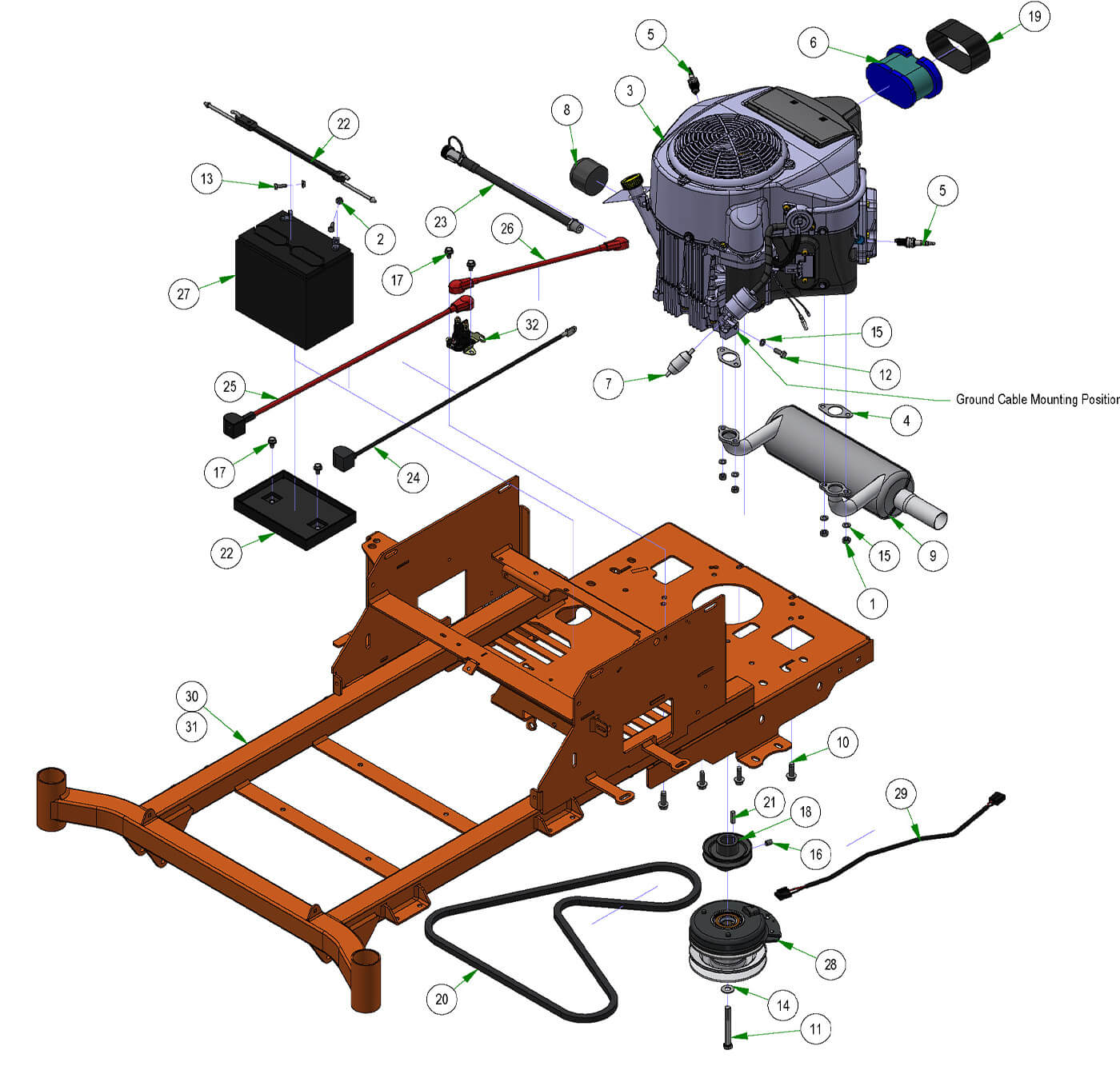

Engine - Kawasaki
Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 2 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 3 726cc Kawasaki Engine-FR651V (Qty 1)
- 4 Exhaust Gasket for 015-0077-00 (Qty 2)
- 5 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 6 22-26 Kaw Air Filter FR / FS (Qty 1)
- 7 Universal Inline Fuel Filter (Qty 1)
- 8 Kawasaki Oil Filter (Qty 1)
- 9 2017 Kawasaki Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 10 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 11 7/16-20x3.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 12 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 13 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 14 3/8 USS Flat Washer Zinc (Qty 1)
- 15 5/16 Lock washer Zinc (Qty 5)
- 16 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 17 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 18 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 19 Air Filter Pre-Cleaner for KAW (Qty 1)
- 20 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 21 1/4 x 1 Square Key (Qty 1)
- 22 2023 Battery Hold Down Assembly (Qty 1)
- 23 Kawasaki Oil Drain (Qty 1)
- 24 24 inch Black Cable - MZ/ZT (Qty 1)
- 25 24 Red Battery Cable (Qty 1)
- 26 14" Red Battery Cable (Qty 1)
- 27 Battery - All models except Renegade and Revolt (Qty 1)
- 28 105 Ft Lb. Clutch- 1” Shaft (Qty 1)
- 29 Clutch Pigtail (Qty 1)
- 30 2025 MZ 42-48 Frame--Orange (Qty 1)
- 31 2025 MZ-Avenger 54-60 Frame--Orange (Qty 1)
- 32 Solenoid (752-1251-210HP) (Qty 1)
