Engine - CXI Briggs

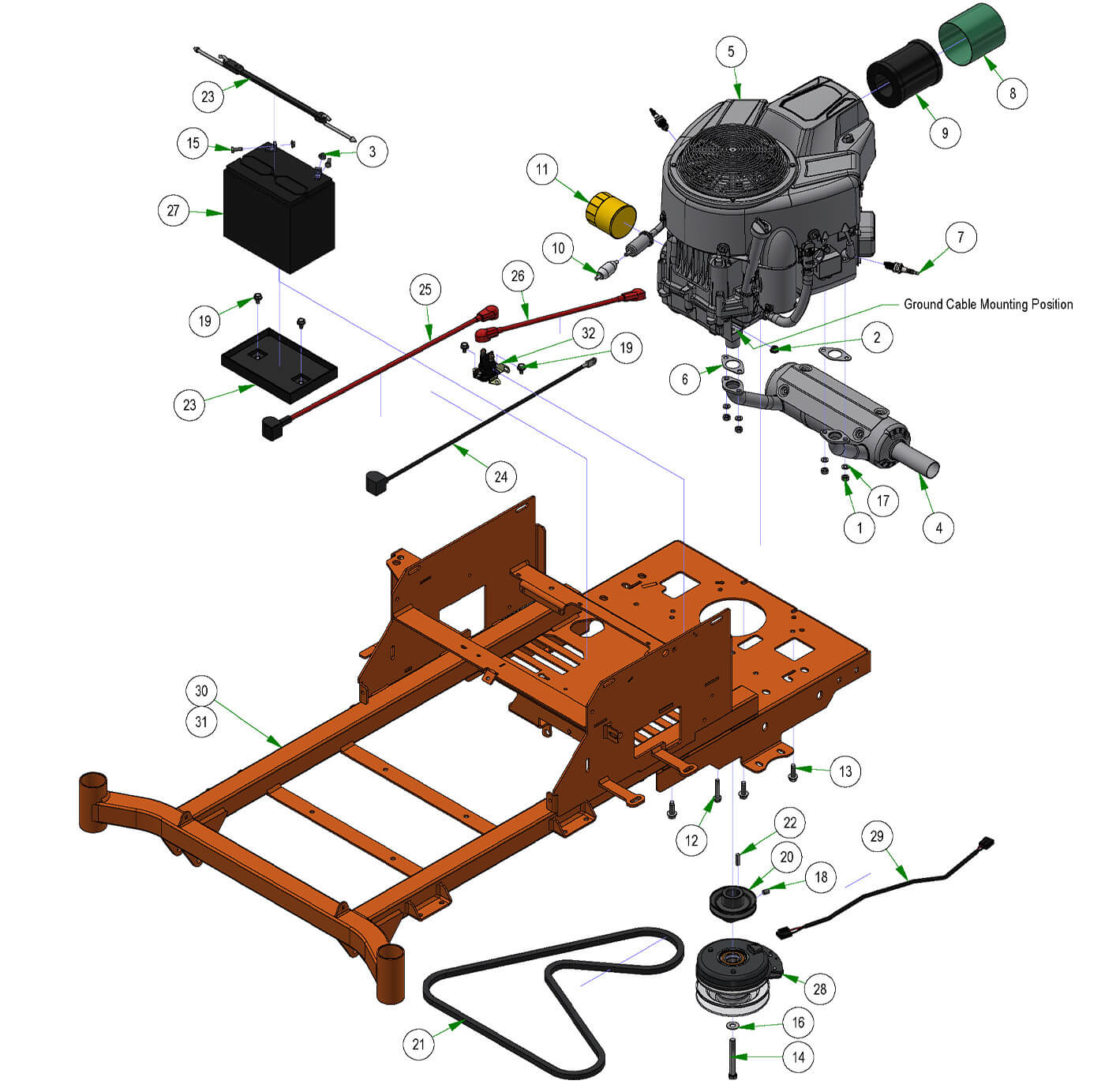

Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 2 5/16-18 Gr5 Distorted-Thread Flange Locknut (Qty 1)
- 3 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 4 810cc Vanguard Exhaust (Qty 1)
- 5 Vanguard 25hp CXI with out Oil Filter (Qty 1)
- 6 Exhaust Gasket for 015-0077-00 (Qty 2)
- 7 Spark Plug-Kohler/Briggs (Qty 2)
- 8 Pre-Cleaner for Vanguard CXI Engine (Qty 1)
- 9 OBSOLETE USE 063-3003-00 (Qty 1)
- 10 Universal Inline Fuel Filter (Qty 1)
- 11 Briggs Oil Filter (Qty 1)
- 12 5/16-18x1 ¾ Gr5 Hex Flange Bolt Zinc Clear (Qty 1)
- 13 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 14 7/16-20x3.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 15 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 16 3/8 USS Flat Washer Zinc (Qty 1)
- 17 5/16 Lock washer Zinc (Qty 4)
- 18 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 19 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 20 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 21 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 22 1/4 x 1 Square Key (Qty 1)
- 23 2023 Battery Hold Down Assembly (Qty 1)
- 24 24 inch Black Cable - MZ/ZT (Qty 1)
- 25 24 Red Battery Cable (Qty 1)
- 26 14" Red Battery Cable (Qty 1)
- 27 Battery - All models except Renegade and Revolt (Qty 1)
- 28 105 Ft Lb. Clutch- 1” Shaft (Qty 1)
- 29 Clutch Pigtail (Qty 1)
- 30 2025 MZ 42-48 Frame--Orange (Qty 1)
- 31 2025 MZ-Avenger 54-60 Frame--Orange (Qty 1)
- 32 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-0101-00
5/16-18 Gr5 Distorted-Thread Flange Locknut
Qty Used: 1Regular price $0.39 USDRegular priceUnit price per
-
3#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
4#015-0057-00
2017 Compact Outlaw Exhaust 810 Vanguard
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
5#015-0510-00
Vanguard 25hp CXI with out Oil Filter
Qty Used: 1Regular price $2,599.99 USDRegular priceUnit price per
-
6#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
7#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
8#063-1000-00
Pre-Cleaner for Vanguard CXI Engine
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
9#063-1005-00
OBSOLETE USE 063-3003-00
Qty Used: 1Regular price $30.45 USDRegular priceUnit price per
-
10#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
11#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $24.79 USDRegular priceUnit price per
-
12#018-0114-00
5/16-18x1 ¾ Gr5 Hex Flange Bolt Zinc Clear
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
13#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
14#018-5052-21
7/16-20x3.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
15#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
16#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
17#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
18#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
19#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
20#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
21#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
22#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
23#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
24#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
25#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
26#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
27#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
28#070-0057-00
105 Ft Lb. Clutch- 1” Shaft
Qty Used: 1Regular price $139.99 USDRegular priceUnit price per
-
29#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
30#070-2500-00
2025 MZ 42-48 Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
31#070-2501-00
2025 MZ-Avenger 54-60 Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
32#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
