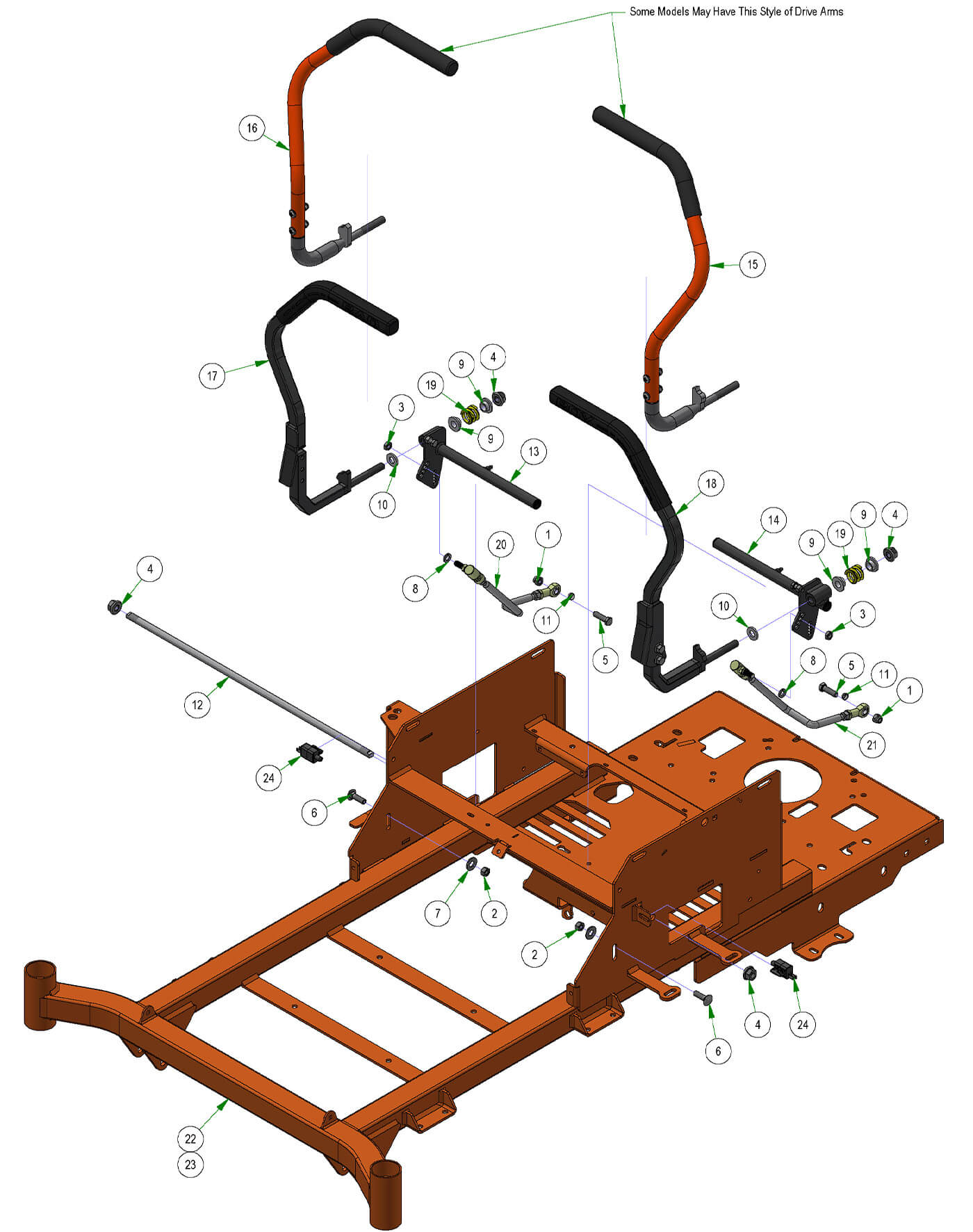

Drive Arms
Parts Index
- 1 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 2 3/8-16 Hex Nuts Zinc (Qty 2)
- 3 3/8-24 Hex Nut Zinc (Qty 2)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 5 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 6 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 7 3/8 USS Flat Washer Zinc (Qty 2)
- 8 3/8 Lockwasher Zinc (Qty 2)
- 9 .515 ID Plastic Shoulder Washer (Qty 4)
- 10 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 11 Drive Arm Transaxle Spacer (Qty 2)
- 12 2021 Maverick Steering Actuator Rod (Qty 1)
- 13 2021 Maverick Drive Arm Actuator RH Assembly (Qty 1)
- 14 2021 Maverick Drive Arm Actuator LH Assembly (Qty 1)
- 15 Orange ZT Steering Arm Left- (Qty 1)
- 16 Orange ZT Steering Arm-Right (Qty 1)
- 17 Small Mower Square Drive Arm RH Assembly (Qty 1)
- 18 Small Mower Square Drive Arm LH Assembly (Qty 1)
- 19 Drive Lever Housing Spring (Qty 2)
- 20 Push Rod RH (Assembly) (Qty 1)
- 21 Push Rod LH (Assembly) (Qty 1)
- 22 2025 MZ 42-48 Frame--Orange (Qty 1)
- 23 2025 MZ-Avenger 54-60 Frame--Orange (Qty 1)
- 24 Rail Mount Safety Switch (Qty 2)
-
1#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
2#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
3#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
4#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
5#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
7#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
8#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
9#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
10#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
12#028-0049-00
2021 Maverick Steering Actuator Rod
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
13#031-0053-21
2021 Maverick Drive Arm Actuator RH Assembly
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
14#031-0054-21
2021 Maverick Drive Arm Actuator LH Assembly
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
15#031-8850-70
Black ZT Steering Arm Left-
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
16#031-8851-70
Black ZT Steering Arm-Right
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
17#031-9045-00
Small Mower Square Drive Arm RH Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
18#031-9046-00
Small Mower Square Drive Arm LH Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
19#034-8025-00
Drive Lever Housing Spring
Qty Used: 2Regular price $3.70 USDRegular priceUnit price per
-
20#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
21#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
22#070-2500-00
2025 MZ 42-48 Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
23#070-2501-00
2025 MZ-Avenger 54-60 Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
24#077-8075-00
Rail Mount Safety Switch
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
