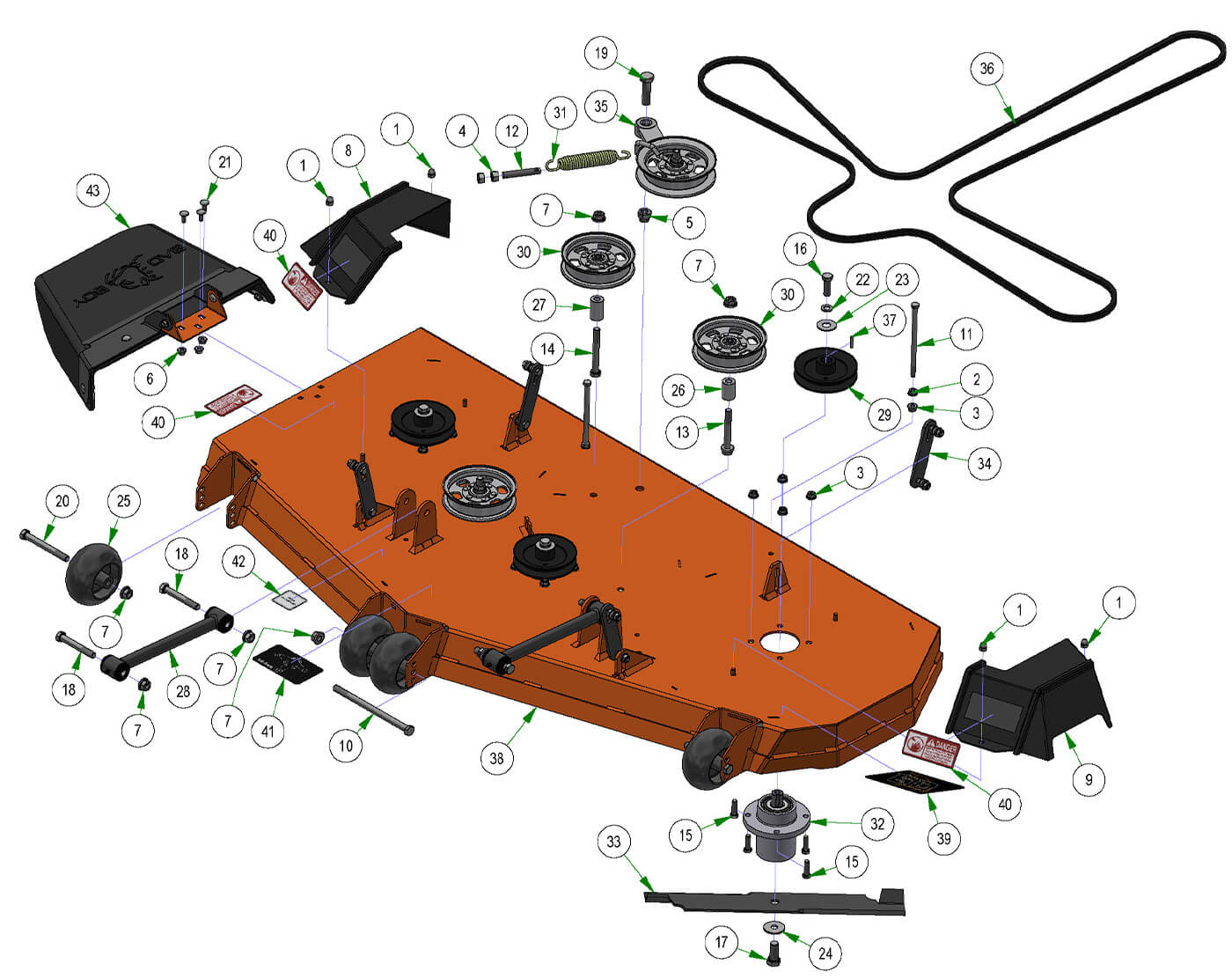

60" Deck

Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 3 3/8 Nylock Flange Nut (Qty 14)
- 4 1/2-13 Hex Nuts Zinc (Qty 2)
- 5 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 6 5/16-18 Nylon Flange Nut (Qty 3)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 10)
- 8 RH Pulley Cover 54"/60" (Qty 1)
- 9 LH Pulley Cover 54"/60" (Qty 1)
- 10 1/2-13 x 8" Grade 5 Hex Bolt (Qty 1)
- 11 3/8-16 x 6.5 Hex Head GR.5 (Qty 2)
- 12 All Thread (Qty 1)
- 13 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 14 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 15 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 12)
- 16 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 17 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 18 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 20 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 2)
- 21 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 3)
- 22 1/2 Lockwasher Zinc (Qty 3)
- 23 5/8 Flat Washer (Qty 3)
- 24 1/2 Belleville Washer #K2000-G (Qty 3)
- 25 Deck Wheel (Qty 4)
- 26 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 27 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 28 Hybrid Turnbuckle (Qty 2)
- 29 60" MZ Deck Pulley (Qty 3)
- 30 5 3/4 Idler Pulley-Capitol (Qty 3)
- 31 2015 Deck Idler Spring (Qty 1)
- 32 Spindle Assembly-Magnum Models (Qty 3)
- 33 60" Magnum Mower Blade (Qty 3)
- 34 MZ/ZT Deck Hanger Assembly (Qty 4)
- 35 Maverick HD & Down Deck Idler Assembly (Qty 1)
- 36 60 Pup/Lightning/ZT/Mav/Avenger/ - 54 Rebel/Rogue (Qty 1)
- 37 3/16 X 1 Square Machine Key (Qty 3)
- 39 60" Grip Deck Decal (Qty 1)
- 40 Danger Decal-Spindle/Discharge (Qty 3)
- 41 Deck Belt Route Decal (Qty 1)
- 42 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 43 MZ Discharge Chute Assembly (Qty 1)
