Transaxle

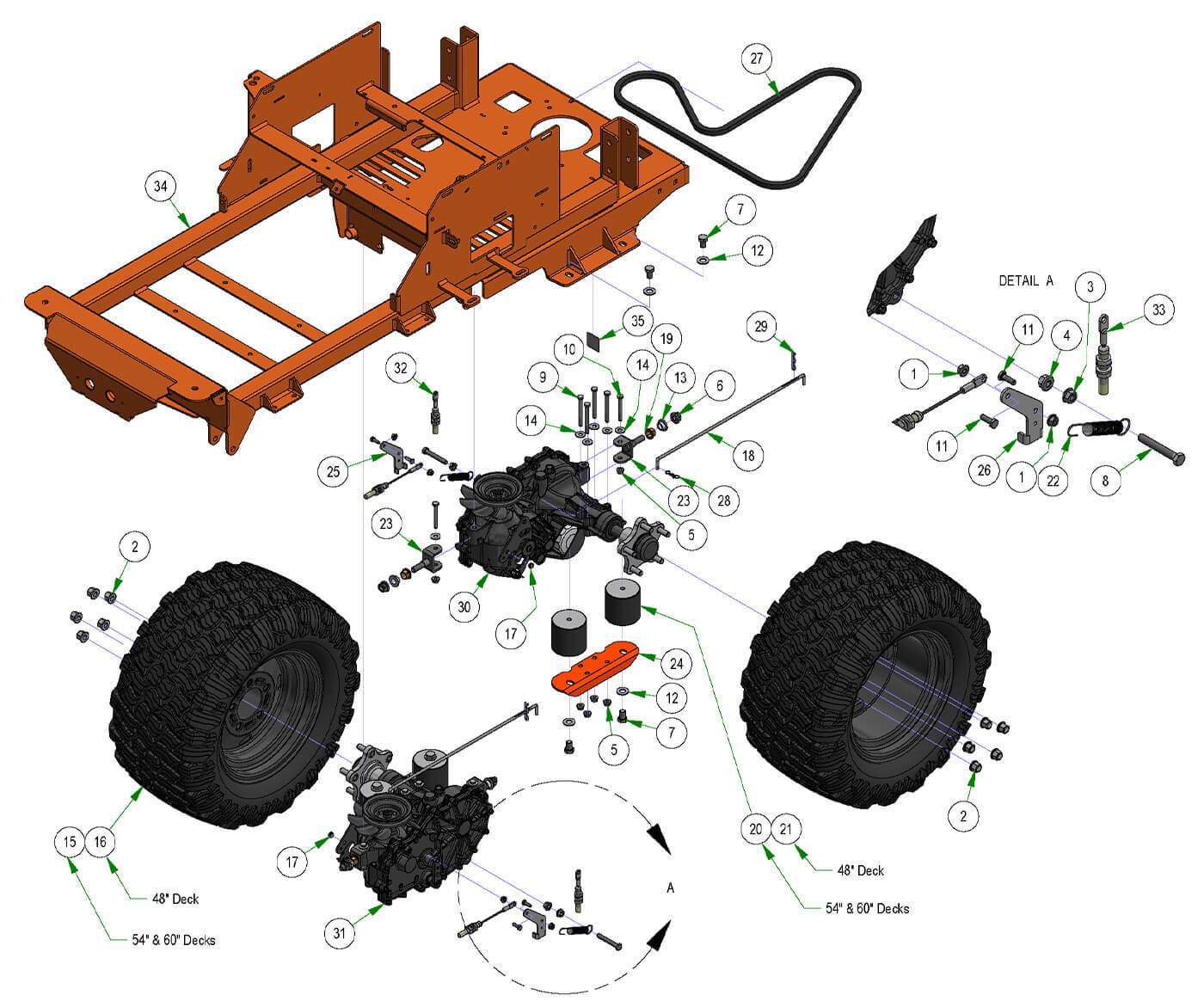

Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 2 Acorn Lug Nut (Qty 10)
- 3 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 4 3/8 Nylock Flange Nut (Qty 2)
- 5 5/16-18 Nylon Flange Nut (Qty 12)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 7 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 8)
- 8 3/8 x 2 1/2 Hex Tap Bolt - (Qty 2)
- 9 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 8)
- 10 5/16 x 2 1/2 Bolt (Qty 4)
- 11 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 12 1/2 SAE Flat Washer GR 8 (Qty 8)
- 13 .515 ID Plastic Shoulder Washer (Qty 4)
- 14 5/16 USS Flat Washer Zinc (Qty 12)
- 15 23x9-12 Reaper Turf Assembly (Qty 2)
- 16 2019 Maverick Assembly 23x11-12 Reaper Turf (Qty 2)
- 17 Drive Arm Transaxle Spacer (Qty 2)
- 18 Neutral Rod (Qty 2)
- 19 Bronze Bushing - SF-2024-8 (Qty 4)
- 20 Isolator (Green Dot) (Qty 4)
- 21 Isolator (Red Dot) (Qty 4)
- 22 Brake Return Spring (Qty 2)
- 23 Transaxle Mount-Field Goal (Qty 4)
- 24 EZT Rear Susp Transaxle Mount--Plated (Qty 2)
- 25 Brake Arm Ext. Bracket Paired With 039-1321-00 (Qty 1)
- 26 Brake Arm Ext. Bracket Paired With 039-1320-00 (Qty 1)
- 27 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 28 Bow Pin (Qty 2)
- 29 Neutral Rod Clip (Qty 2)
- 30 2025 LH 3200 Transaxle Maverick (Qty 1)
- 31 2025 RH 3200 Transaxle Maverick (Qty 1)
- 32 2021 Load Balanced Brake Cable 1 (Qty 1)
- 33 2021 Load Balanced Brake Cable 2 (Qty 1)
- 35 Patent Decal (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
2#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
3#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
4#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
5#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
6#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
7#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
8#018-2071-00
3/8 x 2 1/2 Hex Tap Bolt -
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
9#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
10#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
11#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
12#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
13#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
14#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
15#022-4040-00
23x9-12 Reaper Turf Assembly
Qty Used: 2Regular price $299.99 USDRegular priceUnit price per
-
16#022-4200-00
2019 Maverick Assembly 23x11-12 Reaper Turf
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
17#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
18#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
19#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
20#032-9000-00
Isolator (Green Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
21#032-9002-00
Isolator (Red Dot)
Qty Used: 4Regular price $66.33 USDRegular priceUnit price per
-
22#034-1026-00
Brake Return Spring
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
23#039-0001-00
Transaxle Mount
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
24#039-1306-00
EZT Rear Susp Transaxle Mount--Plated
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
25#039-1320-00
Brake Arm Extension Bracket
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
26#039-1321-00
Brake Arm Extension Bracket
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
27#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
-
29#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
30#050-0075-03
2025 LH 3200 Transaxle Maverick
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
31#050-0080-03
2025 RH 3200 Transaxle Maverick
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
32#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
33#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
No sequence found for SKU:
Patent Decal
Regular price $0.00 USDRegular priceUnit price per
