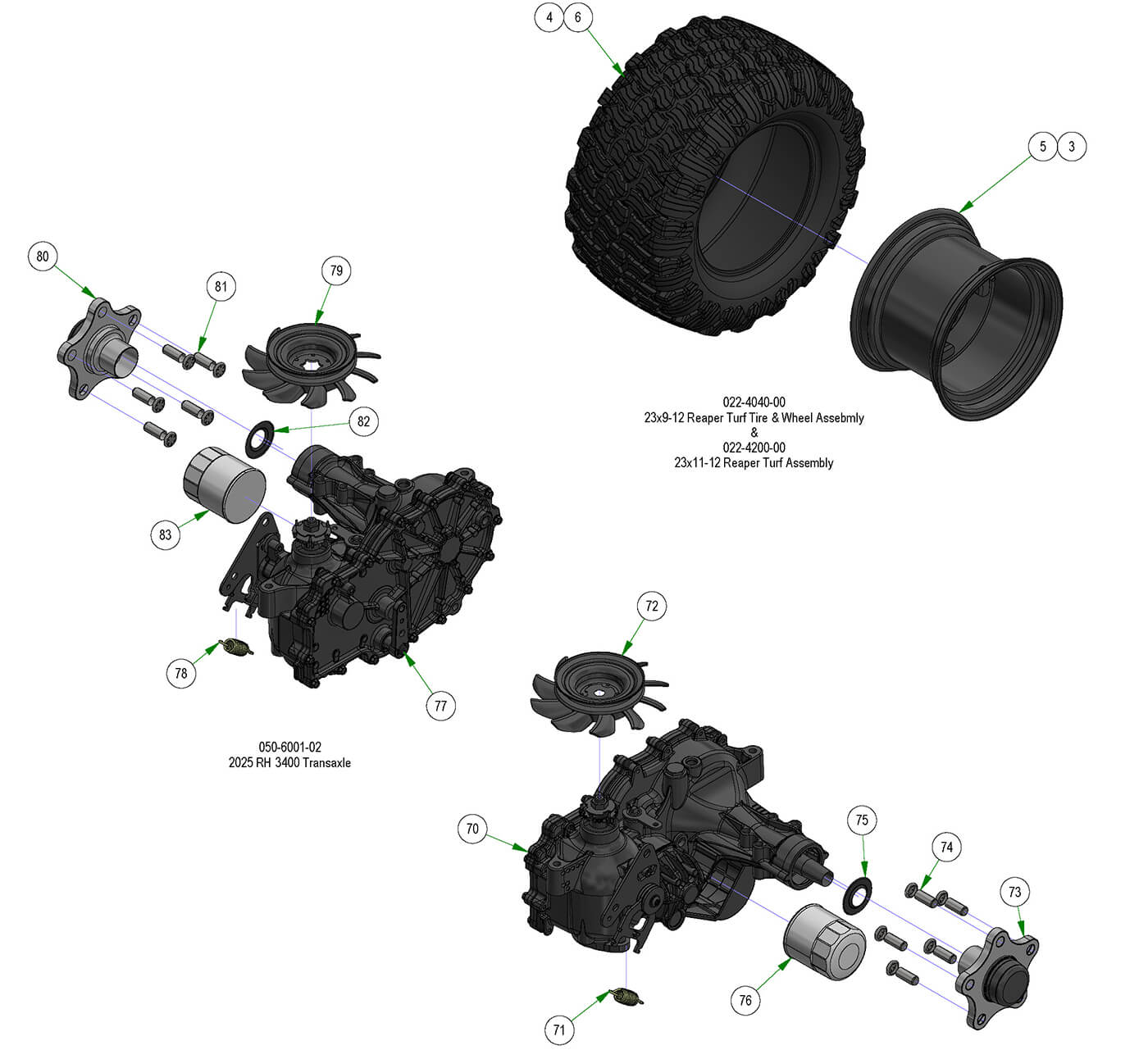

Wheel Subassemblies
Parts Index
- 3 12x7" Black Wheel-48" EZT Only (Qty 2)
- 4 23x9 - 12 Reaper Turf Tire Only (Qty 2)
- 5 2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00 (Qty 2)
- 6 2019 Maverick 23x11-12 Reaper Turf Fits 022-4200-0 (Qty 2)
- 70 2025 LH 3400 Transaxle (Qty 1)
- 71 Gold Transaxle Spring (Qty 1)
- 72 Fan/Pulley Kit for CZT (Qty 1)
- 73 5 Bolt Hub Kit (Qty 1)
- 74 Transaxle Wheel Studs/ Drum Brake Studs (Qty 5)
- 75 Seal Kit for 3400 Transaxle (Qty 1)
- 76 ZT Hydraulic Filter (Qty 1)
- 77 2025 RH 3400 Transaxle (Qty 1)
- 78 Gold Transaxle Spring (Qty 1)
- 79 Fan/Pulley Kit for CZT (Qty 1)
- 80 5 Bolt Hub Kit (Qty 1)
- 81 Transaxle Wheel Studs/ Drum Brake Studs (Qty 5)
- 82 Seal Kit for 3400 Transaxle (Qty 1)
- 83 ZT Hydraulic Filter (Qty 1)
- 90 42" Maverick HD Front Suspension Arm Assy RH (Qty 1)
- 91 42" Maverick HD Front Suspension Arm Assy LH (Qty 1)
-
3#022-3011-00
12x7" Black Wheel-48" EZT Only
Qty Used: 2Regular price $106.99 USDRegular priceUnit price per
-
4#022-4035-00
23x9 - 12 Reaper Turf Tire Only
Qty Used: 2Regular price $149.99 USDRegular priceUnit price per
-
5#022-4070-00
2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00
Qty Used: 2Regular price $131.99 USDRegular priceUnit price per
-
6#022-4195-00
2019 Maverick 23x11-12 Reaper Turf Fits 022-4200-0
Qty Used: 2Regular price $225.99 USDRegular priceUnit price per
-
70#050-6000-02
2025 LH 3400 Transaxle
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
7178#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
7279#050-2072-00
Fan/Pulley Kit for CZT
Qty Used: 1Regular price $59.78 USDRegular priceUnit price per
-
7380#050-2077-00
5 Bolt Hub Kit
Qty Used: 1Regular price $88.97 USDRegular priceUnit price per
-
7481#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 5Regular price $5.10 USDRegular priceUnit price per
-
7582#050-8011-00
Seal Kit for 3400 Transaxle
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
7683#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
77#050-6001-02
2025 RH 3400 Transaxle
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
90#250-2752-22
42\" Maverick HD Front Suspension Arm Assy RH
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
91#250-2802-22
42" Maverick HD Front Suspension Arm Assy LH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
