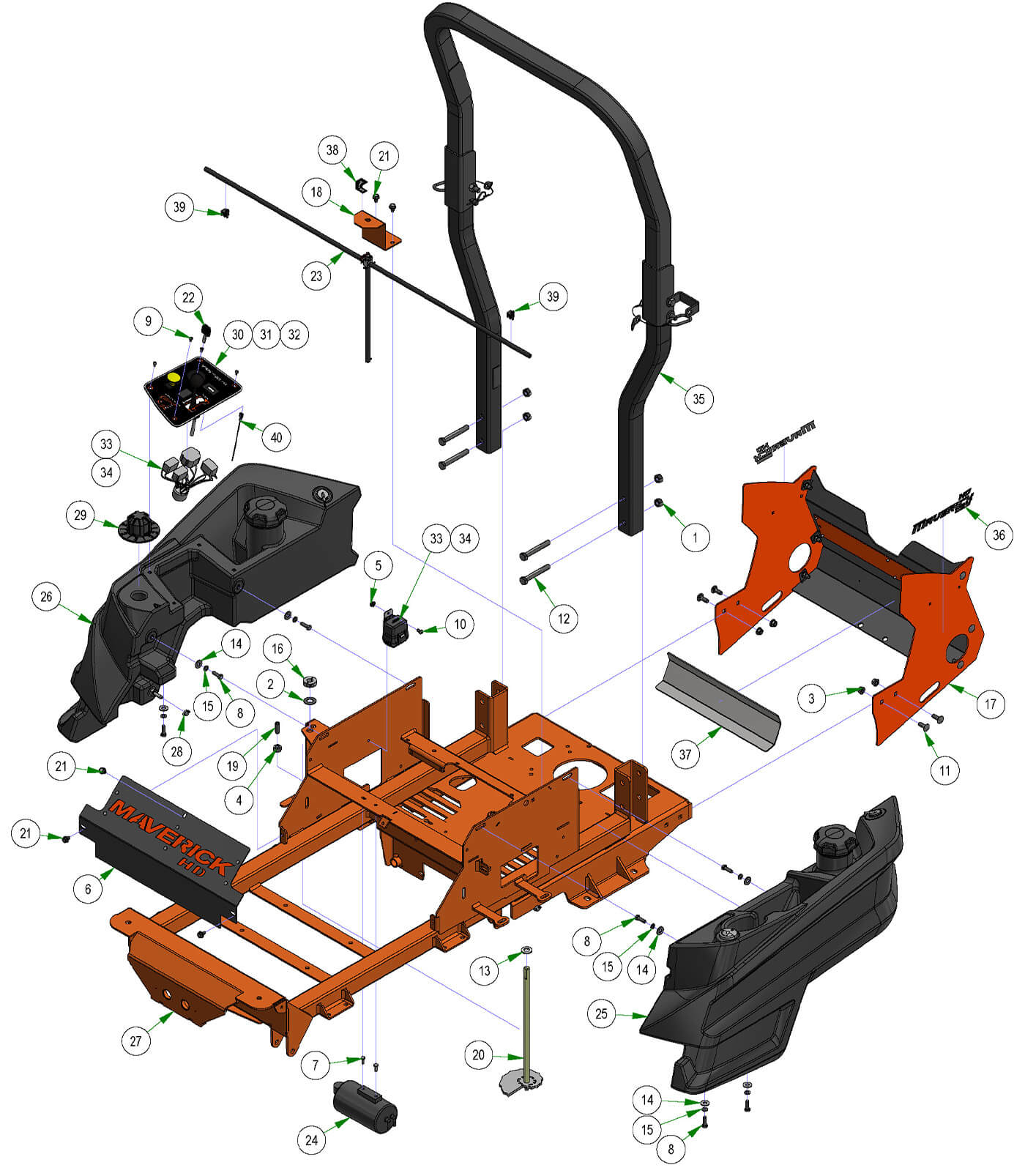

Fuel Tank & Rear Cover
Parts Index
- 1 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 2 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 3 3/8 Nylock Flange Nut (Qty 4)
- 4 1/2-13 Hex Nuts Zinc (Qty 1)
- 5 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 6 Maverick HD Cooler cover (Qty 1)
- 7 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 8 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 7)
- 9 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 10 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 11 3/8 x 1 Carriage Bolt (Qty 4)
- 12 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 13 .630 ID X 1.122 OD X .142 THK (Qty 1)
- 14 5/16 USS Flat Washer Zinc (Qty 7)
- 15 5/16 Lock washer Zinc (Qty 7)
- 16 Split Collar (Qty 1)
- 17 2022 Maverick Rear Cover Assembly (Qty 1)
- 18 Fuel Shut Off Mounting Plate--Orange (Qty 1)
- 19 Deck Height Cam Plunger (Qty 1)
- 20 2017 ZT Deck Height Bar Assy. (Qty 1)
- 21 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 5)
- 22 Ignition Key (Qty 1)
- 25 2021 Maverick Left Side Tank (Qty 1)
- 26 2022 Maverick HD RH Fuel Tank (Qty 1)
- 28 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 2)
- 29 Deck Height Dial (Qty 1)
- 33 2024 Wiring Harness With Clips (Qty 1)
- 34 2025 Wiring Harness With Clips and Light Option (Qty 1)
- 35 Mav, HD 2x2 Folding ROPS (Qty 1)
- 36 MY24 Maverick HD Back Plate Decal (Qty 2)
- 37 Heat Shield (Fiberglass Adhesive) (Qty 1)
- 38 Maverick HD Shut Off Valve Decal (Qty 1)
- 40 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
-
1#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
2#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
4#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
6#014-1001-00
Maverick HD Cooler cover
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
7#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
8#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 7Regular price $0.00 USDRegular priceUnit price per
-
9#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
10#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
11#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
12#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
13#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
14#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
15#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
16#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
17#026-0205-22
2022 Maverick Rear Cover Assembly
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
18#026-0309-00
Fuel Shut Off Mounting Plate--Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
19#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
20#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
21#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 5Regular price $0.89 USDRegular priceUnit price per
-
22#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
25#067-2021-00
2021 Maverick Left Side Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
26#067-2022-00
2022 Maverick HD RH Fuel Tank
Qty Used: 1Regular price $449.99 USDRegular priceUnit price per
-
28#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
29#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
33#086-3600-00
2024 Wiring Harness With Clips
Qty Used: 1Regular price $299.99 USDRegular priceUnit price per
-
35#089-0005-00
2016 Maverick 2x2 Folding ROPS
Qty Used: 1Regular price $396.75 USDRegular priceUnit price per
-
36#091-0513-00
MY24 Maverick HD Back Plate Decal
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
37#091-4050-00
Heat Shield (Fiberglass Adhesive)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
38#091-6021-00
Maverick HD Shut Off Valve Decal
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
40#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
