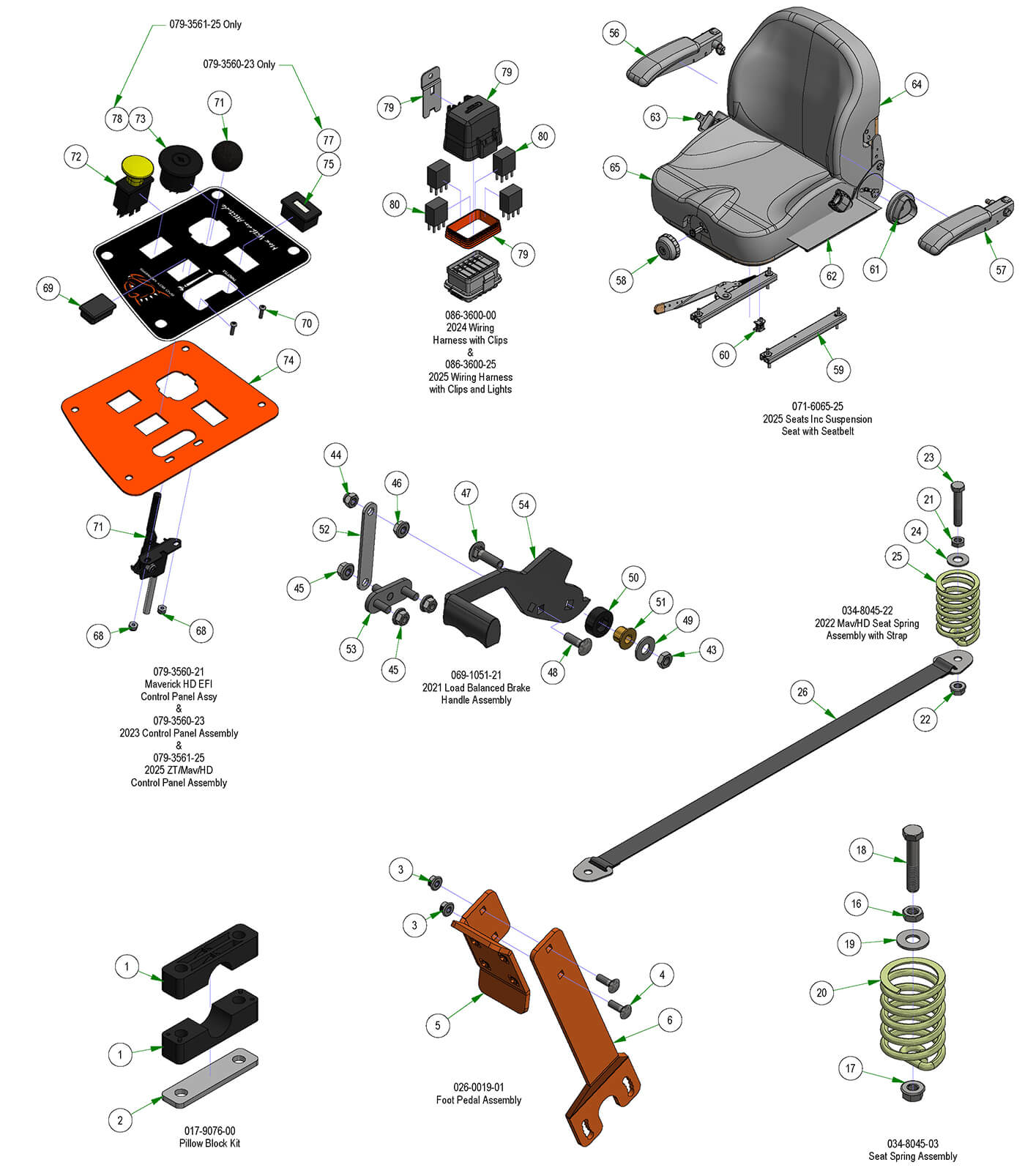

Frame Subassemblies 2
Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 8)
- 2 2017 Magnum Pillow Block-Metal Plate (Qty 4)
- 3 5/16-18 Nylon Flange Nut (Qty 2)
- 4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 5 Foot Pedal--Orange (Qty 1)
- 6 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 16 3/8-16 Half Jam Nut (Qty 1)
- 17 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 18 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 19 3/8 USS Flat Washer Zinc (Qty 1)
- 20 Seat Spring (Qty 1)
- 21 3/8-16 Half Jam Nut (Qty 1)
- 22 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 23 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 24 3/8 USS Flat Washer Zinc (Qty 1)
- 25 Seat Spring (Qty 1)
- 26 Seat Strap with Buckles (Qty 1)
- 43 3/8-16 Centerlock Half Nut (Qty 1)
- 44 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 45 5/16-18 Nylon Flange Nut (Qty 3)
- 46 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 47 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 48 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 49 3/8 USS Flat Washer Zinc (Qty 1)
- 50 Brake Lever Spacer (Qty 1)
- 51 Bronze Bushing SF-1220-8 (Qty 1)
- 52 Brake Cable Extension Plate (Qty 1)
- 53 Brake Load Balancer Weldment (Qty 1)
- 54 Load Balanced Brake Handle With Grip (Qty 1)
- 56 RH Arm rest -Selfskin Front Adj for 071-6065-22 (Qty 1)
- 57 LH Armrest -Selfskin Front Adj for 071-6065-22 (Qty 1)
- 58 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 59 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 60 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 61 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 62 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 63 OBSOLETE USE 071-6063-00 (Qty 1)
- 64 Back Cover for 071-6065-25 (Qty 1)
- 65 Cushion Cover for 071-6065-25 (Qty 1)
- 68 10-24 Nylon Insert Locknut Zin (Qty 2)
- 69 Light Plug (Qty 1)
- 70 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 71 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 72 PTO Engager-Switch for Blades (Qty 1)
- 73 Ignition Switch (Qty 1)
- 74 2023 Control Panel--Orange (Qty 1)
- 75 Tachometer-Kohler/Yamaha EFI (Qty 1)
- 77 Tachometer-N310-0100-1018 (Qty 1)
- 78 4-Way Key Switch (Qty 1)
- 79 2019 Relay Cap Kit (Qty 1)
- 80 2019 Relay Terminal (Qty 1)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 8Regular price $19.89 USDRegular priceUnit price per
-
2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
345#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
448#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
6#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
1621#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
1722#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
1823#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
192449#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
2025#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
26#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
43#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
44#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
46#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
47#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
50#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
51#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
52#039-0170-00
Brake Cable Extension Plate
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
53#039-0171-00
Brake Load Balancer Weldment
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
54#069-1051-00
Load Balanced Brake Handle With Grip
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
56#071-6065-11
RH Arm rest -Selfskin Front Adj for 071-6065-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
57#071-6065-12
LH Armrest -Selfskin Front Adj for 071-6065-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
58#071-6065-05
Weight Adjustment Knob for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
59#071-6065-06
SEAT RAILS for 071-6065-00/071-6065-22
Qty Used: 1Regular price $92.87 USDRegular priceUnit price per
-
60#071-6065-07
Seat Switch for 071-6065-00/071-6065-22
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
61#071-6065-10
Recliner Adjust Knob for 071-6065-00/71-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
62#071-6065-13
Bellows w/Hardware for 071-6065-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
63#071-6065-14
OBSOLETE USE 071-6063-00
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
65#071-6065-18
Back Cover for 071-6065-25
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
65#071-6065-18
Cushion Cover for 071-6065-25
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per -
68#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
69#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
70#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
71#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
72#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
73#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
74#079-3461-00
2023 Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
75#083-4050-00
Tachometer-Kohler/Yamaha EFI
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
77#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
78#077-8078-00
4-Way Key Switch
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
79#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
80#086-1202-19
2019 Relay Terminal
Qty Used: 1Regular price $23.34 USDRegular priceUnit price per
