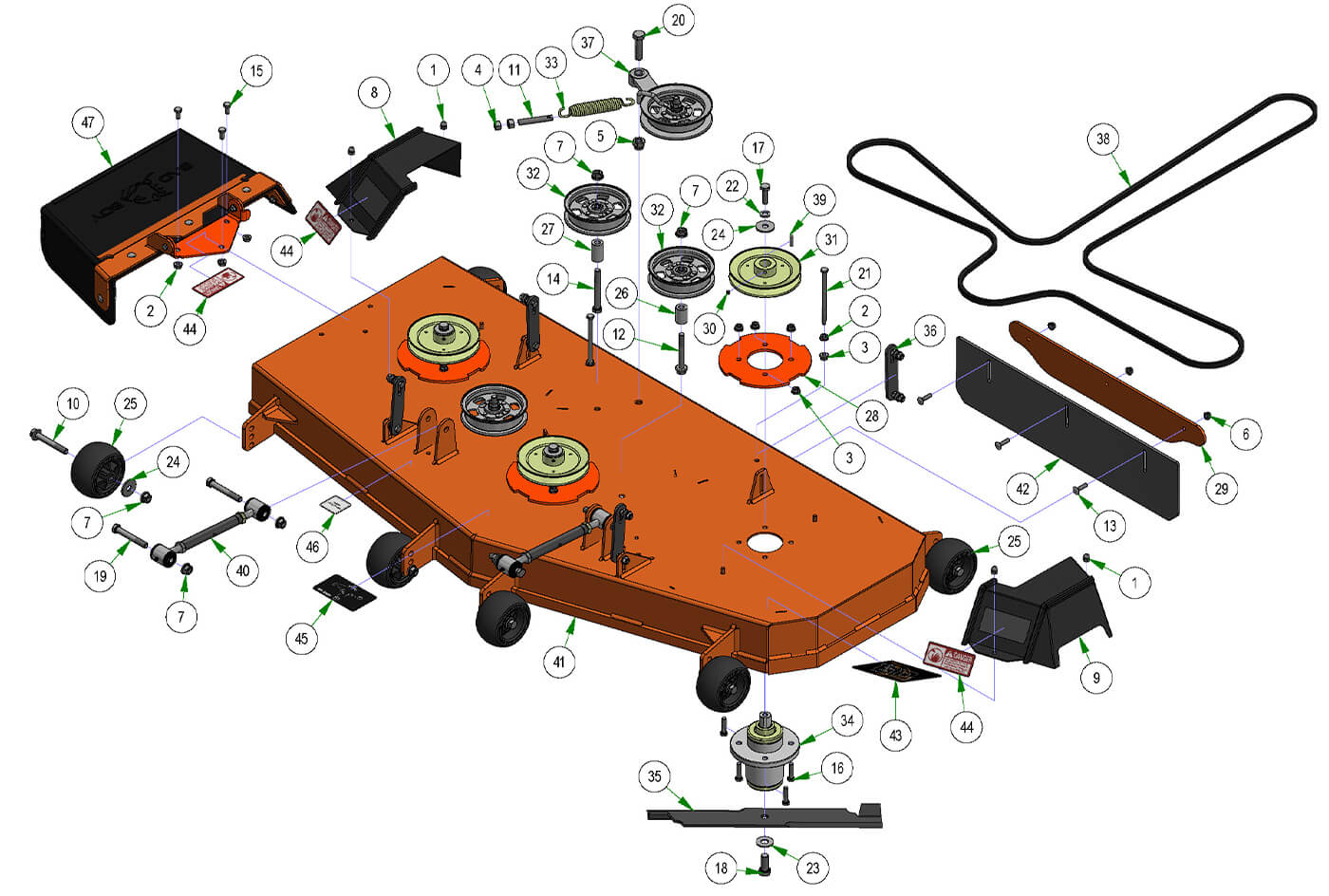

60" Deck
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 5)
- 3 3/8 Nylock Flange Nut (Qty 14)
- 4 1/2-13 Hex Nuts Zinc (Qty 2)
- 5 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 6 5/16-18 Nylon Flange Nut (Qty 3)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 13)
- 8 RH Pulley Cover 54"/60" (Qty 1)
- 9 LH Pulley Cover 54"/60" (Qty 1)
- 10 Deck Wheel Bolt (Qty 6)
- 11 All Thread (Qty 1)
- 12 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 13 5/16-18 X 1-1/4 Carriage Bolt (Qty 3)
- 14 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 15 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 16 3/8 x 1 1/2 Bolt (Qty 12)
- 17 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 18 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 19 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 21 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 22 1/2 Lockwasher Zinc (Qty 3)
- 23 5/8 Flat Washer (Qty 3)
- 24 1/2 Belleville Washer #K2000-G (Qty 9)
- 25 Deck Wheel (Qty 6)
- 26 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 27 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 28 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 29 2023 4' & 5' Striping Kit Plate--Orange (Qty 1)
- 30 5/16-24 x 1/4 Set Screw (Qty 3)
- 31 6 1/4 Spindle Deck Pulley (Qty 3)
- 32 5 3/4 Idler Pulley-Capitol (Qty 3)
- 33 2015 Deck Idler Spring (Qty 1)
- 34 Commercial Cast Iron Spindle (Qty 3)
- 35 60" High Lift Blade (Qty 3)
- 36 MZ/ZT Deck Hanger Assembly (Qty 4)
- 37 Maverick HD & Down Deck Idler Assembly (Qty 1)
- 38 60 Pup/Lightning/ZT/Mav/Avenger/ - 54 Rebel/Rogue (Qty 1)
- 39 1/4 x 1 Square Key (Qty 3)
- 40 Toplink (Qty 2)
- 41 2025 60"x5" Deck--Orange (Qty 1)
- 42 2023 ZT Stripe Kit Rubber (Qty 1)
- 43 60" Grip Deck Decal (Qty 1)
- 44 Danger Decal-Spindle/Discharge (Qty 3)
- 45 Deck Belt Route Decal (Qty 1)
- 46 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 47 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $1.49 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
4#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
7#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 13Regular price $1.39 USDRegular priceUnit price per
-
8#014-5020-00
2021 Maverick 54"/60" RH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
9#014-5021-00
2021 Maverick 54"/60" LH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
10#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 6Regular price $5.89 USDRegular priceUnit price per
-
11#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
12#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
13#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
14#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
15#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
16#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
17#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
18#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
19#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
21#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
22#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
23#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
24#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 9Regular price $4.69 USDRegular priceUnit price per
-
25#022-1000-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
26#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
27#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
28#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
29#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
30#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
31#033-6004-00
6 1/4 Spindle Deck Pulley
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
32#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
33#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
34#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
35#038-6060-00
60\" High Lift Blade
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
36#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
38#041-1650-00
60 Pup/Lightning/ZT/Mav/Avenger/ - 54 Rebel/Rogue
Qty Used: 1Regular price $84.99 USDRegular priceUnit price per
-
39#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
-
42#084-5006-00
2023 ZT Stripe Kit Rubber
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
43#091-0534-00
60\" Grip Deck Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
44#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
45#091-3309-00
Deck Belt Route Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
46#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
47#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
