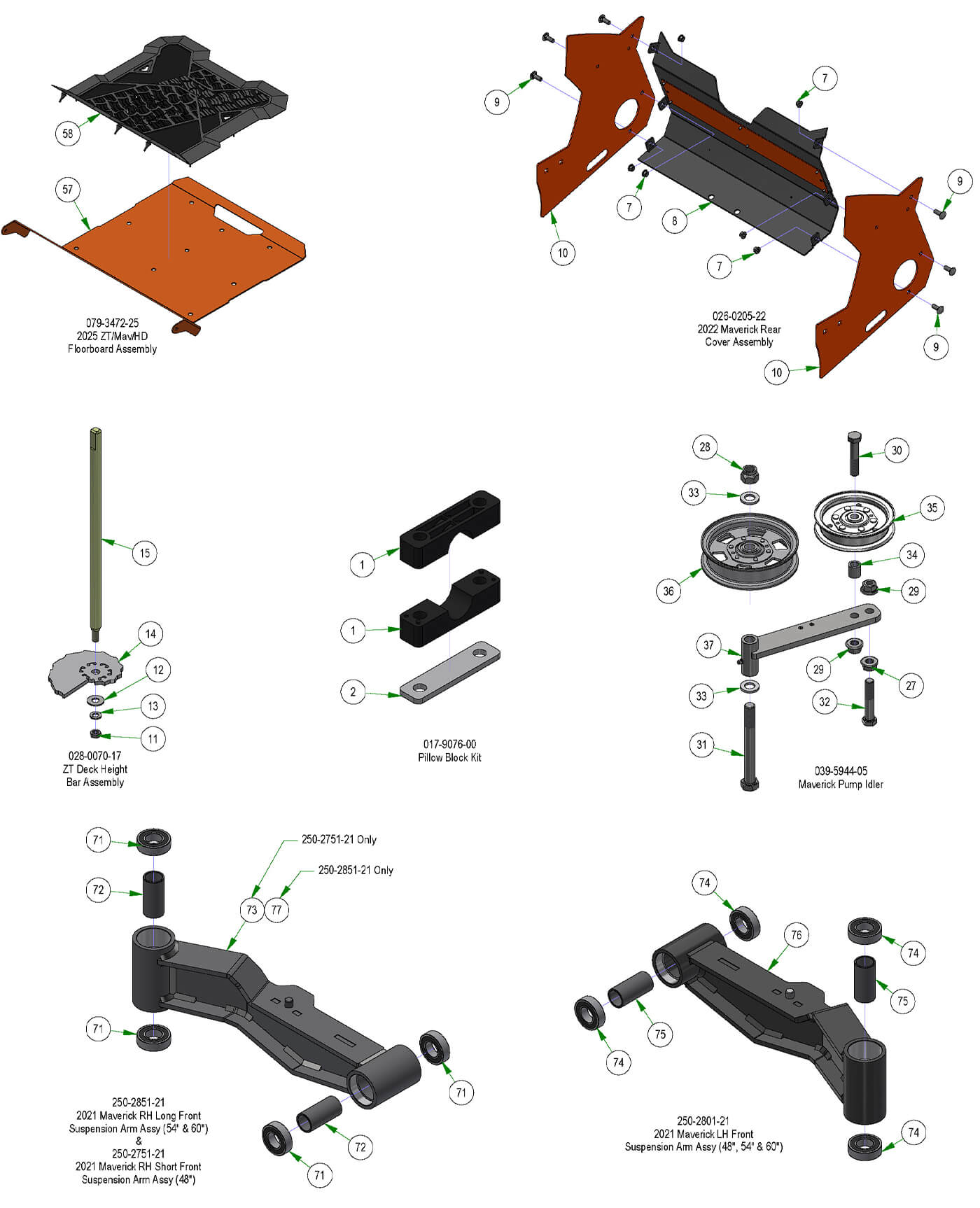

Frame Subassemblies
Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 8)
- 2 2017 Magnum Pillow Block-Metal Plate (Qty 4)
- 7 5/16-18 Nylon Flange Nut (Qty 6)
- 8 2021 Maverick Rear Cover Assembly (Qty 1)
- 9 3/8 x 1 Carriage Bolt (Qty 6)
- 10 Rear Cover Side Plate--Orange (Qty 2)
- 11 3/8-24 Hex Nut Zinc (Qty 1)
- 12 3/8 USS Flat Washer Zinc (Qty 1)
- 13 3/8 Lockwasher Zinc (Qty 1)
- 14 Deck Height Cam Plate (Qty 1)
- 15 2017 Deck Height Dial Rod ZT (Qty 1)
- 27 1/2-13 Hex Fange Nuts Zinc w/ (Qty 1)
- 28 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 29 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 30 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 1)
- 31 5/8 x 5 1/2 Bolt (Qty 1)
- 32 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 33 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 34 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 35 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 36 2016-5 3/4 Idler Pulley-5/8 (Qty 1)
- 37 Idler Bracket (Qty 1)
- 71 Caster Bearing (Qty 4)
- 72 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 73 I-Beam Front Arm Short-RH--Painted (Qty 1)
- 74 Caster Bearing (Qty 4)
- 75 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 76 I-Beam Front Arm-LH--Painted (Qty 1)
- 77 I-Beam Front Arm Long-RH--Painted (Qty 1)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 8Regular price $19.89 USDRegular priceUnit price per
-
2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
7#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
8#014-5300-00
2021 Maverick Rear Cover Assembly
Qty Used: 1Regular price $192.39 USDRegular priceUnit price per
-
9#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
10#026-0226-00
Rear Cover Side Plate--Orange
Qty Used: 2Regular price $39.99 USDRegular priceUnit price per
-
11#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
12#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
13#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
14#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
15#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
27#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
28#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
29#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
30#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
31#018-6016-00
5/8 x 5 1/2 Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
32#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
33#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
34#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
35#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
36#033-8000-00
2016-5 3/4 Idler Pulley-5/8
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
37#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
7174#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
7275#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
73#250-2751-00
I-Beam Front Arm Short-RH--Painted
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
76#250-2801-00
I-Beam Front Arm-LH--Painted
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
77#250-2851-00
I-Beam Front Arm Long-RH--Painted
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
