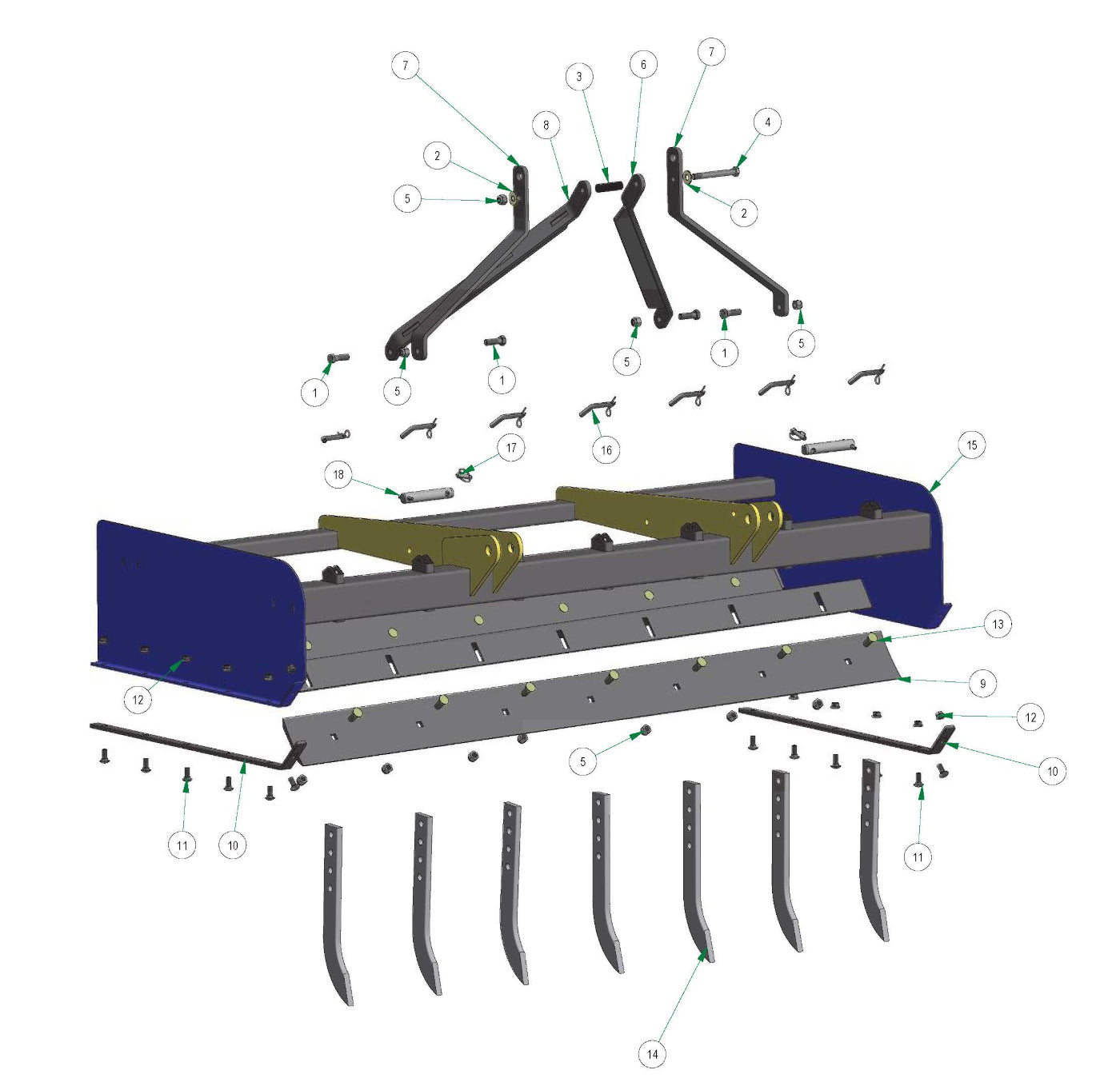

7' Land Grader Parts
Parts Index
- 1 5/8-11 X 2 HEX C/S (GR 5) ZC (Qty 4)
- 2 5/8 Flat Washer (Qty 2)
- 3 5/8 x 1-1/2" Spacer (Qty 1)
- 4 5/8 x 5 1/2 Hex Bolt (Qty 1)
- 5 5/8 Nylock Nut (Qty 19)
- 7 Cat. 2 Front Support A-Arm Short (Qty 2)
- 9 84" Box Blade (Qty 2)
- 10 2022 Land Grader Skid Brkt (Qty 2)
- 11 1/2 x 1 1/4 Carriage Bolt (Qty 12)
- 12 1/2-13 Mechanical Lock Nut Grade F (Qty 12)
- 14 Ripper Shank (Box Blade) (Qty 7)
- 16 1/2" x 4" L-Shaped Bent Pin (Qty 7)
- 17 7/16" x 2" Round Lynch Pin (Qty 2)
- 18 1 1/8" x 4" Clevis Pin w/roll pin (Qty 2)
-

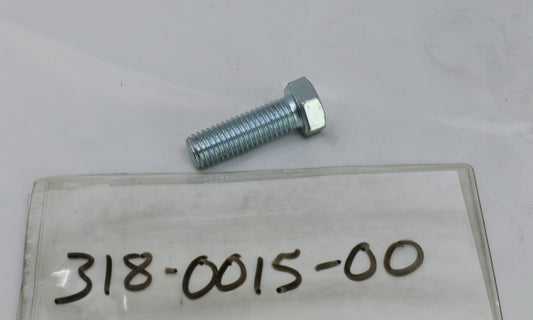

1#318-0015-00
5/8-11 X 2 HEX C/S (GR 5) ZC
Qty Used: 4Regular price $9.99 USDRegular priceUnit price per
-
2#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
3#325-0003-00
5/8 x 1-1/2" Spacer
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
5#313-0002-00
5/8 Nylock Nut
Qty Used: 19Regular price $3.99 USDRegular priceUnit price per
-
9#338-0009-00
84" Box Blade
Qty Used: 2Regular price $189.99 USDRegular priceUnit price per
-
10#339-0138-00
2022 Land Grader Skid Brkt
Qty Used: 2Regular price $37.99 USDRegular priceUnit price per
-
11#018-3003-00
1/2 x 1 1/4 Carriage Bolt
Qty Used: 12Regular price $0.89 USDRegular priceUnit price per
-
12#013-0010-00
1/2-13 Mechanical Lock Nut Grade F
Qty Used: 12Regular price $1.00 USDRegular priceUnit price per
-
14#338-0006-00
Ripper Shank (Box Blade)
Qty Used: 7Regular price $39.99 USDRegular priceUnit price per
-
16#344-2007-00
1/2" x 4" L-Shaped Bent Pin
Qty Used: 7Regular price $9.99 USDRegular priceUnit price per
-
17#340-0014-00
7/16" x 2" Round Lynch Pin
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
18#344-2008-00
1 1/8" x 4" Clevis Pin w/Keeper
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
