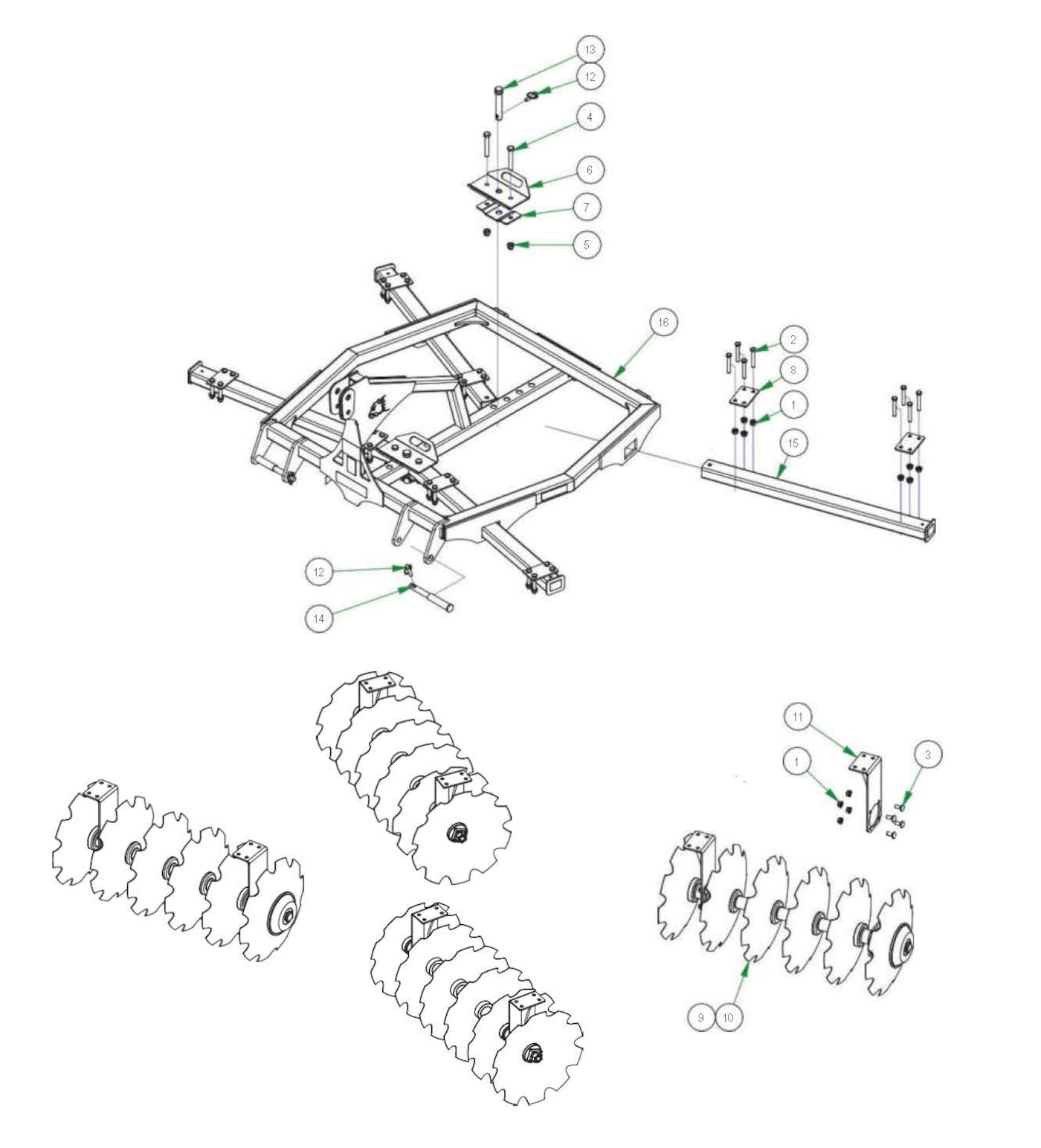

6'/7' Disc Harrow Parts
Parts Index
- 1 1/2-13 Nylon Insert Flange Nut (Qty 64)
- 2 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 32)
- 3 1/2 x 1 1/4 Carriage Bolt (Qty 32)
- 4 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 4)
- 5 5/8 Nylock Nut (Qty 4)
- 10 7' Disc Gang Assembly (Qty 4)
- 12 7/16" x 2" Round Lynch Pin (Qty 4)
- 14 Category 1/2 Draw Pin (Qty 2)
- 15 6'/7' Gang Tube Weldment (Qty 4)
