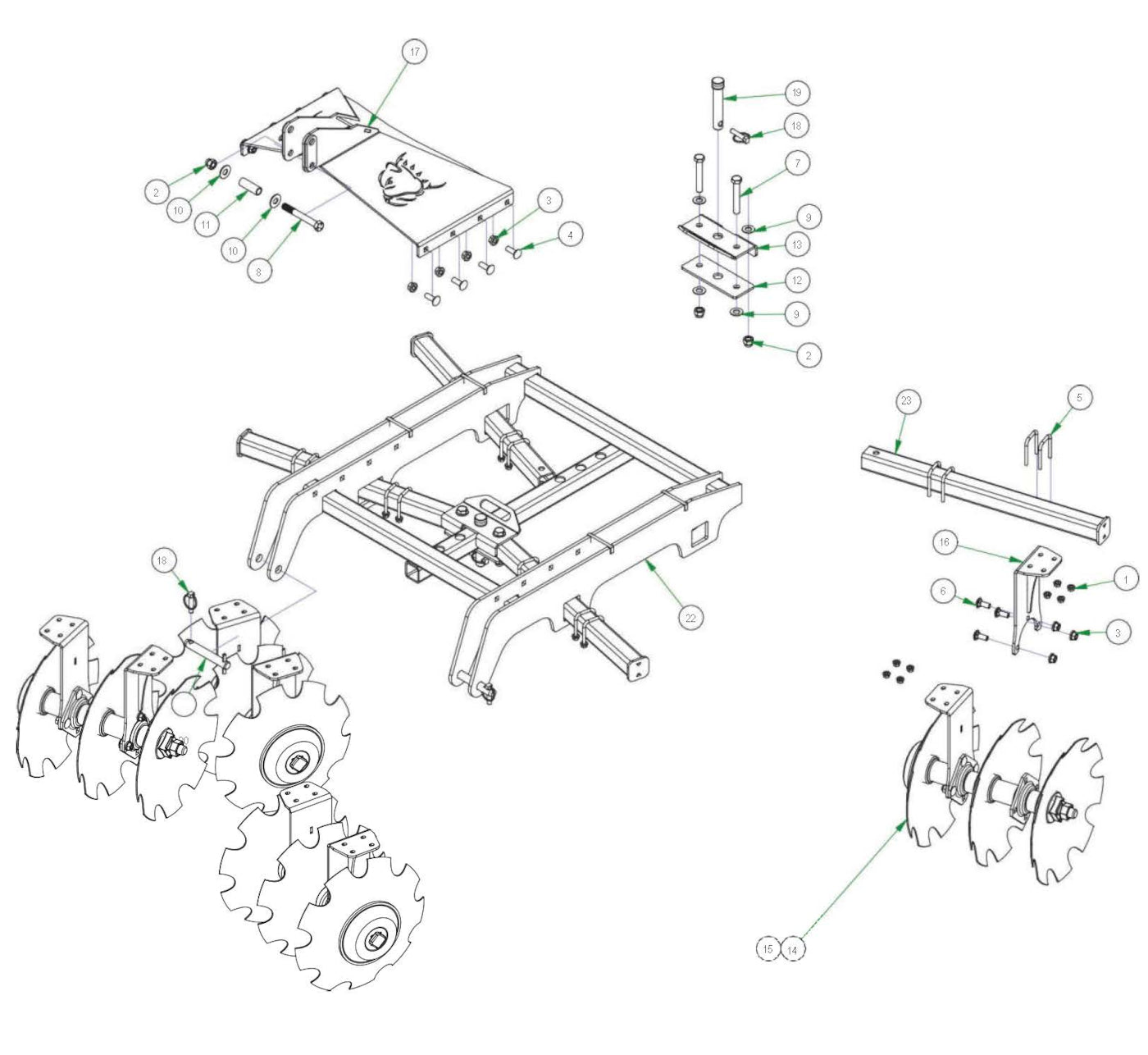

4'/5' Disc Harrow Parts
Parts Index
- 1 3/8-16 Hex Flange Nut without (Qty 32)
- 2 5/8-11 Nylon Insert Locknut Zi (Qty 5)
- 3 1/2-13 Nylon Insert Flange Nut (Qty 32)
- 4 1/2 x 1 1/2 Carriage Bolt (Qty 8)
- 5 U-bolt for Foot Assist (Qty 16)
- 6 1/2 x 1 1/4 Carriage Bolt (Qty 24)
- 7 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 4)
- 8 5/8-11 X 5 GR 5 Hex Bolts Zinc (Qty 1)
- 9 5/8" Flat Washer SAE Spec Grade 8 (Qty 8)
- 10 5/8 Flat Washer (Qty 2)
- 11 Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter (Qty 1)
- 18 7/16" x 2" Round Lynch Pin (Qty 4)
-
1#013-5203-00
3/8-16 Hex Flange Nut without
Qty Used: 32Regular price $0.69 USDRegular priceUnit price per
-
2#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 5Regular price $1.19 USDRegular priceUnit price per
-
3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 32Regular price $1.39 USDRegular priceUnit price per
-
4#018-0008-00
1/2 x 1 1/2 Carriage Bolt
Qty Used: 8Regular price $1.39 USDRegular priceUnit price per
-
5#018-2016-00
U-bolt for Foot Assist
Qty Used: 16Regular price $2.99 USDRegular priceUnit price per
-
6#018-3003-00
1/2 x 1 1/4 Carriage Bolt
Qty Used: 24Regular price $0.89 USDRegular priceUnit price per
-
7#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 4Regular price $3.69 USDRegular priceUnit price per
-
8#018-6015-00
5/8-11 X 5 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $2.72 USDRegular priceUnit price per
-
9#019-0009-00
5/8" Flat Washer SAE Spec Grade 8
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
10#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
11#325-0004-00
Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
18#340-0014-00
7/16" x 2" Round Lynch Pin
Qty Used: 4Regular price $9.99 USDRegular priceUnit price per
