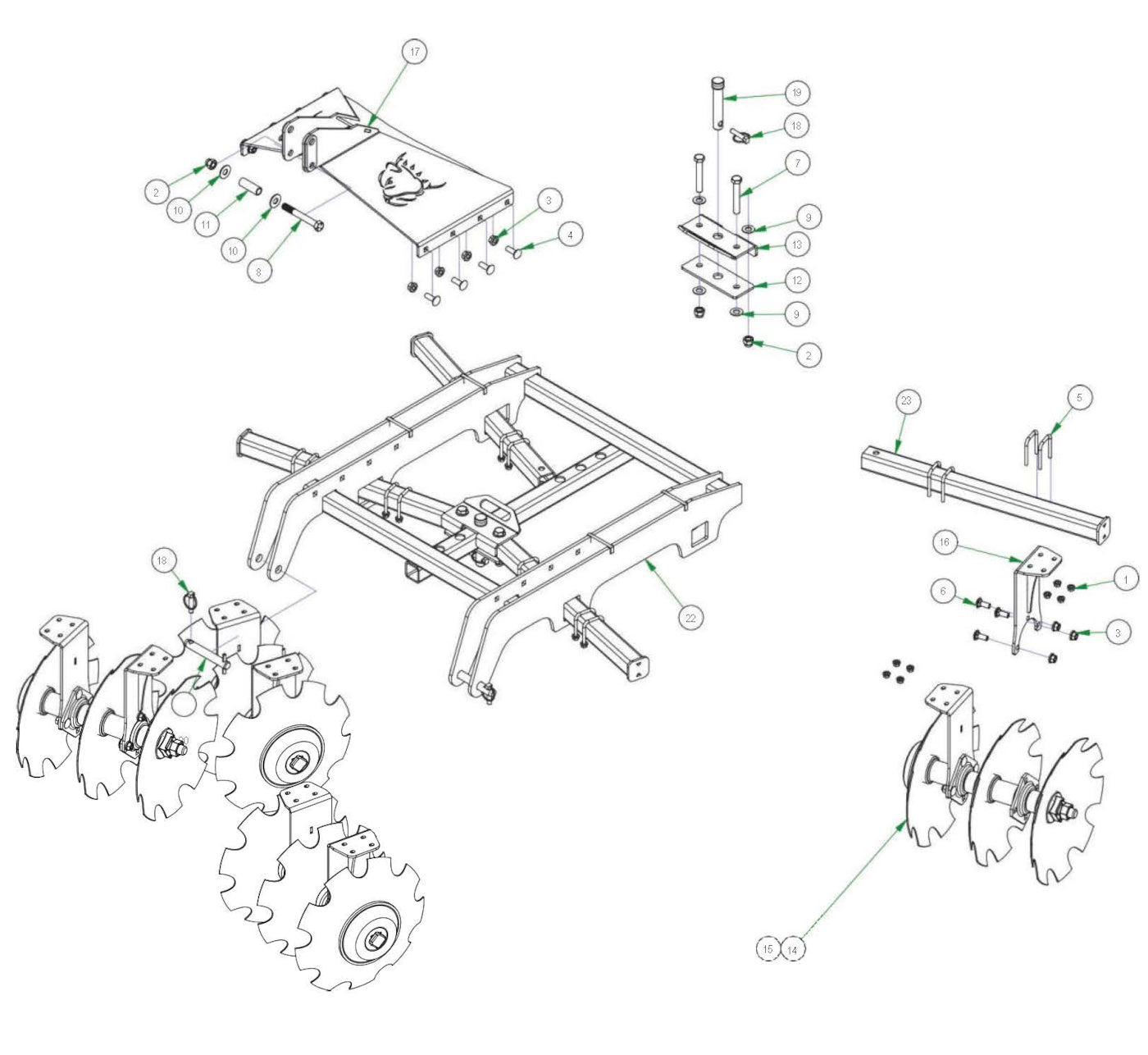

4'/5' Disc Harrow Parts
Parts Index
- 1 3/8-16 Hex Flange Nut without (Qty 32)
- 2 5/8-11 Nylon Insert Locknut Zi (Qty 5)
- 3 1/2-13 Nylon Insert Flange Nut (Qty 32)
- 4 1/2 x 1 1/2 Carriage Bolt (Qty 8)
- 5 U-bolt for Foot Assist (Qty 16)
- 6 1/2 x 1 1/4 Carriage Bolt (Qty 24)
- 7 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 4)
- 8 5/8-11 X 5 GR 5 Hex Bolts Zinc (Qty 1)
- 9 5/8" Flat Washer SAE Spec Grade 8 (Qty 8)
- 10 5/8 Flat Washer (Qty 2)
- 11 Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter (Qty 1)
- 18 7/16" x 2" Round Lynch Pin (Qty 4)
