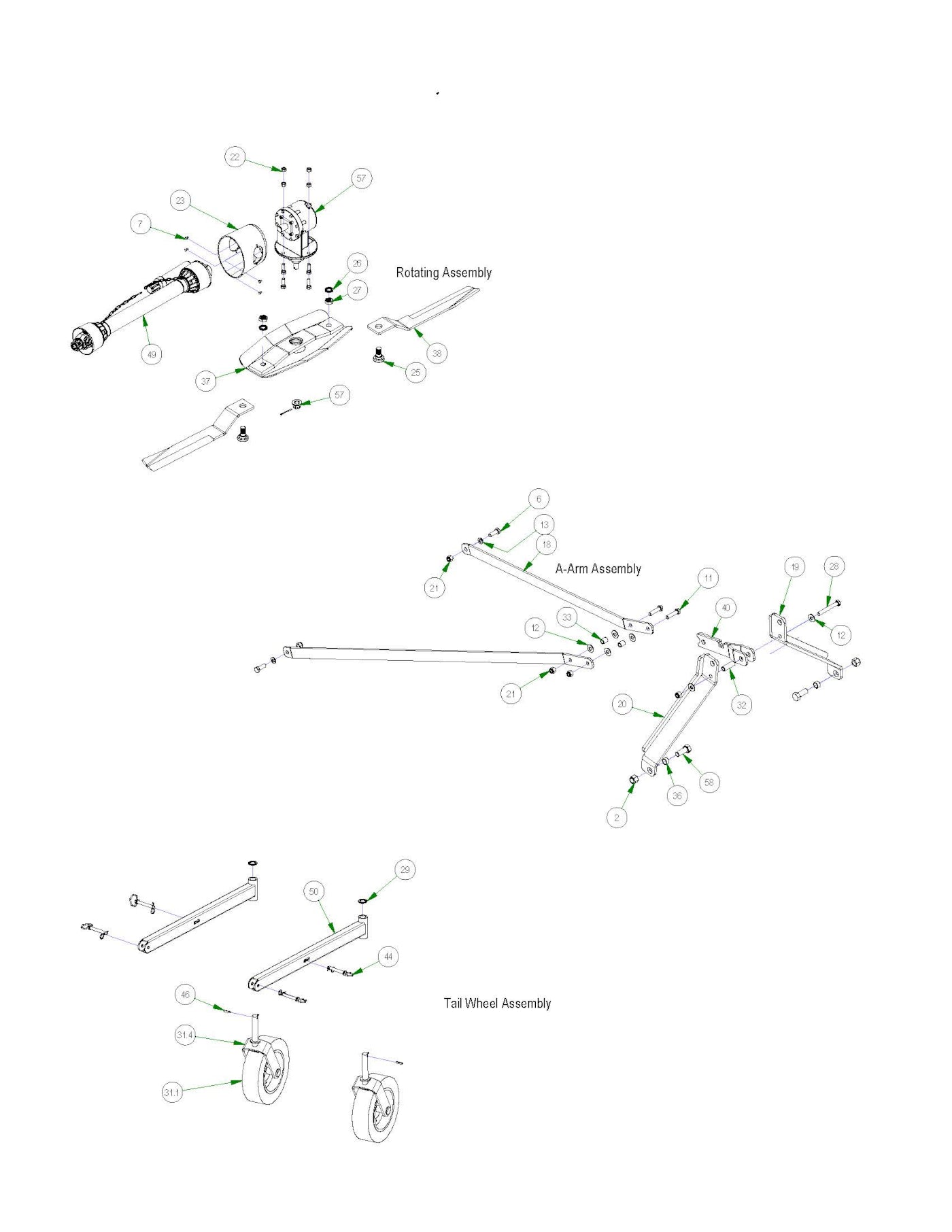

Gearbox, A-Arms, and Tailwheel Parts
Parts Index
- 22 5/8 Center Lock Nut GrC-Fine (Qty 4)
- 7 5/16-18 x 1/2 Hex Bolt-Grade 5 (Qty 4)
- 23 PTO Guard (Qty 1)
- 26 Blade Bolt Lockwasher (Qty 2)
- 27 Blade Nut Only (Qty 2)
- 38 7' Rotary Cutter Blade (Qty 2)
- 25 Blade Bolt Only (Qty 2)
- 37 7' Infinity Stump Jumper (Qty 1)
- 21 5/8 Nylock Nut (Qty 5)
- 13 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 11 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 2)
- 12 5/8 Flat Washer (Qty 6)
- 21 5/8 Nylock Nut (Qty 5)
- 33 Linkage Short Spacer (Qty 2)
- 28 5/8 x 4 3/4 Hex Bolt (Qty 1)
- 12 5/8 Flat Washer (Qty 6)
- 40 4', 5', 6' Top Link Weldment (Qty 1)
- 32 Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter (Qty 1)
- 36 Cat 1 A-Arm Bushing (Qty 2)
- 29 1 1/4" Flat Washer (Qty 2)
- 44 4" x 5/8" Lynch Pin (Qty 4)
- 46 Roll Pin for 2015 & up Tail Wheel Assembly (Qty 2)
- 31.4 Fork-2015 5' and 6' Cutters (and up) (Qty 1)
-
22#313-0005-00
5/8 Center Lock Nut GrC-Fine
Qty Used: 4Regular price $1.00 USDRegular priceUnit price per
-
7#018-0057-00
5/16-18 x 1/2 Hex Bolt-Grade 5
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
-
26#318-0001-02
Blade Bolt Lockwasher
Qty Used: 2Regular price $11.99 USDRegular priceUnit price per
-
27#318-0001-03
Blade Nut Only
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
38#338-0004-00
7' Rotary Cutter Blade
Qty Used: 2Regular price $79.99 USDRegular priceUnit price per
-
25#318-0001-01
Blade Bolt Only
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
37#337-0009-00
7' Infinity Stump Jumper
Qty Used: 1Regular price $299.99 USDRegular priceUnit price per
-
2121#313-0002-00
5/8 Nylock Nut
Qty Used: 5Regular price $3.99 USDRegular priceUnit price per
-
13#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
11#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 2Regular price $2.29 USDRegular priceUnit price per
-
1212#019-5038-00
5/8 Flat Washer
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
33#325-0002-00
Linkage Short Spacer
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
28#318-0020-00
5/8 x 4 3/4 Hex Bolt
Qty Used: 1Regular price $5.99 USDRegular priceUnit price per
-
40#339-0057-00
4', 5', 6' Top Link Weldment
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
32#325-0004-00
Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
36#332-0007-00
Cat 1 A-Arm Bushing
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
29#319-0001-00
1 1/4" Flat Washer
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
44#340-0011-00
4" x 5/8" Lynch Pin
Qty Used: 4Regular price $14.99 USDRegular priceUnit price per
-
46#344-0001-00
Roll Pin for 2015 & up Tail Wheel Assembly
Qty Used: 2Regular price $5.99 USDRegular priceUnit price per
-

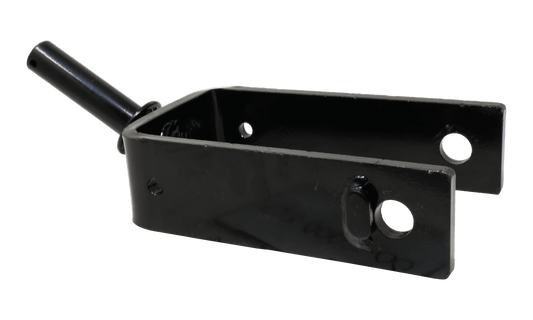

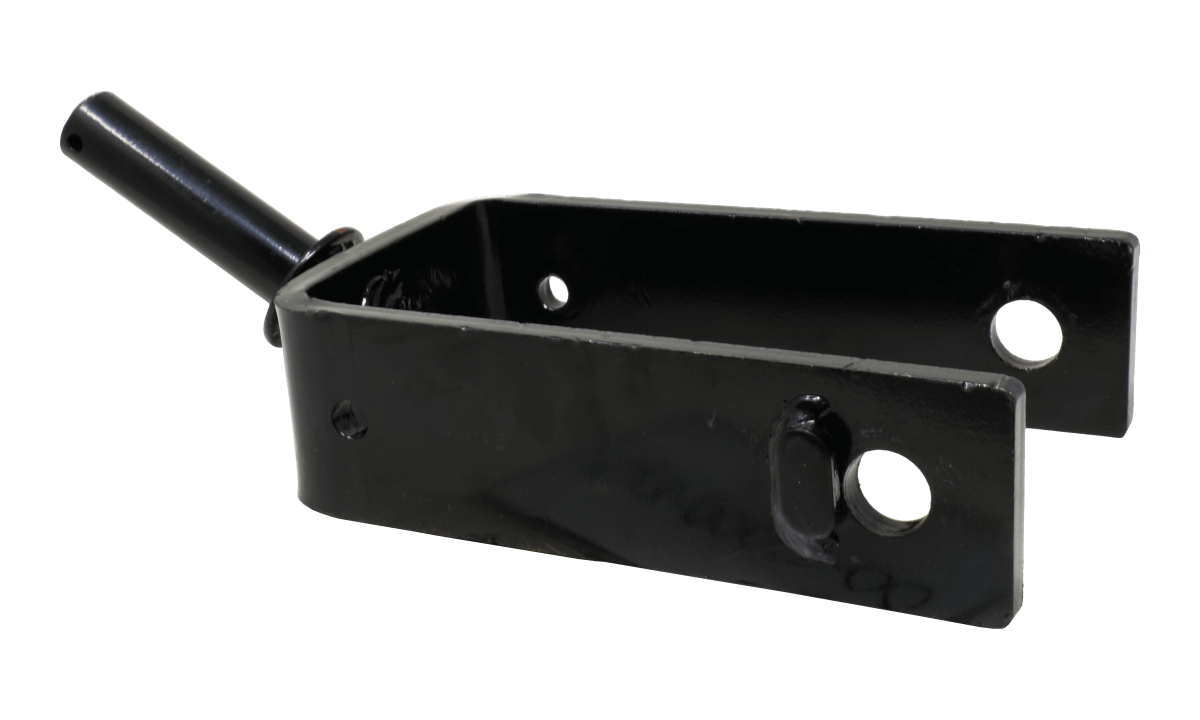

31.4#323-0002-00
Fork-2015 5' and 6' Cutters (and up)
Qty Used: 1Regular price $106.14 USDRegular priceUnit price per
