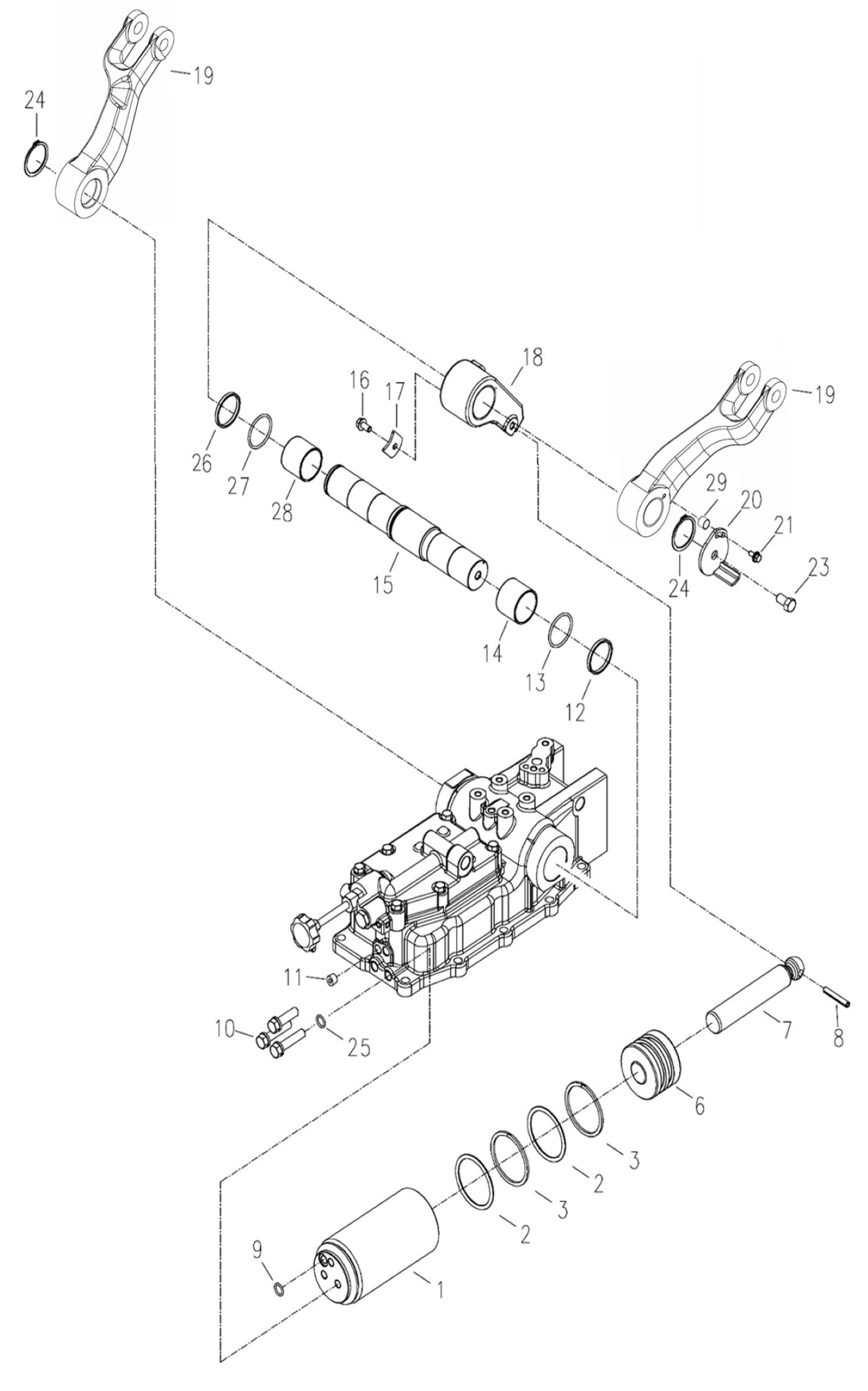

Piston Assembly
Parts Index
- 1 CYLINDER (Qty 1)
- 2 O RING (Qty 2)
- 3 BACKUP-RING (Qty 2)
- 6 PISTON (Qty 1)
- 8 PIN, SPRING (8-50) (Qty 1)
- 10 HEXAGON HEAD BOLT (Qty 3)
- 11 PLUG ASS'Y (Qty 1)
- 12 RING (Qty 1)
- 13 O-RING (D50) (Qty 1)
- 14 BUSH (Qty 1)
- 15 SHAFT, LIFT LINK (Qty 1)
- 16 HEX FLANGE BOLT (Qty 1)
- 17 PLATE (Qty 1)
- 18 CRANK, LIFT (Qty 1)
- 20 CAMP ASSY (Qty 1)
- 21 HEX FLANGE BOLT (Qty 1)
- 23 BOLT (Qty 1)
- 24 SNAP RING, SHAFT (F 45) (Qty 2)
- 27 O-RING, DYNAMIC (F45) (Qty 1)
- 28 COVER, HYD CYLINDER (Qty 1)
- 29 COLLAR (Qty 1)
-
-
-
3#TA00046957A
BACKUP-RING
Qty Used: 2Regular price $58.99 USDRegular priceUnit price per
-
-
8#22351-080050
PIN, SPRING (8-50)
Qty Used: 1Regular price $1.45 USDRegular priceUnit price per
-
10#26156-120552
HEXAGON HEAD BOLT
Qty Used: 3Regular price $5.09 USDRegular priceUnit price per
-
11#TA00045690A
PLUG ASS'Y
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
-
13#24321-000500
O-RING (D50)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
-
15#TA00033089C
SHAFT, LIFT LINK
Qty Used: 1Regular price $307.99 USDRegular priceUnit price per
-
16#26106-080162
HEX FLANGE BOLT
Qty Used: 1Regular price $0.59 USDRegular priceUnit price per
-
-
18#TA00033093B
CRANK, LIFT
Qty Used: 1Regular price $230.99 USDRegular priceUnit price per
-
-
21#26106-060202
HEX FLANGE BOLT
Qty Used: 1Regular price $0.39 USDRegular priceUnit price per
-
-
24#22242-000450
SNAP RING, SHAFT (F 45)
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
27#24321-000450
O-RING, DYNAMIC (F45)
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
28#TA00033099A
COVER, HYD CYLINDER
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
