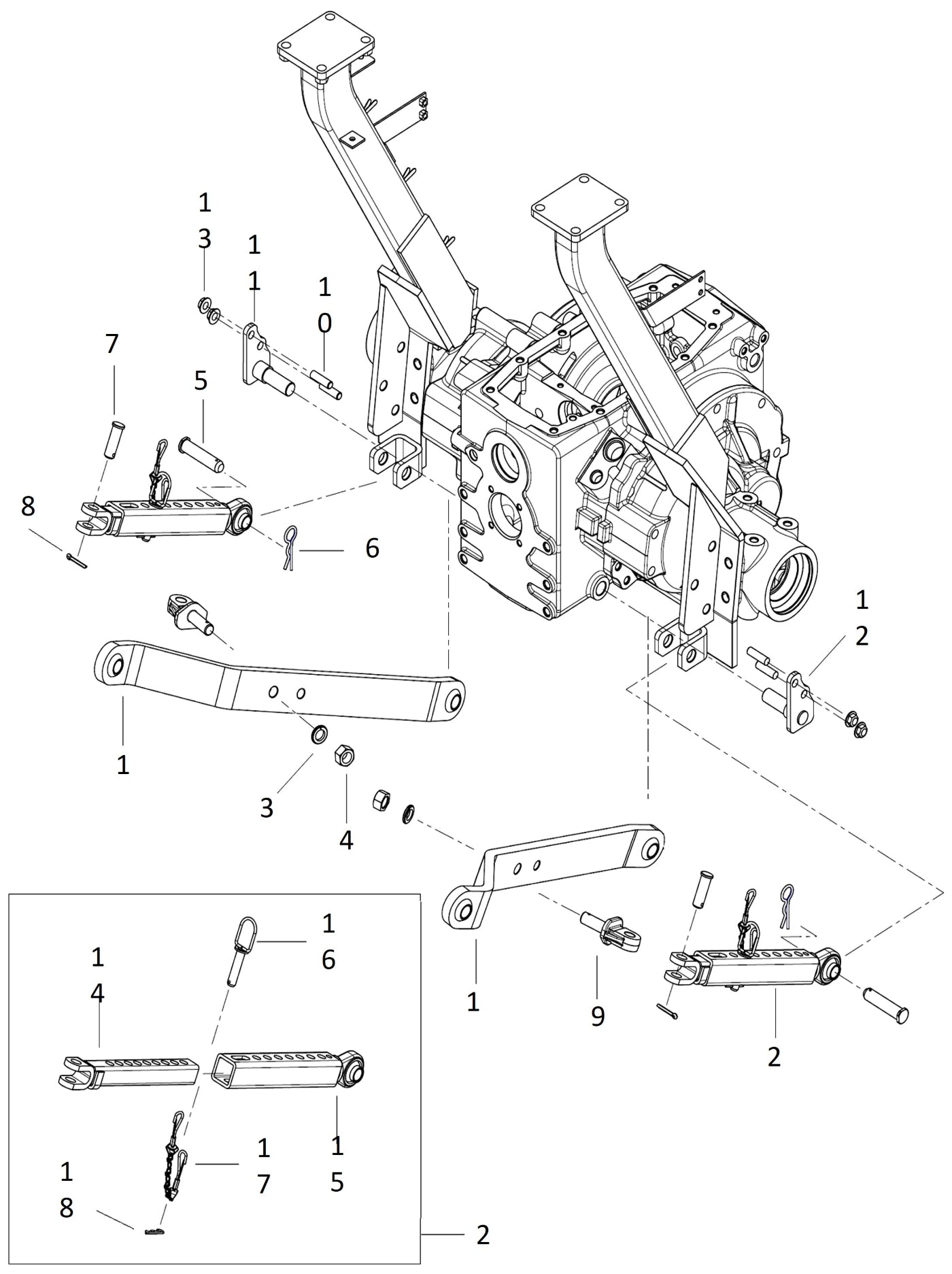

Lower Link
Parts Index
- 2 CHECK BAR, same as the TA00041947E (dark blue/blac (Qty 2)
- 3 WASHER, SPRING (F 18) for BB2024H/BB3026H/BB4025H/ (Qty 2)
- 4 NUT (Qty 2)
- 7 PIN, CHECK CHAIN (Qty 2)
- 8 PIN , COTTER (5-32) (Qty 2)
- 10 STUD BOLT (Qty 4)
- 11 LOWER LINK PIN LH ASSY (Qty 1)
- 13 NUT for BB4025H/BB4035H/BB4035CH (Qty 4)
- 15 CHECK BAR, FRONT (Qty 2)
- 17 CONNECT LINK (Qty 2)
- 18 PIN , SNAP (4F) (Qty 2)
-
2#TA00064054A
CHECK BAR, same as the TA00041947E (dark blue/blac
Qty Used: 2Regular price $329.99 USDRegular priceUnit price per
-
3#22217-180000
WASHER, SPRING (F 18) for BB2024H/BB3026H/BB4025H/
Qty Used: 2Regular price $1.25 USDRegular priceUnit price per
-
-
7#FTF0090000A4
PIN, CHECK CHAIN
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
8#22417-500320
PIN , COTTER (5-32)
Qty Used: 2Regular price $0.35 USDRegular priceUnit price per
-
-
11#TA00039356B
LOWER LINK PIN LH ASSY
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
13#26367-120002
NUT for BB4025H/BB4035H/BB4035CH
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
15#TA00064056A
CHECK BAR, FRONT
Qty Used: 2Regular price $299.99 USDRegular priceUnit price per
-
17#FBF0060000A4
CONNECT LINK
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
18#22360-140000
PIN , SNAP (4F)
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
